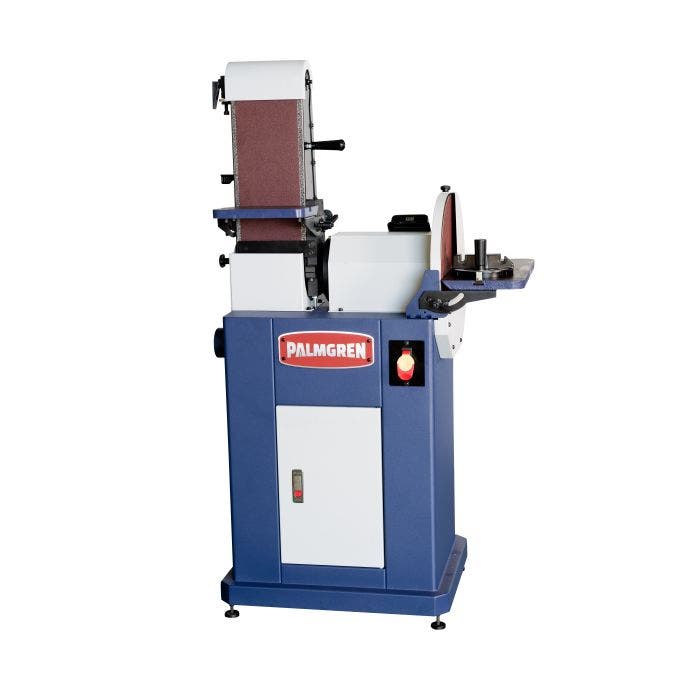

Palmgren 9681108 | 6" X 48" Belt 14" Disc Floor Finishing Machine

Simplify all your finishing needs! Palmgren 6" x 48" Belt, 14" Disc Finishing Machine offers a combination of exceptional versatility and high efficiency. Designed around actual end user input; this differentiates our machine with meaningful features built around what the machine must do when it is in use to maximize user performance and safety. This 2 in 1 machine can handle a multitude of jobs: contour part finishing, flat stock finishing, polishing, grinding and deburring, handling virtually any finishing operation.

Palmgren - 9681108 - Features

• Powerful direct drive power train
• Adjustable guarding for both the belt and disc sections
• Single dust collection port for both sections for easy connection and cleaning
• Cast iron tilting worktables with a slot for miter gauge and easy to read trunnions
• Deluxe miter gauge ideal for plain and compound angles
• Heavy duty, fully enclosed steel stand with storage
• Safety lock out on/off switch
• BELT SECTION: Belt arm adjusts vertically, horizontally and any position in-between, Upper idler drum supported on both sides with bearings, Steel platen with replaceable graphite pad, Advanced easy belt tracking, Quick, easy belt changes, Belt section mounted directly to the motor shaft
• DISC SECTION: Fully machined and balanced steel disc, Disc mounted directly to the motor shaft
• Read our blog for more information

Palmgren - 9681108 - Specifications

Abrasive Finishing Type	Belt and Disc Grinders
AMPS	12.5/6.25
Belt Size	6" x 48"
Belt SFPM	2258
Belt Table Size	8-5/8" x 6"
Belt Width	6"
Country of Origin	TW
Disc Diameter	14"
Disc Speed RPM	1720
Disc Table	15-5/8" x 7-1/4"
Disc Table Tilt-Out Angle-Deg.	45 Degrees to 90 Degress
Dust Collection	Yes
Dust Collection Port Size-In.	4"
Hz	60
Idler Drum Size (In.)	3" x 6"
Motor HP	1.5
Phase	Single
Platen Size (In.)	6-1/4 x 16-3/4
Table Material	Aluminum
Voltage	115/230
Warranty	3 Year
UPC	726896811086
Product Height (in)	56
Product Length (in)	22
Product Width (in)	32
Product Weight (lbs)	230

Palmgren - 9681108 - Documents and Downloads

Palmgren 9681108 Manual

Click to View
