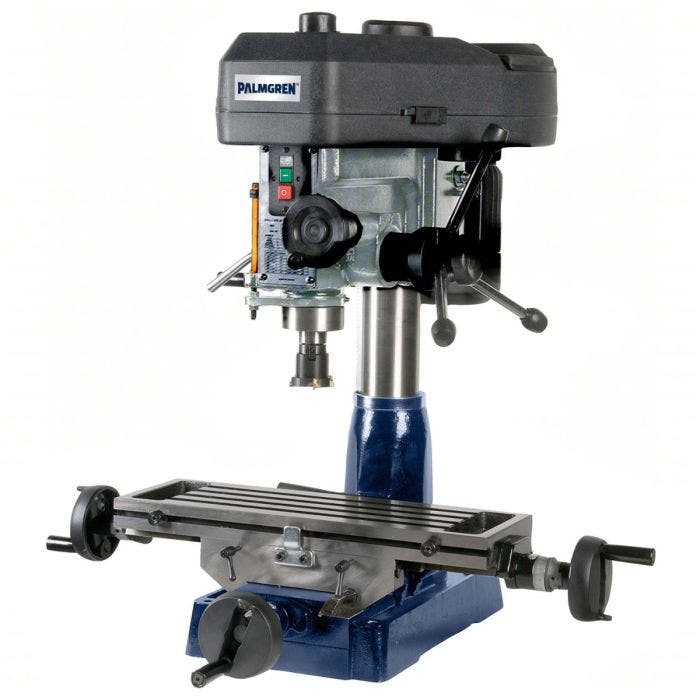

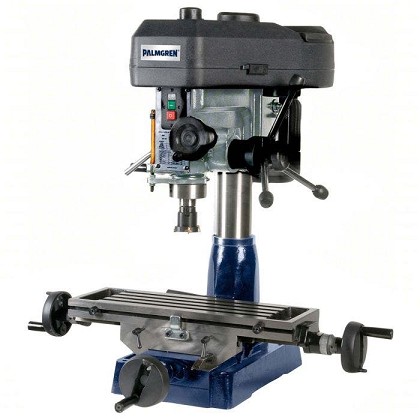

Palmgren 9680112 | 16 Inch 3/4 HP Mill/Drill Machine

Palmgren 12-Speed Mill Drill Model 9680112 is a ruggedly constructed machine providing accurate milling, drilling, slotting and boring capabilities. One-piece cast-iron head rotates 360° and travels vertically by rack and pinion. Hinged pulley cover allows fast and easy speed changes. A 3/4 HP, 1725 RPM, 115/230-volt, 60 Hz single-phase motor and 115v work lamp are included. Prewired for 115V.

Palmgren - 9680112 - Features

• 16” Swing
• Fully enclosed R-8 spindle has heavy-duty tapered thrust bearings at top and bottom of quill
• Large 23” x 7-3/8” table has dovetail ways with adjustable gibs and bronze lead screw nuts for accurate and rigid table positioning
• Table has four 1/2” T-slots, zero-setting handwheel dials with .001” graduations, adjustable stops for longitudinal feed and cross feed way cover.
• 12 Speeds: 115 to 2580RPM
• Adjustable depth stops with scale
• Draw Bar (7/16”-20) and Way Cover
• Spindle Stroke 3-3/8”
• Work Light
• Includes: Drill Chuck Arbor, 1/2" Chuck and Key, Face Mill Arbor, 2-1/2” Face Mill, R8/MT3 Adaptor, 6-pc R8 Collet Set

Palmgren - 9680112 - Specifications

Country of Origin	TW
Warranty	3 Year
UPC	726896801124
Unit of Measure	EA
Product Height (in)	45
Product Length (in)	29
Product Width (in)	28
Product Weight (lbs)	400
