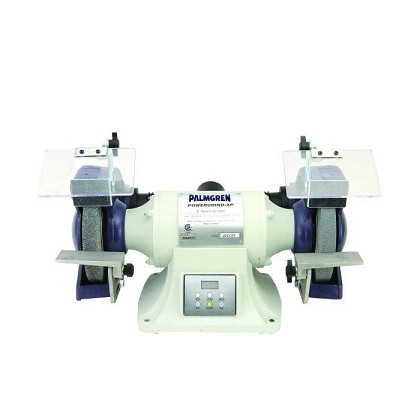

Palmgren 9682097 | 8" 1HP 115/240V Variable Speed Bench Grinder

Palmgren's line up of deluxe variable speed bench grinders deliver the power, precision and versatility to handle a wide range of finishing applications. At maximum rpm's they are built for heavy material removal, deburring and chamfering applications. At the lower rpm range they effectively handle the more delicate cleaning, polishing, sharpening and other finishing operations.

Palmgren - 9682097 - Features

• Equipped with the latest technology variable speed inverter delivering a broad range of continuous speeds to fit any application
• Powerful, heavy-duty capacitor motors provide additional torque and provide plenty of power at all speeds without any loss of rpm’s at full load
• LED speed readout with “soft” touch on/off and variable speed control pad. 3 hard speed switch settings 900 / 1800 / 3600 RPM for the 6” & 8” models and 900 / 1800 / 2400 RPM for the 10” model
• Press the high or low switch button on touch pad to variably adjust the speed up or down in 100 RPM increments
• Dynamically balanced rotors and sealed bearings to minimize vibration and ensure smooth running operation
• Extended wheel to wheel clearance
• Large adjustable tool rests
• Adjustable safety eye shields and spark guards
• Exclusive single port dust collection
• Unit fits Item # 9670101 tool stands
• Read our blog for more information

Palmgren - 9682097 - Specifications

Abrasive Finishing Type	Bench Grinders and Buffers
AMPS	45357
Arbor Hole	5/8"
Bench Grinder and Buffer Drive	Variable Speed
Country of Origin	TW
Dust Collection	Yes
Dust Collection Port Size-In.	2-1/2"
Face Wheel	1"
Max RPM	900 - 3600
Model Number	82097
Motor HP	1
Phase	Single
Voltage	115/230
Warranty	3 Year
Wheel Diameter	8"
Wheels C to C	16-1/2"
UPC	726896820972
Unit of Measure	Each
Product Height (in)	13
Product Length (in)	21
Product Width (in)	16.5
Product Weight (lbs)	70

Palmgren - 9682097 - Documents and Downloads

Palmgren 9682097 Manual

Click to View
