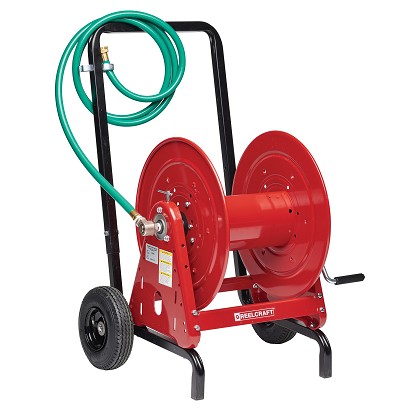

Reelcraft 600968 | 1 in. x 100 ft. Hose Reel and Hand Cart
Reelcraft 600968 | 1 in. x 100 ft. Hose Reel and Hand Cart
Accept Credit Cards
Official PayPal Seal

Reelcraft 600968 | 1 in. x 100 ft. Hose Reel and Hand Cart Industries Inc_150px.jpg
Availability: In Stock
Part Number: RLC600968
0 Review(s)
Write a Review
Retail Price:$894.41
Your Savings:$81.31(9%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Reelcraft's Series 30000 reels mounted on a portable cart are designed for rugged, heavy-duty applications requiring long lengths of hose and large storage capacity. The reels incorporate an all-bolted unitized construction with no welds to fatigue. The full flow swivel and heavy gauge steel frame, spool, and drum ensure longest service life. This heavy-duty reel includes an adjustable spool rotation drag that eliminates hose backlash. Makes spot watering easier, quicker, and more convenient.

Key Features - Reelcraft 600968

  • Includes 18 in. hand crank hose reel – part number CB37118 L.
  • Includes 18 in. wide hand cart with 8.75 in. pneumatic rubber tires and a rugged 1 in. square tubular steel frame – part number 600885-1.
  • Includes a 1 in. x 10 ft. inlet hose. End fittings are 1 in. NPT(M) x 1 in. NPSH(F) – part number S600982-10.
  • Handle height of cart is adjustable to four different heights.

Specifications - Reelcraft 600968

Weight89 lbs
Hose I.D.1"
Hose O.D.1.375"
Hose Length100'
Pressure300 psi
Inlet1" NPT(F)
Reel Outlet1" NPT(M)
Hose IncludedNo
Max Temperature210 °F

FAQs - Reelcraft 600968

Can hand crank reels be converted to motor driven reels?

Yes, Reelcraft has a number of conversion kits. The reel model and motor type will need to be verified. Listed below are some of the available conversion kits for Series 30000 reels. Contact customer service for more support.

A switch will also be required for all motor driven reels. Reelcraft has several types of switches and speed controls available. These switches are motor size specific and must be wired properly for the hose reel to function correctly. Have your hose reel model number ready and consult customer service for switch recommendations.

  • Hand Crank to Bevel Crank – Kit #S600765
    CA33112 L to BA33112 L
  • Hand Crank to 12V Electric – Kit #S600768
    CA33112 L to EA33112 L12D
  • Hand Crank to 24V Electric – Kit #S600771
    CA33112 L to EA33112 L24D
  • Hand Crank to Hydraulic – Kit #S600780
    CA33112 L to HA33112 L
  • Hand Crank to 4A Air Motor – Kit #S600767
    CA33112 L to AA33112 L4A
  • Hand Crank to 6A Air Motor – Kit #S600770
    CA33112 L to AA33112 L6A
  • Hand Crank to 115 V Explosion Proof Motors – Kit #S600781
    CA33112 L to EA33112 L10AX
  • Hand Crank to 12 V Explosion Proof Motors – Kit #S600782
    CA33112 L to EA33112 L12DX
  • Hand Crank to 24 V Explosion Proof Motors – Kit #S600783
    CA33112 L to EA33112 L24DX
How many GPM's will I get from my hose?GPM = gallons per minute is a function of hose diameter, hose length, supply pressure and fluid going through the hose / reel. The most common fluids, air and water, can be seen in charted data. For hydraulic oils it is necessary to know the operating temperature, pressure and fluid viscosity.
What does the solenoid do and why might I need one?You will only require a solenoid if you are using a 12 / 24 VDC motor. Much like in an automobile, the solenoid allows for the use of a light duty, low amperage switch to be used to operate a motor which requires a relatively large surge of electrical current to operate the motor. This surge is allowed by the solenoid to go straight from the battery to the motor while bypassing the switch. Note: Our latest integrated switch boxes have the solenoid and circuit breaker built-in and do not require an additional external solenoid.
Slow down the speed of a motor driven reel

Yes, Reelcraft offers a variety of weatherproof combination switch and speed control devices to satisfy 12 V DC, 24 V DC, 115 V AC and also 230 V AC. These switch/speed controls offer motor on-off, fixed or variable speed control without loss of motor torque, and also motor reversing capability when required.

Universal switch/speed control mounting brackets are also available. Please consult Reelcraft customer service or engineering to best select the component to meet your needs.

Videos - Reelcraft 600968

Series 30000 hose reelsClick to View

Documents and Downloads - Reelcraft 600968

Catalog PageClick to View
Service ManualClick to View
1" hose reels: coiled hose reinforcement description / installation instructionsClick to View
Series 37000 design improvement: BA/CA/EA37000 to BB/CB/EB37000Click to View
BA/CA/EA37000 to BB/CB/EB37000 conversion requirementsClick to View
Series BH/CH/EH37000 hose reelsClick to View
BH/CH/EH37000 conversion requirementsClick to View
Hand crank to bevel crank conversion requirementsClick to View
