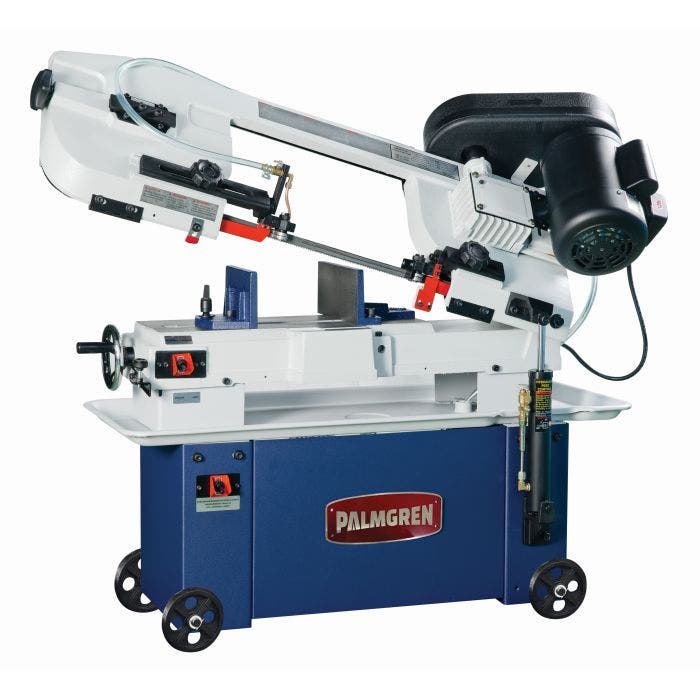

Palmgren 9683311 | 7" X 12" Horizontal Metal Cut Band Saw

Palmgren's 7" x 12" horizontal band saw is the ideal saw for machine maintenance and fabricating shops and for limited run production applications. Heavy duty rigid steel and cast iron construction of the saw head and base provide full blade support and eliminates vibration and deflection.




https://www.autotoolworld.com/assets/icons/features.jpg

Palmgren - 9683311 - Features

  • Step pulley drive train with 4 speed settings to cover all your sawing applications
  • Gear box utilizes a bronze worm gear and hardened worm shaft running in an oil bath
  • Adjustable hydraulic down feed of the saw head
  • Automatic shut off at end of cut
  • Adjustable ball bearing blade guides delivers straight accurate cuts
  • Flood coolant system cools and cleans chips from the blade
  • Chip brush
  • Rapid acting vise
  • Adjustable material work stop
  • Castors for easy positioning of the saw anywhere in the shop



https://www.autotoolworld.com/assets/icons/specs.jpg

Palmgren - 9683311 - Specifications

AMPS12/6.0
Band Saw TypeHorizontal
Blade Length93"
Blade Width3/4"
Blade Thickness0.035"
Cold Saw and Band Saw Saw TypeSemi-Automatic
CoolantFlood
Country of OriginTW
Cutting Angle45°
Cutting Capacity7" x 11-3/4" rectangle
Frequency of UseIntermittent Use,Light Production (Less than 25%of work day)
Manual Horiz. Band Saw TypeSingle miter
Material to be CutFerrous Metals, Non-Ferrous Metals, Composites, Plastics
Max. Thickness of Cut7"
Miter Capacity-
Motor HP1
Number of Spindle Speeds96-132-178-260 FPM
Optional Accessories9683331 - Replacement Blade – Bi-Metal, 3/4" x 0.035" x 6-10 TPI
Overall Dimensions (LxWxH)41" x 18" x 45"
PhaseSingle
RPM1725
Sawing TypeHorizontal Band Saws
Type of CuttingAngle/Miter, Contour, Cutting-Off, Pattern/Cutting Out/Notching, Ripping,Single Piece, Stacking,Straight
Voltage120/240
Warranty3 Year
UPC726896833118
Unit of MeasureEach
Product Height (in)41.6
Product Length (in)50.7
Product Width (in)18
Product Weight (lbs)330



https://www.autotoolworld.com/assets/icons/pdf.jpg

Palmgren - 9683311 - Documents and Downloads

Palmgren 9683311 ManualClick to View
