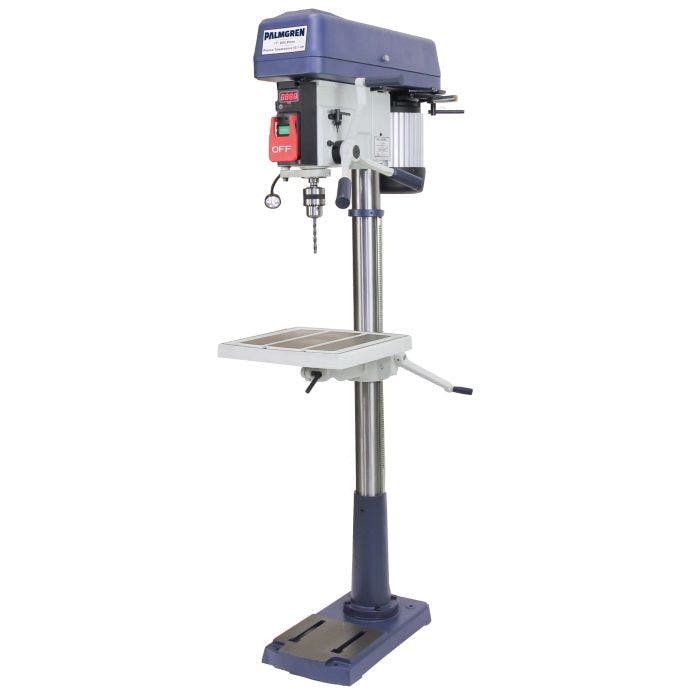

Palmgren 9680177 | 17" 1Ph 16-Speed Floor Step Pulley Drill Press

Palmgren's step pulley drill presses are substantially constructed to provide a solid base for all your drilling operations, and offer a greater range of spindle speeds than any others in their class. They have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications.




https://www.autotoolworld.com/assets/icons/features.jpg

Palmgren - 9680177 - Features

  • Fully enclosed spindle with spaced bearings for maximum spindle support and accurate drilling operations
  • Maximum spindle run out of 0.0005"
  • Extended quill/spindle travel ideal for deep hole applications
  • LED readout for spindle speeds
  • Quick change vertical depth stop for accurate, repeatable feed length
  • Includes chuck with key and arbor
  • Rack and pinion table raiser
  • Table tilts 45 degrees right and left and rotates 360 degrees around the column
  • Front mounted industrial paddle type power switch



https://www.autotoolworld.com/assets/icons/specs.jpg

Palmgren - 9680177 - Specifications

AMPS10.2/5.1
Capacity Cast Iron7/8"
Country of OriginCN
Drill Press ModelFloor Model
Drill Press TypeStep Pulley
Motor HP1
Overall Dimensions (LxWxH)68" H x 15-1/2" W x 28" D
PhaseSingle
RPM138 - 3476
Spindle TaperMT2/JT3
Spindle Travel5
Swing17"
Table Dimensions14-3/8" x14-3/8"
Table Slots5/8"
Voltage120/240
Warranty3 Year
UPC726896801773
Unit of MeasureEach
Product Height (in)10.5
Product Length (in)54.3
Product Width (in)25.8
Product Weight (lbs)216



https://www.autotoolworld.com/assets/icons/pdf.jpg

Palmgren - 9680177 - Documents and Downloads

Palmgren 9680177 ManualClick to View
