Palmgren 9680113 | 16 1-1/2" HP Mill/Drill Machine

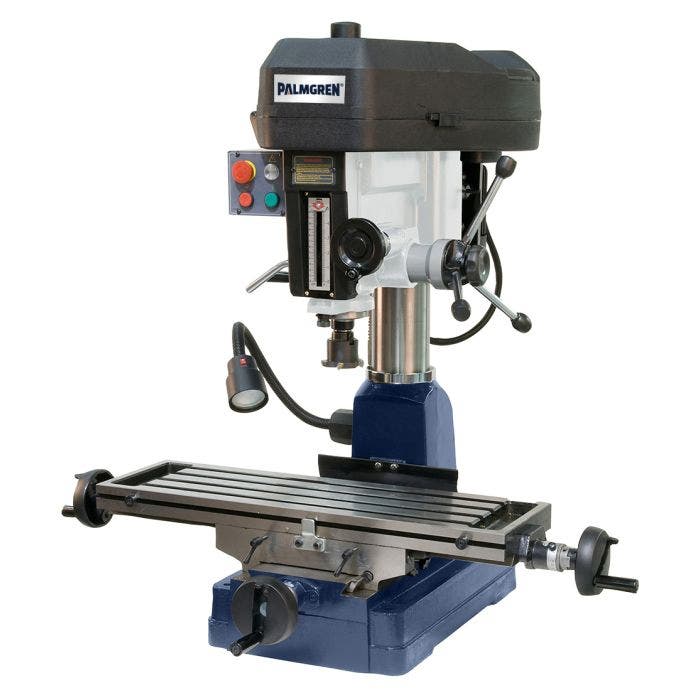

Palmgren 12-Speed Mill Drill Model 9680113 is a ruggedly constructed machine providing accurate milling, drilling, slotting and boring capabilities. One-piece cast-iron head rotates 360° and travels vertically by rack and pinion. Hinged pulley cover allows fast and easy speed changes. A 1-1?2 HP, 1725 RPM, 115/230-volt, 60 Hz single-phase motor and 115v work lamp are included. Prewired for 230V.

Palmgren - 9680113 - Features

• 6” Swing
• Fully enclosed R-8 spindle has heavy-duty tapered thrust bearings at top and bottom of quill
• Large 32-3?8 x 9-1?2” table has dovetail ways with adjustable gibs and bronze lead screw nuts for accurate and rigid table positioning
• Table has four 5/8” T-slots, zero-setting handwheel dials with .001” graduations, adjustable stops for longitudinal feed and cross feed way cover
• 12 Speeds: 150 to 3000RPM
• Adjustable depth stops with scale
• Draw Bar (7/16”-20) and Way Cover
• Spindle Stroke 5”
• Work Light
• Includes: Drill Chuck Arbor, 1/2" Chuck and Key, Face Mill Arbor, 3” Face Mill, R8/MT3 Adaptor, 6-pc R8 Collet Set

Palmgren - 9680113 - Specifications

Country of Origin	TW
Milling Machines Type	Gear Head
Warranty	3 Year
UPC	726896801131
Unit of Measure	Each
Product Height (in)	47
Product Length (in)	38
Product Width (in)	30
Product Weight (lbs)	593
