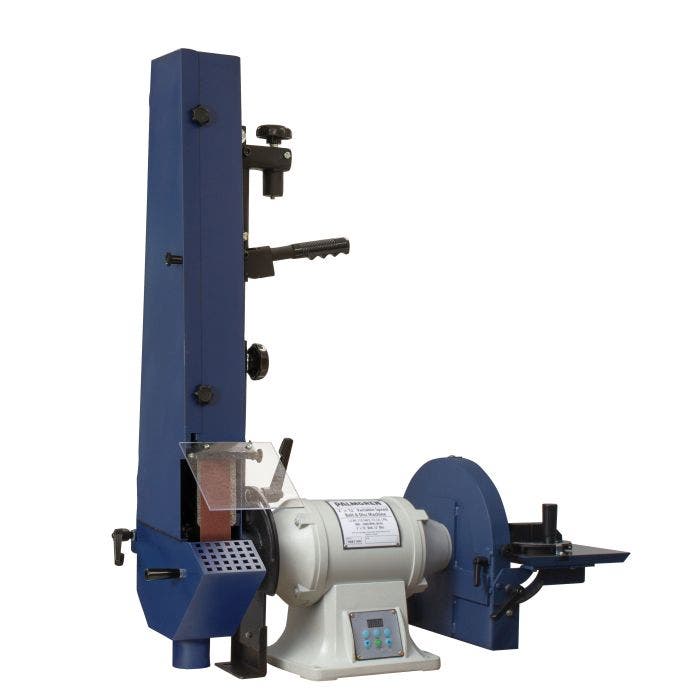

Palmgren 9681104 | 2" X 72" Belt/12" Disc Grinder

Palmgren’s Variable Speed 2" x 72" Belt/12" Disc Grinder provides you with unique flexibility and functionality for variety of projects. Flat sand with the belt and use the disc to fine tune other objects. You get the convenience of having two tools built into one. The grinding belts can be changed, tool free, in seconds with our single handle quick release system. Adhesive discs can be quickly swapped out. For optimum use, the belt arm can tilt from 0-90° to quickly change between grinding applications. Plus, you can control the angle of your disc sanding with the provided miter gauge. The variable speed drive system allows for between 2,355-6,280 SFPM for the belt and 900 to 2400 RPM for the disc. Dial in a speed to fit your specific application. This unique, machine offers unmatched adaptability for a wide variety of projects - providing you with a sound investment for years to come.

Palmgren - 9681104 - Features

• Full 1.5 horsepower variable speed motor
• Full guarding with spark shields for OSHA safety compliance
• Easily removable platen provides quick change overs to slack back grinding
• Simple easy belt tensioning and tracking
• 8” lower drive wheels for maximum belt traction
• Disc sander miter gauge
• Disc sander table tilts up to 45 degrees
• Lower wheel guards can easily swing away for contact wheel grinding and finishing
• Hardened steel platens with graphite pads for smooth belt operation and longer belt life
• Read our blog for more information

Palmgren - 9681104 - Specifications

Abrasive Finishing Type	Belt and Disc Grinders
AMPS	45487
Belt Size	2" x 72"
Belt SFPM	2,355 - 6,280
Belt Width	2"
Country of Origin	TW
Disc Diameter	12"
Disc Speed RPM	900 - 2400
Motor HP	1.5
Voltage	115/230
Warranty	3 Year
Wheel Diameter	10"
Wheel Speed (RPM)	900 - 2400
UPC	726896811048
Unit of Measure	Each
Product Height (in)	13
Product Length (in)	29.5
Product Width (in)	19.5
Product Weight (lbs)	147

Palmgren - 9681104 - Documents and Downloads

Palmgren 9681104 Manual

Click to View
