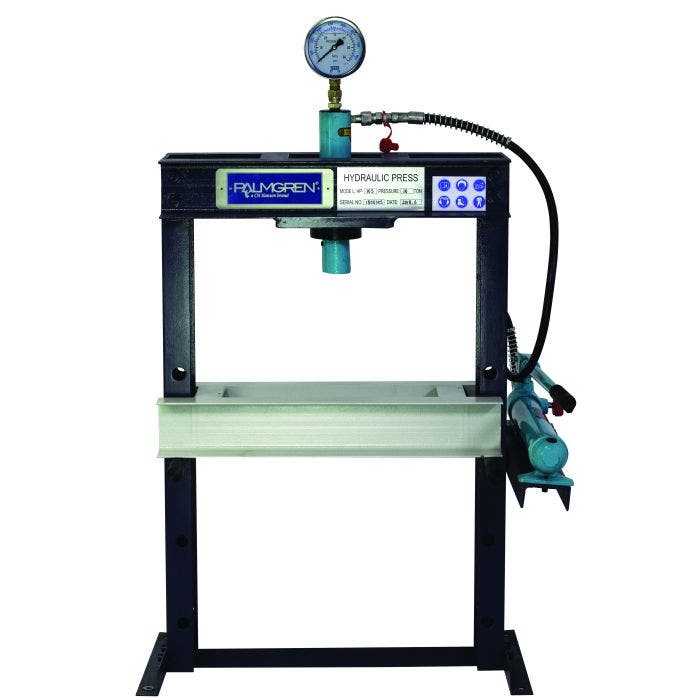

Palmgren 9661610 | 36" Hydraulic Press, 10T, Man Pump

Palmgren’s Hand Operated H-Frame Press Line consists of 10, 25- and 75-ton presses. Each machine is constructed from heavy duty steel plate that is welded together. The combination of rigid construction and industrial grade hydraulics make Palmgren’s H-Frame presses the ultimate solution for the serious fabrication and machine shop owner who demands only the best quality from his operation.

Palmgren - 9661610 - Features

• Pressure gauge for direct pressure readings
• Easily adjustable table for quick height changes between applications
• Holes in side frames allow for insertion of long material
• Hand operation for economic performance
• Efficient hand pump is conveniently located for reduced operator fatigue
• Fully-welded heavy steel plate frame for maximum rigidity
• Factory preset relief valve to prevent exceeding maximum pressure capacity
• By-pass hole prevents excessive ram extension
• Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve
• Single acting cylinder design for improved operation

Palmgren - 9661610 - Specifications

Capacity over Table (inches)	11.8
Country of Origin	CN
Cylinder (Fixed or Dynamic)	FIXED
Cylinder Type	Single Action
Diameter of Work (inches)	19.5 x 19.5
Frame Capacity	10 TONS
H-frame Press Type	Manual Pump
Largest Arbor Extension	6.3
Leverage Radio	400/1
Max. Distance Ram to Table	19.5"
Max Pressure	10 Ton
Max. Work Diameter	19" x 19"
Ram Dimensions	10
Minimum Work Diameter	19 x 0.04
Motor HP	3
Overall Dimensions (LxWxH)	23" x 17" x 36"
Phase	Single
Pressure (tons)	10
Press Type	H-frame Presses
Pump Type	MANUAL
Ram Bore (inches)	1.5
Ram Diameter	1.5
Ram Size	6.3
Reservoir Capacity	24 OZ 2L
Size of Ram Face (inches)	1.5 Dia.
Table Weight	22
Throat Capacity	19.5" x 11.81"
Warranty	3 Year
Working Height (inch)	37660
Working Width (inch)	19.5
UPC	726896616100
Unit of Measure	Each
Product Height (in)	44.5
Product Width (in)	20.5
Product Weight (lbs)	86
