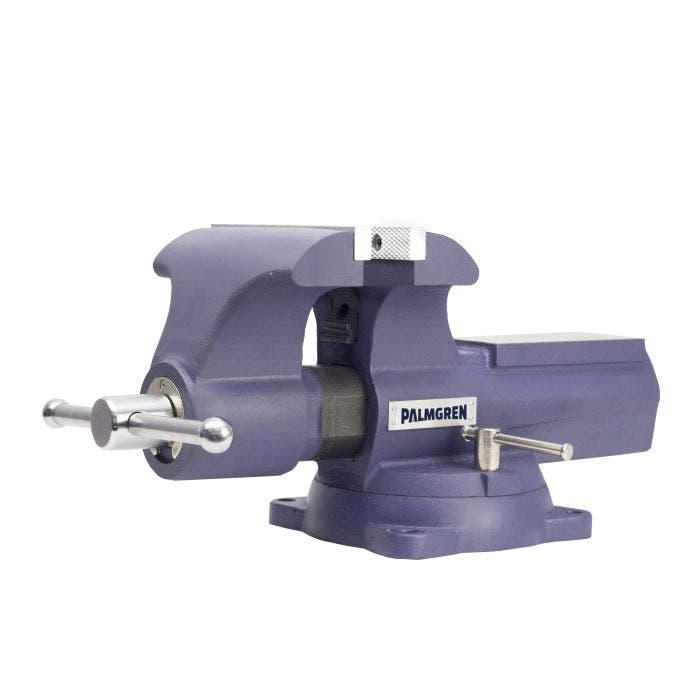

Palmgren 9629758 | 8.5" Combination Bench & Pipe Vise

Palmgren’s new bench vise looks different for a reason. It is built different than all other vises. The unique shaped body houses the straight-line pull, super strong power tunnel that assures that the spindle and nut will never wear out. The entire vise is made of 65,000 PSI ductile iron - coupled with our exclusive manufacturing process of the body and nut – delivers a vise that is 50 percent stronger than all gray iron vises and 20 percent stronger than competitive ductile iron vises. Palmgren vises are built for performance and endurance to handle any of your workholding requirements.

Palmgren - 9629758 - Features

• Straight line power tunnel design - unbreakable spindle & nut with increased clamping power
• Enclosed construction keeps lubrication in & contaminants out, making it ideal for both indoor & outdoor use
• Hardened replaceable steel jaw inserts ensures positive hold
• Hardened replaceable steel self-centering pipe jaws hold round materials securely
• Extra deep throat gives you more working room where it counts
• Precision slide bar machined for a .002" fit
• Oversized machined anvil provides structural integrity and consistent properties of toughness and hardness for greater working area
• ULTRA STRONG, the entire vise is made of 65,000 PSI ductile iron - coupled with our exclusive manufacturing process of the body and nut – delivers a vise that is 50% stronger than all gray iron vises and 20% stronger than competitive ductile iron vises
• Locking swivel base with 360 degree rotation enhanced by double lockdowns for non-slip hold in any position
• Read our blog for more information

Palmgren - 9629758 - Specifications

Anvil Length x Width	3-5/8" x 7"
Bench Vise Type	Combination Pipe and Bench
Country of Origin	TW
Jaw Opening	9"
Jaw Width	8-1/2"
Material	Steel
Overall Dimensions (LxWxH)	21" x 12" 10"
Pipe Jaw Capacities	1/4 - 3-1/2 "
Throat Capacity	4"
Vise Material	Ductile
Vise Type	Bench Vises
Warranty	Limited Lifetime
UPC	726896297583
Unit of Measure	Each
Product Height (in)	13.5
Product Length (in)	24
Product Width (in)	12.25
Product Weight (lbs)	105

Palmgren - 9629758 - Documents and Downloads

Palmgren 9629758 Manual

Click to View
