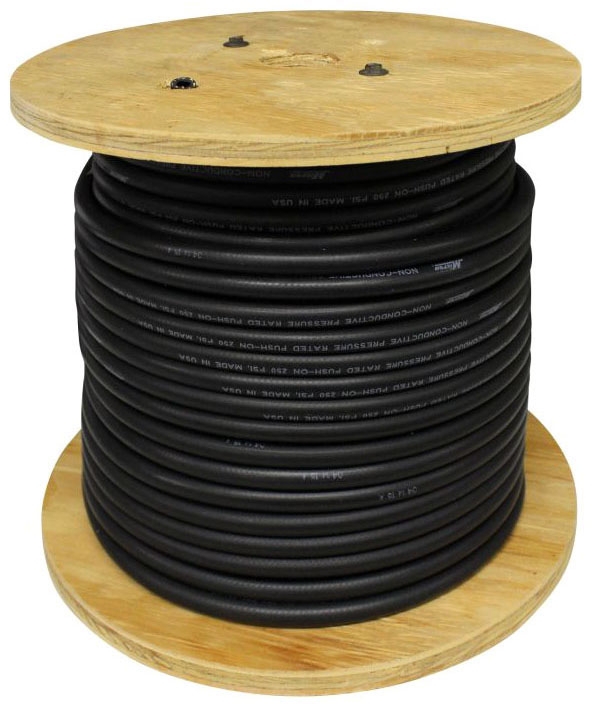

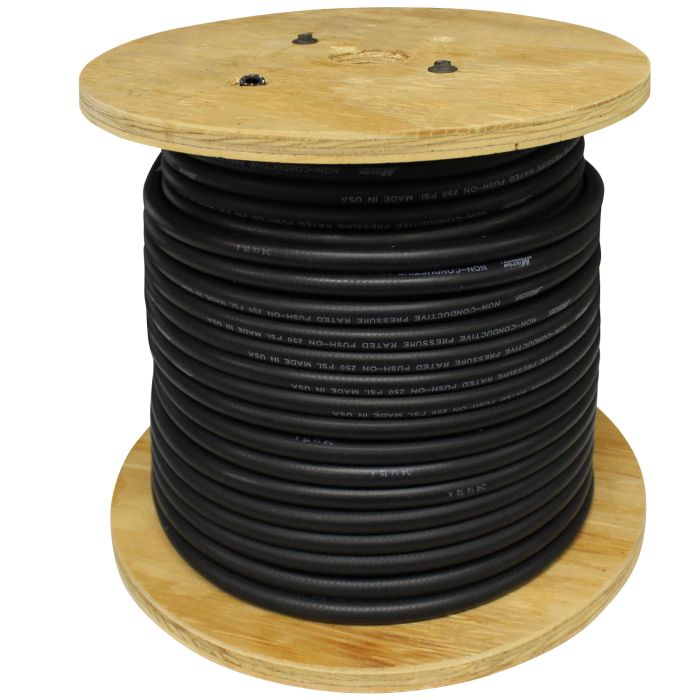

Milton 1629-100 | Air Hose 100 ft - Push On and Lock On

Made of strong, flexible Nitrile with synthetic yarn reinforcement, Milton push on and lock on air hoses resist oil, abrasions and ozone effects. No clamps or ferrules needed, simply cut the hose to desired length and push on fitting. Ideal for automotive paint shops, construction, manufacturing and petrochemical industries, this push on and lock on hose is designed for use with compressed air, water and petroleum based solvents. Measuring at 100' total length, this push on and lock on air hose has a 3/8" ID x 5/8" OD and comes in a dispensing box. Has a Maximum working pressure of 250 PSI and a burst pressure of 1,000 PSI.

Milton Industries - 1629-100 - Features

• Made of strong, flexible Nitrile with spiral synthetic yarn reinforcement. Resists oil, gasoline, abrasion and ozone. Highly resistant to petroleum based hydraulic oils. No clamps or ferrules needed, just cut hose to desired length and push on fitting. Ideal for automotive paint shop, construction, manufacturing and petrochemical industries. Use with compressed air, water and petroleum based solvents
• Made in USA
• Push-On and Lock On Air Hose
• Inside Diameter 3/8 Inch
• Outside Diameter 5/8 Inch
• Overall Length 100 Foot
• Pressure Rating 250 PSI
• Burst Pressure Rating 1000 PSI
• Temperature Rating -20 to 210 Deg F
• Color Black
• Application Air, Automotive Paint Shop, Construction, Manufacturing and Petrochemical Industry
• Packaging Type Dispensing Box
• Maximum working pressure: 250 PSI
• Burst pressure: 1000 PSI
• Working temperature: -20° F to 210° F (-29° C to 100° C)
• Color: Black
• 3/8" Inner Diameter
• 5/8" Outer Diameter
• 250 Feet in Length
• Packaged in a Dispensing Box
• Made of strong, flexible Nitrile with spiral synthetic yarnreinforcement. Resists oil, gasoline, abrasion and ozone. Highlyresistant to petroleum based hydraulic oils. No clamps or ferrulesneeded, just cut hose to desired length and push on fitting. Ideal forautomotive paint shop, construction, manufacturing andpetrochemical industries. Use with compressed air, water,and petroleum based solvents. Fittings are not included with bulkpush and lock hose.

Milton Industries - 1629-100 - Overview

• 3/8" hose inside diameter
• 5/8" hose outside diameter
• Maximum working pressure of 250 pounds per square inch
• Working temperature range of -20 degrees Fahrenheit to 210 degrees Fahrenheit
• 100' 3/8ID X 5/8OD PUSH HOSE

Milton Industries - 1629-100 - Additional Information

• Packaging Type Dispensing Box

Milton Industries - 1629-100 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 1629-100 - Specifications

Order Part Number	MI1629-100
Item Desc	Air Hose 100 ft - Push On & Lock On
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1629-100
UPC	309373042090
Product Group Id	MI00
Country of Origin	US
UNSPSC	40142002
Short Description	100' 3/8ID X 5/8OD PUSH HOSE
Grouped Product Package Type	100 foot length
Number of Items in This Pack	1
Made in USA	Yes
Hose Length	100' Hose
Display on Bloguns CMS Page	No
Type	Push on and lock air hose
Type of Hose	No
Hose ID Size	No
NPT thread size	No
Height	0.625
Width	0.625
Length	15
Material Type	No
Maximum PSI	250 PSI
Hose OD size	5/8" Hose OD
