Kent Moore Tools J-45268 | A/C Flush Adapter Kit

Service Level: IApplication: A/C FLUSH Adapter KITCross Over No.: J-45268J-45268 is a Set of Adapters, fittings and filters that are used with R134a and R1234yf A/C machines to flush A/C syStems of Oil and debris.?The flushing procedure uses Liquid refrigerant as the flushing agent.?Direct flushing is the most effective method for Removal of desiccant material, residual dirt and metal debris trapped in an A/C syStem.?The vehicle Lines are removed from the A/C Compressor and the appropriate J-45268 Adapters from the kit are connected to the vehicle Lines and kit filter Housing.?The A/C machine Hoses are then connected to the Adapters and the flush function is initiated forcing pressurized Liquid refrigerant though the A/C syStem.?The flush removes all Oil from the A/C syStem so a full Oil capacity amount must then be put in the syStem duRing recharging with refrigerant. ?torage case included with the kit. Kit includes 6 filters.?Replacement filters ordered separately.?Part number 506239 for one filter.For R1234yf syStems, the GE-45268-130 Adapter Kit (not included) is required which contains a high Side and a low Side R1234yf fittings.?The low Side fitting threads into the J-45268-1 Flushing Hose and Filter Assembly.?The high Side threads into the appropriate flushing bLock.

Kent Moore Tools - J-45268 - Product Categories

• Automotive Specialty Tools
• Auto Air Conditioning Tools
• Adapters-Couplers- Fittings-Gask

Kent Moore Tools - J-45268 - Features

• For General Motors. The A/C Flush Kit is a set of adapters, fittings and filters that are used with the ACR2000 or new J2788 compliant A/C machine, 42-48800, to flush A/C systems of oil and debris. The procedure uses liquid R134a as a flushing agent. The lines are removed from the A/C compressor and the appropriate J-45268 adapter from the kit is connected to the lines and filter housing. The ACR2000 hoses are then connected to the adapter and the flush function is initiated from the ACR2000. The flush will remove all oil from the A/C system. A full oil charge must then be put into the system. The kit includes Saab 9-7X adapter J-45268-3.

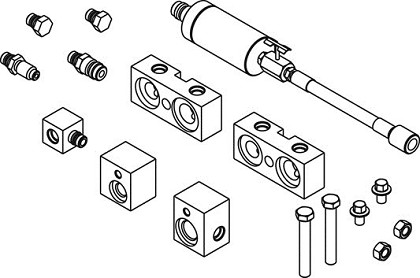

• Kit Includes:
• J-45268-1 Flusher
• J-45268-2 Dual Block
• J-45268-3 Dual Block
• J-45268-4 Flushing Block
• J-45268-5 Flushing Block
• J-45268-6 Flushing Adapter
• J-45268-7 Fitting Assembly
• J-45268-8 Fitting Assembly
• J-45268-9 Fitting Assembly (2)
• J-45268-10 Dual Block
• J-45268-102 Flushing Block
• J-45268-103 Flushing Block
• J-45268-104 Fitting Assembly
• J-45268-105 Fitting Assembly
• J-45268-106 Fitting
• J-45268-107 Flushing Block
• 506239 6 Filters

Kent-Moore Tools - J-45268 - Specifications

Brand Name	Kent-Moore Tools
Manufacturer Part Number	J-45268
Item Description	A/C Flush Adapter Kit

Kent Moore Tools - J-45268 - Partial List of Applications

Automatic : HVAC : 9-7x	2005, 2006, 2007, 2008, 2009, 2010
Automatic : HVAC : Acadia	2007, 2008, 2009, 2010
Automatic : HVAC : Allure	2005, 2006, 2007, 2008, 2009, 2005, 2006, 2007, 2008, 2009, 2010
Automatic : HVAC : Ascender - 2WD	2003, 2004, 2005, 2006
Automatic : HVAC : Ascender - 4WD	2003, 2004, 2005, 2006
Automatic : HVAC : Astro - 2WD	1998, 1999, 2000, 2001, 2002, 2003, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Automatic : HVAC : Astro - 4WD	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2001, 2002, 2003, 2004, 2005
Automatic : HVAC : Astro	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Automatic : HVAC : Avalanche - 2WD	2002, 2003, 2004, 2005, 2006
Automatic : HVAC : Avalanche - 4WD	2002, 2003, 2004, 2005, 2006
Automatic : HVAC : Avalanche	2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2009, 2010
Automatic : HVAC : Aztek - AWD	2001, 2002, 2003, 2001, 2002, 2003, 2004, 2005
Automatic : HVAC : Aztek - FWD	2001, 2002, 2003, 2004, 2005
Automatic : HVAC : Aztek	2001, 2002, 2003, 2004, 2005
Automatic : HVAC : Blazer - 2WD	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Automatic : HVAC : Blazer - 4WD	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Automatic : HVAC : Blazer	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2000, 2001, 2002, 2003, 2004, 2005
Automatic : HVAC : Bonneville	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Automatic : HVAC : C Cab/Chassis HD	2001, 2002
Automatic : HVAC : Camaro	1998, 1999, 2000, 2001, 2002, 2010
Automatic : HVAC : Canyon Pickup - 2WD	2004, 2005, 2006, 2007
Automatic : HVAC : Canyon Pickup - 4WD	2004, 2005, 2006, 2007
Automatic : HVAC : Canyon	2004, 2005, 2006, 2007, 2008, 2009
Automatic : HVAC : Caprice	2005, 2007, 2008, 2009
Automatic : HVAC : Cavalier	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Automatic : HVAC : Century	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Automatic : HVAC : Chevy C Silverado - 2WD	1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
Automatic : HVAC : Chevy K Silverado - 4WD	1999, 2000, 2001, 2002, 2003, 2004, 2000, 2001, 2002, 2003, 2004, 2005, 2006
Automatic : HVAC : Chevy Suburban - 2WD	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Automatic : HVAC : Chevy Suburban - 4WD	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Automatic : HVAC : Classic	2004, 2005, 2006
Automatic : HVAC : Cobalt	2005, 2006, 2007, 2008, 2009, 2010
Automatic : HVAC : Colorado Pickup - 2WD	2004, 2005, 2006, 2007
Automatic : HVAC : Colorado Pickup - 4WD	2004, 2005, 2006, 2007
Automatic : HVAC : Colorado	2004, 2005, 2006, 2007, 2008, 2009
Automatic : HVAC : Corvette	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
Automatic : HVAC : CTS	2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
Automatic : HVAC : DeVille	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Automatic : HVAC : DTS	2006, 2007, 2008, 2009, 2010, 2008, 2009, 2010
Automatic : HVAC : Eldorado	1998, 1999, 1998, 1999, 2000, 2001, 2002
Automatic : HVAC : Enclave	2008, 2009, 2010
Automatic : HVAC : Envoy - 2WD	2002, 2003, 2004, 2005, 2006, 2007
Automatic : HVAC : Envoy - 4WD	1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2002, 2003, 2004, 2005, 2006, 2007
Automatic : HVAC : Envoy XUV	2004, 2005, 2006
Automatic : HVAC : Envoy	1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
Automatic : HVAC : Equinox	2005, 2006, 2007, 2008, 2009, 2010
Automatic : HVAC : Escalade - 2WD	2002, 2003, 2004, 2005, 2006, 2007
Automatic : HVAC : Escalade ESV	2003, 2004, 2005, 2006
Automatic : HVAC : Escalade EXT	2002, 2003, 2004, 2005, 2006
Automatic : HVAC : Escalade	1999, 2000, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
