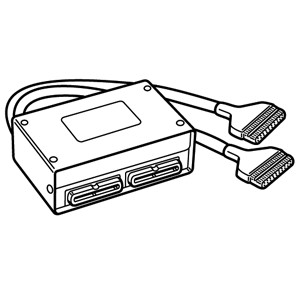

Kent Moore Tools J-43799 | Breakout Box Adapter Allison 1000

J-43799 is used with J-39700 Break -Out box to diagnose the electrical operation of the Allison 1000 Automatic Transmission. Following available Service Information diagnostics, the Transmission Control Module (TCM) Harness is Disconnected from the TCM, and J-43799 is Installed between the Harness and the TCM. The appropriate circuit can then be Tested and measured at the corresponding Terminal of the J-39700, per available service information, to diagnose the fault, and verify System operation after repair.

Kent Moore Tools - J-43799 - Product Categories

• Automotive Diagnostic Tools
• Breakout Box

Kent Moore Tools - J-43799 - Features

• J-43799 is used with J-39700 Break -Out box to diagnose the electrical operation of the Allison 1000 Automatic Transmission. Following available Service Information diagnostics, the transmission Control Module (TCM) harness is disconnected from the TCM, and J-43799 is installed between the harness and the TCM. The appropriate circuit can then be tested and measured at the corresponding terminal of the J-39700, per available service information, to diagnose the fault, and verify system operation after repair.
• For use with 1000/2000 TCMs (Pre-Allison 4th Generation Controls)} (Used in conjunction with the J39700 Universal Breakout Box)

Kent Moore Tools - J-43799 - Overview

• Applications: Allison 1000
• J-43799 is used with J-39700 Break -Out box to diagnose the electrical operation of the Allison 1000 Automatic Transmission.
• Following available Service Information diagnostics, the transmission Control Module (TCM) harness is disconnected from the TCM, and J-43799 is installed between the harness and the TCM.
• The appropriate circuit can then be tested and measured at the corresponding terminal of the J-39700, per available service information, to diagnose the fault, and verify system operation after repair.
• Manufacturer drop ship.
• Kent-Moore J-43799 Breakout Box Adapter

Kent-Moore Tools - J-43799 - Specifications

Brand Name	Kent-Moore Tools
Manufacturer Part Number	J-43799
Item Description	Breakout Box Adapter Allison 1000
Also Known As	OTC-J-43799, KMJ-43799

Kent Moore Tools - J-43799 - Partial List of Applications

Automatic Transmission : Drive Line : Aveo	2004
Automatic Transmission : Drive Line : Chevy C Silverado - 2WD	1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
Automatic Transmission : Drive Line : Chevy K Silverado - 4WD	1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
Automatic Transmission : Drive Line : Epica	2004
Automatic Transmission : Drive Line : GMC C Sierra - 2WD	1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
Automatic Transmission : Drive Line : GMC K Sierra - 4WD	1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
Automatic Transmission : Drive Line : Impala	2004
Automatic Transmission : Drive Line : Kodiak C-Series (Conventional) C4/C5	2004
Automatic Transmission : Drive Line : Kodiak C-Series (Conventional) C6/C7/C8	2004
Automatic Transmission : Drive Line : Malibu	2004
Automatic Transmission : Drive Line : Optra	2004
Automatic Transmission : Drive Line : Sierra	1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
Automatic Transmission : Drive Line : Silverado	1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
Automatic Transmission : Drive Line : Suburban	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
Automatic Transmission : Drive Line : Tahoe	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
Automatic Transmission : Drive Line : TopKick C-Series (Conventional) C4/C5	2004
Automatic Transmission : Drive Line : TopKick C-Series (Conventional) C6/C7/C8	2004
Automatic Transmission : Drive Line : Yukon	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
