Kent Moore Tools GE-45268-130 | R1234Y Flush Adapter Set

GE-45268-130 is a kit that contains a high Side and a low Side R-1234yf fitting. The low Side fitting threads into the previously essential GE-45268-1 Flushing Hose and Filter Assembly. The high Side threads into the Flushing Block called out in GM eSI. The R-1234yf A/C Refrigerant Machine is attached to the GE-45268-1 Flushing Hose. Flush mode is then activated on the A/C machine to force pressurized Liquid refrigerant though the Evap Core. Direct Flushing is the most effective method for Removal of desiccant material, residual dirt and metal debris trapped in an A/C System.

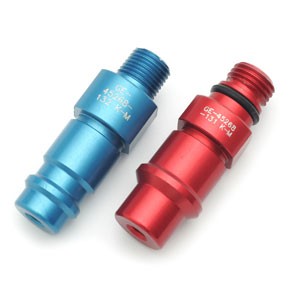

Service Parts: GE-45268-131 High Side R1234yf AC Flush Adapter (Red) GE-45268-132 Low Side R1234yf AC Flush Adapter (Blue)

Kent Moore Tools - GE-45268-130 - Product Categories

• Automotive Specialty Tools
• Auto Air Conditioning Tools
• Adapters-Couplers- Fittings-Gask

Kent Moore Tools - GE-45268-130 - Features

• GE-45268-130 is a kit that contains a high side and a low side R-1234YF fitting. The low side fitting threads into the previously essential GE-45268-1 Flushing Hose and Filter Assembly. The high side threads into the flushing block called out in GM ESI.
• The R-1234YF A/C Refrigerant Machine is attached to the GE-45268-1 Flushing Hose. Flush mode is then activated on the A/C machine to force pressurized liquid refrigerant though the EVAP core.
• Direct flushing is the most effective method for removal of desiccant material, residual dirt and metal debris trapped in an A/C system.

Kent-Moore Tools - GE-45268-130 - Specifications

Brand Name	Kent-Moore Tools
Manufacturer Part Number	GE-45268-130
Item Description	R1234Y Flush Adapter Set

Kent Moore Tools - GE-45268-130 - Partial List of Applications

Heating Ventilation and Air Conditioning : HVAC : CT6	2017
Air Conditioning : HVAC : Bolt EV	2017
Air Conditioning : HVAC : Camaro	2016, 2017
and Air Conditioning : HVAC : Cascada	2017
Air Conditioning : HVAC : Cruze	2017
and Air Conditioning : HVAC : CT6	2016, 2017
Air Conditioning : HVAC : CTS	2016
and Air Conditioning : HVAC : Orlando	2017
and Air Conditioning : HVAC : Spark EV	2016
and Air Conditioning : HVAC : Verano	2017
