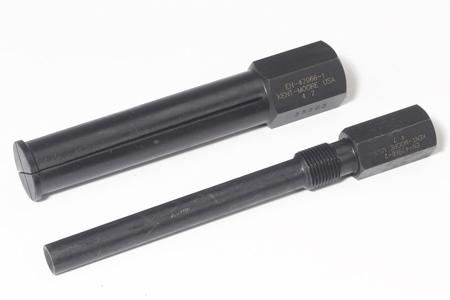

Kent Moore Tools EN-47966 | Oil Control Valve Seal Remover

The Cam Shaft position actuator Valve Seals are Installed with the lips facing outward, and no way to get behind them to use conventional Seal Removers, such as J-45000. EN-47966 expands it feet into the Sides of the Seal case, and is then used with either a Slide Hammer or J-45124 Puller Bridge to remove the Seals. Unapproved methods will damage the Bore or Front cover, and can result in Engine damage due to out of specification Oil Pressure.

Kent Moore Tools - EN-47966 - Product Categories

• Automotive Specialty Tools
• Drive Train- Transmission
• Seal Removal & Installation

Kent Moore Tools - EN-47966 - Features

• High Feature V6 engines - 2.8L, 3.0L, 3.2L, or 3.6L
• The camshaft position actuator valve seals are installed with the lips facing outward, and no way to get behind them to use conventional seal removers, such as J-45000.
• EN-47966 expands it feet into the sides of the seal case, and is then used with either a slide hammer or J-45124 Puller Bridge to remove the seals.
• Unapproved methods will damage the bore or front cover, and can result in engine damage due to out of specification oil pressure.
• Manufacturer: SPX/Bosch (OTC Rotunda Kent-Moore Miller)

Kent-Moore Tools - EN-47966 - Specifications

Brand Name	Kent-Moore Tools
Manufacturer Part Number	EN-47966
Item Description	Oil Control Valve Seal Remover
