The DT-50903 Load Gauge is used with the DT-50900 Clutch Travel Support Fixture to apply various Load Pressures on Clutch Pack assemblies for Travel checks and selective backing plate deTermination. The Clutch Pack is Set onto DT-50905 Clutch Air Travel Fixture and the Assembly is placed in the counter Bore in the bottom plate of DT-50900. The DT-50900 Forcing Screw is turned until the Pressure Gauge reads the proper Load for the Clutch Pack Assembly. This flattens the Pack Assembly and forces out any Air trapped between the discs and backing plates. The J-8001 Dial Indicator is positioned on the Clutch Pack Input Shaft and Set to zero. Air at shop Pressure is then fed into one of two ports in the DT-50905 depEnding on the Pack to be measured (C45678R or C23468). The Travel dimension shown on the Dial Indicator is checked and compared to the eSI specification. Different Clutch Pack assemblies require different Loads.?alibrationThis pRoduct includes a Gauge or Measuring device that may require periodic calibration to ensure proper function.?There are numerous factors that can be conSidered when deTermining a calibration schedule; therefore, Bosch and the Gauge manufacturers suggest that it is the responsibility of each user to make that deTermination.?Contact your local Tool & Equipment calibration sources for assistance.
Kent Moore Tools - DT-50903 - Product Categories
- Automotive Specialty Tools
- Drive Train- Transmission
- Clutch Service Tools
Kent Moore Tools - DT-50903 - Features

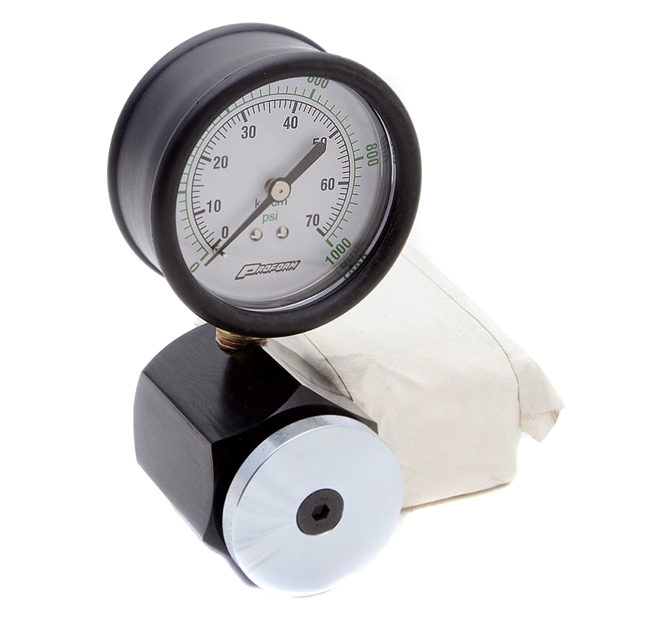

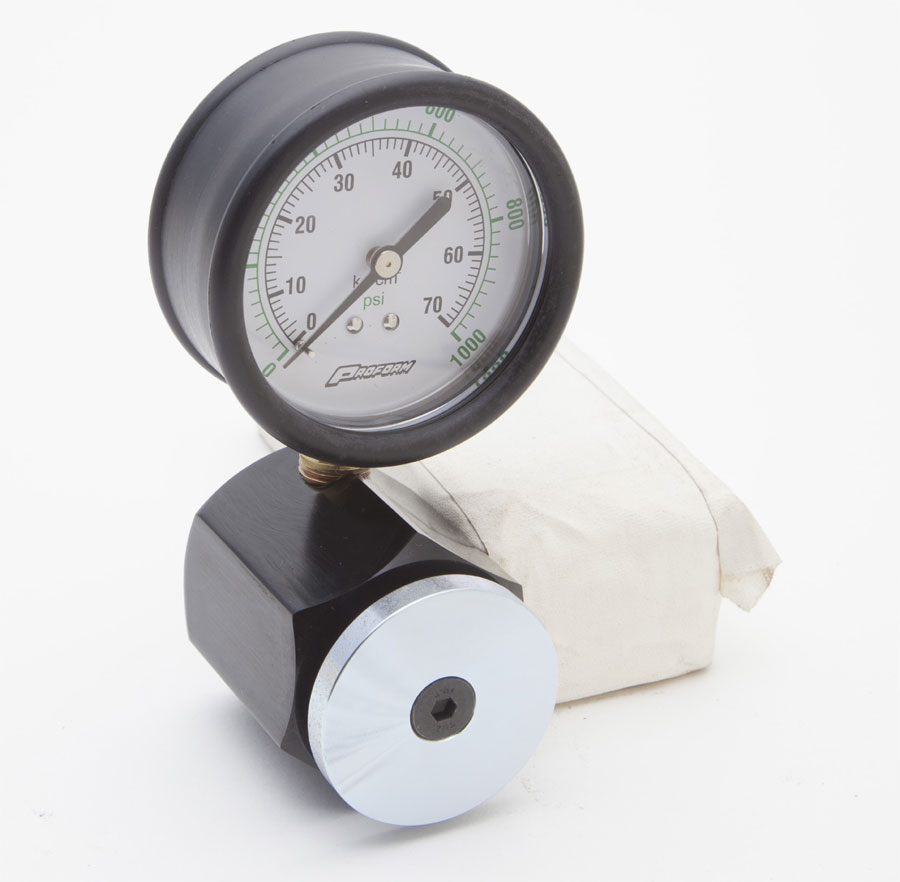

- The DT-50903 Load Gauge is used with the DT-50900 Clutch Travel Support Fixture to apply various load pressures on clutch pack assemblies for travel checks and selective backing plate determination.
- The clutch pack is set onto DT-50905 Clutch Air Travel Fixture and the assembly is placed in the counterbore in the bottom plate of DT-50900. The DT-50900 Forcing Screw is turned until the pressure gauge reads the proper load for the clutch pack assembly. This flattens the pack assembly and forces out any air trapped between the discs and backing plates. The J-8001 Dial Indicator is positioned on the clutch pack input shaft and set to zero. Air at shop pressure is then fed into one of two ports in the DT-50905 depending on the pack to be measured (C45678R or C23468). The travel dimension shown on the dial indicator is checked and compared to the eSI specification. Different clutch pack assemblies require different loads.
- Manufacturer: SPX/Bosch (OTC Rotunda Kent-Moore Miller)
Kent-Moore Tools - DT-50903 - Specifications
| Brand Name | Kent-Moore Tools |
| Manufacturer Part Number | DT-50903 |
| Item Description | Gauge & Clutch Travel Load, 1000 lb |
Kent Moore Tools - DT-50903 - Partial List of Applications
| Automatic Transmission - 5ET50 (MKE) : Transmission : Malibu | 2016, 2017 |
| Automatic Transmission - 5ET50 (MKV) : Transmission : Volt | 2016, 2017 |
| Automatic Transmission - 8L45 (M5N M5T) or 8L90 (M5U) : Transmission : ATS | 2016, 2017 |
| Automatic Transmission - 8L45 (M5N) or 8L90 (M5U) : Transmission : CTS | 2016, 2017 |
| Automatic Transmission - 8L45 (M5N) or 8L90 (M5X) : Transmission : CT6 | 2016, 2017 |
| Automatic Transmission - 8L45 (M5T) or 8L90 (M5U) : Transmission : Camaro | 2016, 2017 |
| Automatic Transmission - 8L45 (M5T) : Transmission : Canyon | 2017 |
| Automatic Transmission - 8L45 (M5T) : Transmission : Colorado | 2017 |
| Automatic Transmission - 8L90 (M5U M5X) : Transmission : Cheyenne | 2016, 2017 |
| Automatic Transmission - 8L90 (M5U M5X) : Transmission : Sierra | 2016, 2017 |
| Automatic Transmission - 8L90 (M5U M5X) : Transmission : Silverado | 2016, 2017 |
| Automatic Transmission - 8L90 (M5U) : Transmission : Corvette | 2016, 2017 |
| Automatic Transmission - 8L90 (M5U) : Transmission : Escalade ESV | 2016, 2017 |
| Automatic Transmission - 8L90 (M5U) : Transmission : Escalade | 2016, 2017 |
| Automatic Transmission - 8L90 (M5U) : Transmission : Express | 2017 |
| Automatic Transmission - 8L90 (M5U) : Transmission : Savana | 2017 |
| Automatic Transmission - 8L90 (M5U) : Transmission : Suburban | 2016, 2017 |
| Automatic Transmission - 8L90 (M5U) : Transmission : Tahoe | 2016, 2017 |
| Automatic Transmission - 8L90 (M5U) : Transmission : Yukon XL | 2016, 2017 |
| Automatic Transmission - 8L90 (M5U) : Transmission : Yukon | 2016, 2017 |
