Kent Moore Tools DT-50573 | 4-5-6 Piston Retaining Ring Installer

Applications: 2017-later Buick LaCrosse, Enclave; Chevrolet Cruze, Equinox, Malibu, Traverse; GMC TerrainDT-50573 is used with DT-46620 to Install the Retaining Ring on the 4-5-6 Clutch dam in GF6 and GF9 Transaxles during unit overhaul.?Includes DT-50573-1 Compressor, DT-50573-2 Protector.

Kent Moore Tools - DT-50573 - Product Categories

• Automotive Specialty Tools
• Removal & Installation

Kent Moore Tools - DT-50573 - Features

• Malibu Eco, Transmission - 6T40 in eAssist LaCrosse, 6T50

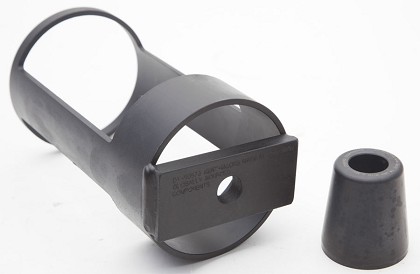

• DT-50573 is a 2 piece tool consisting of a spring compressor and retaining ring expander cone. It is used in a hydraulic press to push on the 4-5-6 clutch assemblies in the 6T40, 6T50 and compress the dam spring so the clutch retaining ring can be removed. The clutch assembly can then be disassembled for overhaul. The tool is again used to compress the spring to allow installation of the retaining ring once the clutch piston has been serviced . The tapered retaining ring expander cone assures the retaining ring is not over-expanded as it is installed. The previously essential J-46620-2 Ring Installer pushes on the retaining ring and the fingers on the installer evenly push the ring down the expander cone until it snaps into the ring groove.

Kent-Moore Tools - DT-50573 - Specifications

Brand Name	Kent-Moore Tools
Manufacturer Part Number	DT-50573
Item Description	4-5-6 Piston Retaining Ring Installer

Kent Moore Tools - DT-50573 - Partial List of Applications

Automatic Transmission - 6T30 (MH9) or 6T40 (MH8) : Transmission : Cruze	2016
Automatic Transmission - 6T30 (MH9) or 6T40 (MH8) : Transmission : Sonic	2016, 2017
Automatic Transmission - 6T35 (MNU) : Transmission : Cruze	2017
Automatic Transmission - 6T40 (MH8 MHH) : Transmission : Regal	2016
Automatic Transmission - 6T40 (MH8) or 6T45 (MH7) : Transmission : Orlando	2017
Automatic Transmission - 6T40 (MH8) or 6T50 (MHK) : Transmission : Verano	2016
Automatic Transmission - 6T40 (MH8) : Transmission : Orlando	2016
Automatic Transmission - 6T40 (MH8) : Transmission : Regal	2017
Automatic Transmission - 6T40 (MH8) : Transmission : Verano	2017
Automatic Transmission - 6T40 (MHH) : Transmission : LaCrosse	2016
Automatic Transmission - 6T40 (MNH MNK) : Transmission : Encore	2016, 2017
Automatic Transmission - 6T40 (MNH MNK) : Transmission : Trax	2016, 2017
Automatic Transmission - 6T40 (MNH) : Transmission : Malibu Limited	2016
Automatic Transmission - 6T40 (MNH) : Transmission : Malibu	2016, 2017
Automatic Transmission - 6T45 (MH7 MHC) : Transmission : Equinox	2017
Automatic Transmission - 6T45 (MH7 MHC) : Transmission : Terrain	2017
Automatic Transmission - 6T45 (MH7) : Transmission : Cascada	2016, 2017
Automatic Transmission - 6T45 (MHC MH7) : Transmission : Equinox	2016
Automatic Transmission - 6T45 (MHC MH7) : Transmission : Terrain	2016
Automatic Transmission - 6T45 (MHG) or 6T50 (M2D) : Transmission : Envision	2016, 2017
Automatic Transmission - 6T45 (MHG) : Transmission : Impala	2016, 2017
Automatic Transmission - 6T50 (M2D) : Transmission : Acadia	2017
Automatic Transmission : Transmission : Cruze	2014
Automatic Transmission : Transmission : Encore	2013, 2014
Automatic Transmission : Transmission : Equinox	2013, 2014
Automatic Transmission : Transmission : Impala	2014
Automatic Transmission : Transmission : LaCrosse	2013, 2014
Automatic Transmission : Transmission : Malibu	2013, 2014
Automatic Transmission : Transmission : Regal	2013, 2014
Automatic Transmission : Transmission : Terrain	2013, 2014
Automatic Transmission : Transmission : Verano	2013, 2014
Drive Line : Drive Line : Cruze	2012
Drive Line : Drive Line : Equinox	2012
Drive Line : Drive Line : LaCrosse	2012
Drive Line : Drive Line : Malibu	2012, 2013
Drive Line : Drive Line : Regal	2012
Drive Line : Drive Line : Terrain	2012
Transmission : Transmission : Captiva Sport	2012
Transmission : Transmission : Cruze	2012
Transmission : Transmission : Equinox	2012
Transmission : Transmission : LaCrosse	2012, 2013
Transmission : Transmission : Malibu	2012, 2013
Transmission : Transmission : Regal	2012, 2013
Transmission : Transmission : Verano	2012
