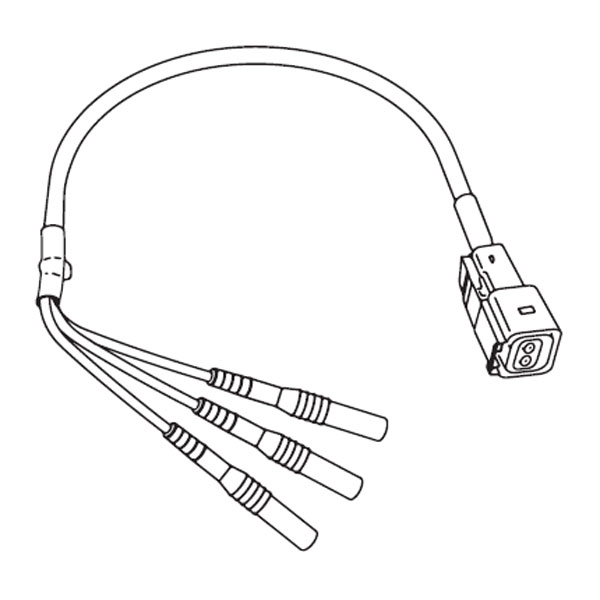

Kent-Moore EL-50332-335 | Battery Pack Depowering HPDM/ACCM Adapter Cable
Applications: 2017 Chevrolet Bolt EVEL-50332-335 allows EL-50332 Battery Depowering Service Tool to be electrically connected to the Bolt EV battery Pack high-voltage circuit at the RESS battery Pack BDU Connector to allow Depowering of the Pack through that Connector if vehicle circumstances do not allow access to the other high-voltage Connectors for Depowering. The Cable is also used to check for voltage with a DVOM at the RESS BDU Connector to assure the Pack is fully dePowered before the technician begins any disAssembly and service procedures.
