Innovative Products Of America 5510A-L4RT8 | Alpha MUTT (2nd Gen) w/ ABS, Built-In Battery & Rugged Tablet Bench-Top Model

One-Man, Battery-Powered Trailer Inspection System that Tests a Trailer Without a Truck!

Integrate all aspects of trailer service and repair with this easy-to-use trailer tester with advanced ABS, lights and digital air brake diagnostics. It includes an internal lithium battery and requires no set-up or monthly fees.

#5510A-RT8 Available Without Lithium Battery – $6295.00

Innovative Products Of America - 5510A-L4RT8 - Features

• ABS TESTING:
• Reads and clears codes on front panel or rugged tablet
• Accesses ECU data; manufacturer, make, model, etc.
• Displays diagnostic troubleshooting information
• Automatically detects corroded ABS wires and faulty ECU's with patent-pending technology
• No lag time when accessing ABS with IPA®'s custom diagnostic software
• ELECTRICAL TESTING(12/24 Volt Operation):
• Automatic cross, open, overload, short and ground fault detection
• Highly accurate digital ammeter with 1mA resolution
• PulsarMode allows for chasing down short circuits without blowing fuses
• Ground failure detection: differentiates between wire and chassis ground
• Cable testing
• Control lights by remote or rugged tablet
• Detailed inspection report generated from auto-test report function in under 60 seconds
• AIR BRAKE TESTING:
• Dual regulators
• Rugged tablet or remote-controlled air brake activation
• Real-time, repetitive brake activation to find developing problems and verify leaking servo cans
• Perform analog leak-down tests in service and emergency lines
• TRUCK-SIDE TESTING:
• Tests continuity to trailer connectors of tractor
• Tests air brake output at tractor gladhands
• Environmentally Safe, Long-Lasting and Stronger Battery:
• LiFePO4 batteries are superior to other lithium and lead acid batteries
• Lithium iron phosphate composition is non-toxic and naturally non-combustible
• Lighter and safer than standard lithium ion batteries
• Stronger charge efficiency and greater discharge capabilities
• Longer lifespan-get more inspections out of one charge
• No memory effect-will not lose charge longevity over time
• Withstands extreme temperatures (-4°F-165°F) with a peak reach of 930°F
• Built for Any Shop or Service-Truck Need:
• Waterproof and sealed face label with illuminated stainless steel pushbutton switches
• Two dual-line, 32-character, sealed LCD screens optimized for outdoor use with backlighting for nighttime, sunlight-readable for daytime, and wide-angle view

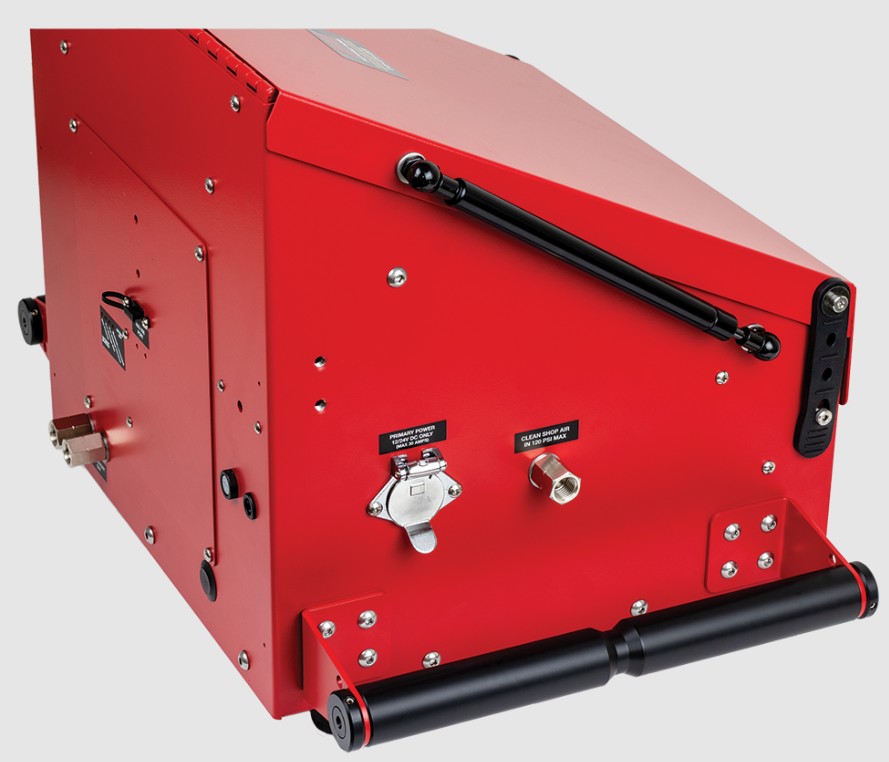

• Tri-mount handle design for use in the shop, field or on the road
• Carry handle option allows transportability of unit-carry it anywhere you go

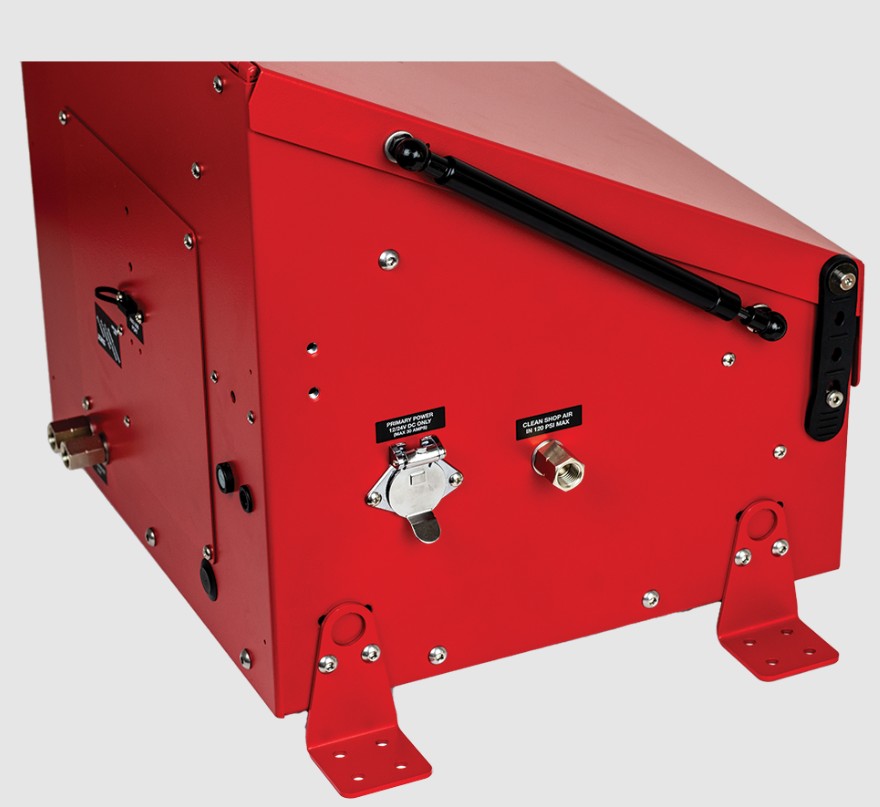

• Bottom-mount option lets unit be secured to a cart for mobility in the shop, or installed into truck box
• Back-mount option provides a secure, stationary unit when hung on a wall, in a truck box, or at the back of the shop work bench
• IPA's Diagnostic Software Suite:
• IPA's diagnostic software suite provides faster and more comprehensive paperless inspections, resulting in less mistakes and citations down the road. The Inspection Customization Tab helps reduce costs and technician/fleet manager frustrations by avoiding time-consuming, failure-prone data entry points.
• CAPTURE INSPECTION REPORTS:
• Inspection accountability
• Customizable, password-protected user login
• Technician's username is recorded with each test
• Trailer VIN entry with each inspection maintains more accurate record keeping
• PREVENTS RECURRING MISTAKES AND PROVIDES WALK-THROUGH EXPERT GUIDANCE:
• Built-in Diagnostic Message Center analyzes inspection results in real-time, providing users with immediate feedback and troubleshooting suggestions
• Detailed pass/fail circuit conditions (ground, open, crossed and short) will alert with specific values
• Provides real-time data and control
• Records multiple data points for each circuit including wattage, voltage and current
• Reads accurate current from 0-21A @ 1mA resolution
• RECORD AND ANALYZE INSPECTIONS RESULTS:
• Logs detailed pass/fail inspection reports
• Easily accessible report history allows technicians to analyze patterns for predictable failure points across all fleet service operations
• Upgradeable cloud-based option syncs an unlimited number of service locations with a central hub
• Email, print or export reports to PDF or XLS formats
• MILITARY-GRADE TABLET TESTED AGAINST::
• Salt Fog, Settling and Blowing Dust, Icing, Rain, Humidity, Immersion, Vibration, Dropping, High/Low Temperatures, and High Altitude

Innovative Products Of America - 5510A-L4RT8 - Includes

• 8" Rugged Tablet
• 2nd Gen 12-Button Remote Control
• Bluetooth Communication Module
• 5' Bluetooth Extension Cable
• 12' Gladhand Hoses with Handles
• 12' 7-Way Cable
• Power Cable
• 500mA Battery Charger
• Expanded Training Manual and Parts List Binder

Innovative Products Of America - 5510A-L4RT8 - Specifications

Brand Name	Innovative Products Of America
Manufacturer Part number	5510A-L4RT8
UPC	850049572026
Connection Type	7-Way Round Pin
Power Input	12/24V DC
Source Output	20A @ 12/24V DC
Battery Power	LiFePO4 Battery (Lithium Iron Phosphate)
Max. Operating Pressure	120 psi
Air Input	¼" NPT (120 psi max.)
Controls	Tablet, Remote or Manual
Tablet Size	8" Military-Grade Rugged Tablet
Tablet	Android 7.1
Tablet/Remote Range	100'
Bluetooth	4.0 or Newer
Face Shield	Steel with Dampers (Integrated)
Material	16 Gauge Powder-Coated Steel
Weight	56 lbs.
Dimension With Handle/Brackets	22" W x 31" H x 14.5" D
Dimension Without Handle/Brackets	17" W x 31" H x 14.5" D
Warranty	3-Year Limited Warranty - Free Lifetime Technical Support and Video Conference
CoO	USA
