General Tools & Instruments DCS500 | Video Inspection Scope

Video Inspection Camera/Borescope

Item Video Inspection Camera/Borescope, Wireless, Recording, Flexible-Obedient

Size 5 Inch (Display)

Display Type Color LCD TFT

General Tools & Instruments - DCS500 - Features

• The monitor (with a 5 Inch color LCD) can be detached from the pistol grip and the probe to receive video wirelessly
• The grip and monitor are IP54 splash-proof
• The included 1m long x 9 Millimeter diameter #P495-1N probe is IP67 oil-, dust- and waterproof
• The probe can be replaced by a 2 or 3M version (#P495-2N and #P495-3N) with the same camera head and specs. These probes include an adaptor to make them compatible wit
• Squeezing the trigger on the pistol grip manually records video clips and still photos onto the included 2GB MicroSD card or into the integral 128 MegaByte flash memory
• The console has a 1 to 4X zoom function, an adjustable Auto Power Off trigger, magnets on the back for attaching to a metal surfaces and a built-in microphone and speaker for recording and playing back voice-annotated video clips
• Scope View software and USB cable for organizing and viewing live and recorded photos and videos on any Windows PC
• The monitor and grip are powered by separate rechargeable Li-ion batteries or the included AC adaptor/charger
• TV Out jack and A/V cable for viewing live video on TV monitor
• Four probe tip accessories (magnetic pickup, pickup hook, 45 Degree mirror, thread protector ring)
• Choice of five menu language
• Camera Depth 1 Inch to 10 Foot
• Camera Field of View 60 Degree
• Camera Resolution 640 x 480 Pixels (VGA)
• Probe Size 0.35 Inch Diameter x 3.3 Foot Length
• Resolution 800 x 480 Pixels
• Operating temperature 32 to 11 Deg 3F at 5 to 95 Percent (RH)

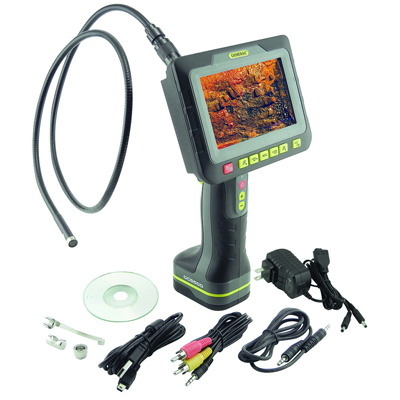

• Includes Detachable Wireless Monitor with LCD, Magnetic Back, Microphone, Speaker and Tripod Mount, Pistol Grip with Brightness Controls and Tripod Mount, #P495-1N Probe and #PT9 9 Millimeter Probe Tip Accessory, AC Adapter/Charger with 2-in-1 Charging Cable, 2 Gb Micro SD Memory Card, UBS and A/V Cable, Scopeview PC Interface/Media Management Software On Mini-Disc, A Signal Cable for Connecting the Grip and Monitor, Custom Hard Plastic Carrying Case

General Tools & Instruments - DCS500 - Additional Information

• Camera Depth 1 Inch to 10 Foot
• Camera Field of View 60 Degree
• Camera Resolution 640 x 480 Pixels (VGA)
• Probe Size 0.35 Inch Diameter x 3.3 Foot Length
• Resolution 800 x 480 Pixels
• Operating temperature 32 to 11 Deg 3F at 5 to 95 Percent (RH)
• Includes Detachable Wireless Monitor with LCD, Magnetic Back, Microphone, Speaker and Tripod Mount, Pistol Grip with Brightness Controls and Tripod Mount, #P495-1N Probe and #PT9 9 Millimeter Probe Tip Accessory, AC Adapter/Charger with 2-in-1 Charging Cable, 2 Gb Micro SD Memory Card, UBS and A/V Cable, Scopeview PC Interface/Media Management Software On Mini-Disc, A Signal Cable for Connecting the Grip and Monitor, Custom Hard Plastic Carrying Case

General Tools & Instruments - DCS500 - Specifications

Order Part Number	GNDCS500
Item Description	Video Inspection Scope
Manufacturer Long Name	General Tools & Instruments LLC
Manufacturer Part Number	DCS500
Product Group Id	GN01
MS Bin Code	AD097
Default Selling Unit	EA
UNSPSC	41111716

General Tools & Instruments - DCS500 - Documents and Downloads

General Tools & Instruments DCS500 Additional Specification Sheet	Click to View
General Tools & Instruments DCS500 Installation Instructions	Click to View
General Tools & Instruments DCS500 MSDS / SDS Document	Click to View
