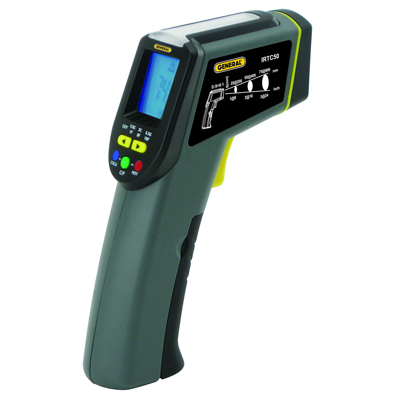

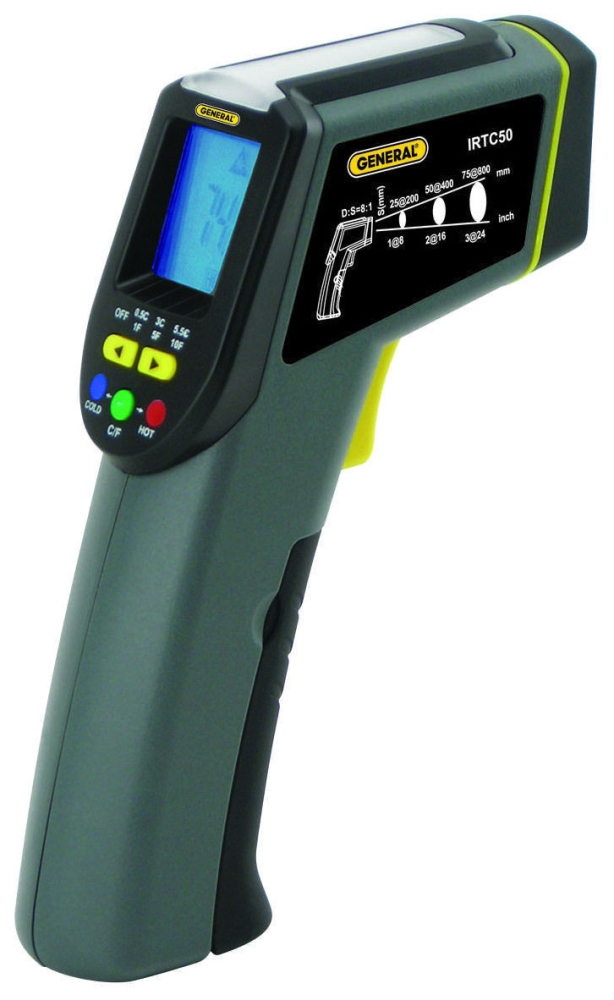

General Tools & Instruments IRTC50 | Thermometer Heat Loss Infared

Scanning Infrared Thermometer

Minimum Measurable Temperature -40 Deg F

Maximum Measurable Temperature 428 Deg F

Selectable Scale Deg F

General Tools & Instruments - IRTC50 - Features

• In scanning mode, the color of the light panel (red, green or blue) and the beeper speed (fast, silent or slow) indicate whether the target is above, within or below the reference temperature the set point bandwidth
• Choice of three set point bandwidths 1, 5 and 10 Deg F
• Squeezing and holding the trigger captures a reference temperature and launches scan mode
• Unique Star Burst laser targeting system helps approximate the target/spot size
• Auto power off
• RoHS Compliant
• Set-point band options of 1°, 5° and 10°F(0.5°, 3°, 5.5°C)
• Red or blue light and fast or slow buzzer signalwhen the target temperature is above or belowthe reference temperature ± the set-point
• Fast response time of 0.5 seconds
• Unique Star Burst laser targeting system helpsapproximate the target spot size
• Large backlit LCD
• Automatic temperature "hold" when the triggeris released
• Display and backlight turn off after15 seconds of inactivity
• Auto-power off after 60 seconds of inactivity
• Includes battery and user’s manual
• Resolution 0.1 Deg F/Deg C
• Accuracy +/- 4 Deg F/C or +/- 2 Percent (Reading) Above 32 Deg F, +/- 3 Deg F/C or +/- 3 Percent (Reading) Below 32 Deg F
• Field of View 8:1
• Battery Voltage 9 Volt
• Size 5.31 Inch x 1.65 Inch x 6.81 Inch
• Operating Temperature Range 32 to 104 Deg F
• Supplied with Battery Yes
• Emissivity Fixed at 0.95
• Display Type Large Backlit LCD
• Display Resolution 0.1 Deg (F/C)
• Response Time 0.5 Second
• Laser Power Less than 3 Milliwatt (Class 3R)
• Applicable Standards CE

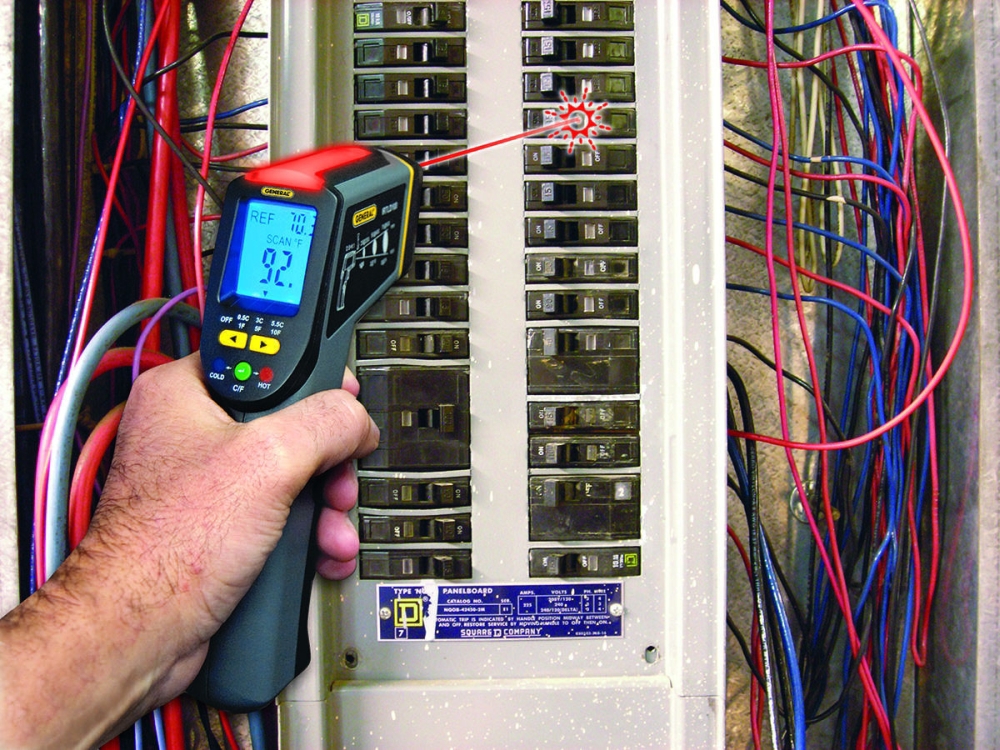

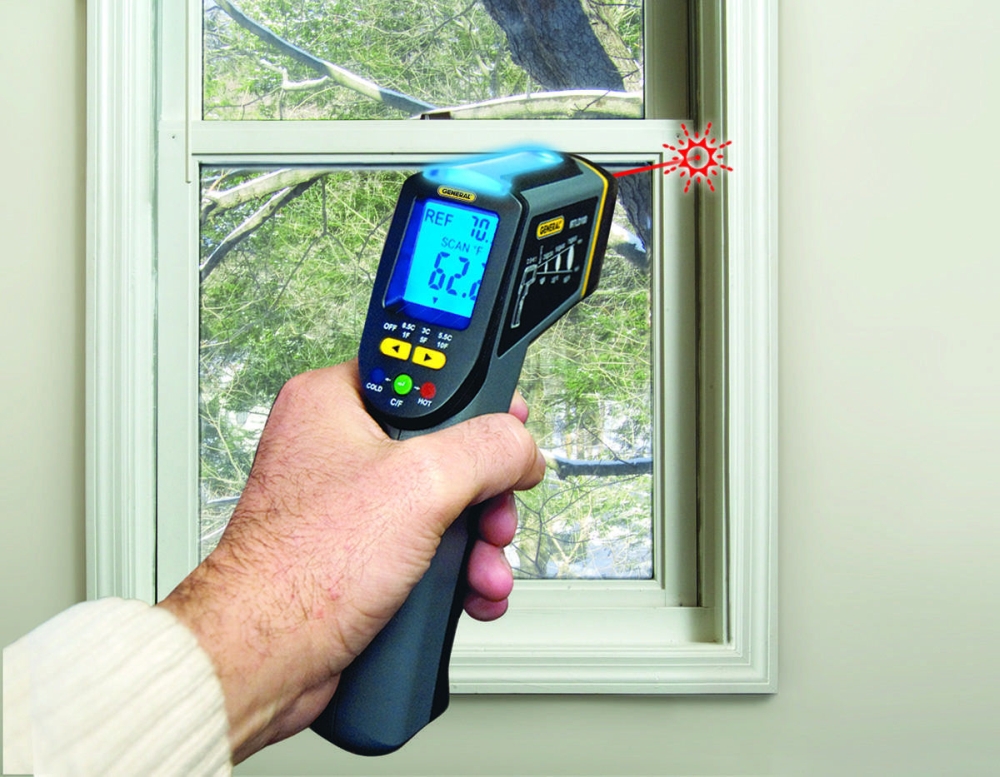

• This thermometer is a safe and simple way to determine hidden hot and cold spots from a distance. Perfect for HVACR technicians, electricians and plumbers, the device allows its user to automatically acquire a reference temperature and determine, with its tri-colored light system and audible alarm, whether subsequent readings are above or below the set-point value. With its STAR BURST laser targeting system, the IRTC50 enables the user to approximate the size of the measured spot, resulting in a quick and accurate temperature measurement without the uncertainty of a traditional IR thermometer.

General Tools & Instruments - IRTC50 - Additional Information

• Emissivity Fixed at 0.95
• Display Type Large Backlit LCD
• Display Resolution 0.1 Deg (F/C)
• Response Time 0.5 Second
• Laser Power Less than 3 Milliwatt (Class 3R)
• Applicable Standards CE

General Tools & Instruments - IRTC50 - Specifications

Order Part Number	GNIRTC50
Item Description	Thermometer Heat Loss Infared
Manufacturer Long Name	General Tools & Instruments LLC
Manufacturer Part Number	IRTC50
Product Group Id	GN01
Country of Origin	CN
Harmonization Code	90275080
MS Bin Code	AD133
Default Selling Unit	EA
UNSPSC	41112224
