Electronic Specialties Inc 230 | Short Audible Trouble Shooter
Electronic Specialties Inc 230 | Short Audible Trouble Shooter
Accept Credit Cards
Official PayPal Seal

Electronic Specialties Inc 230 | Short Audible Trouble Shooter

https://www.autotoolworld.com/assets/images/Electronic Specialties Inc_150px.jpg
Availability: In Stock
Part Number: ES230
0 Review(s)
Write a Review
$123.12
Retail Price:$138.06
Your Savings:$14.94(11%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

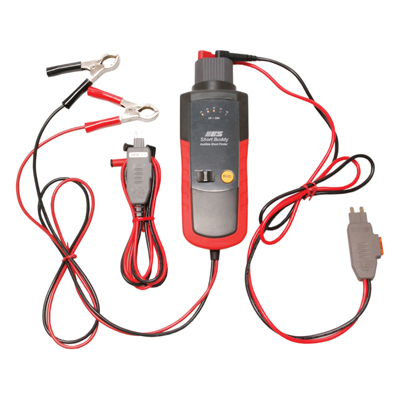

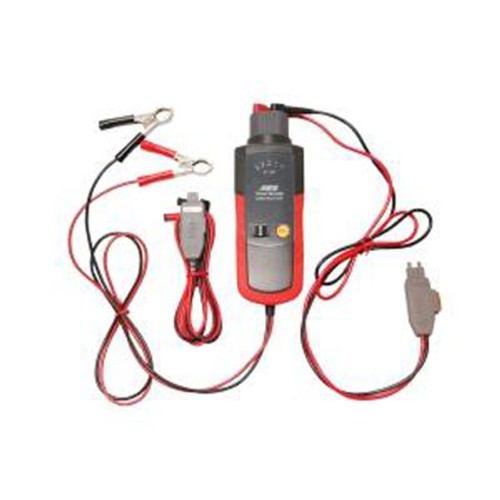

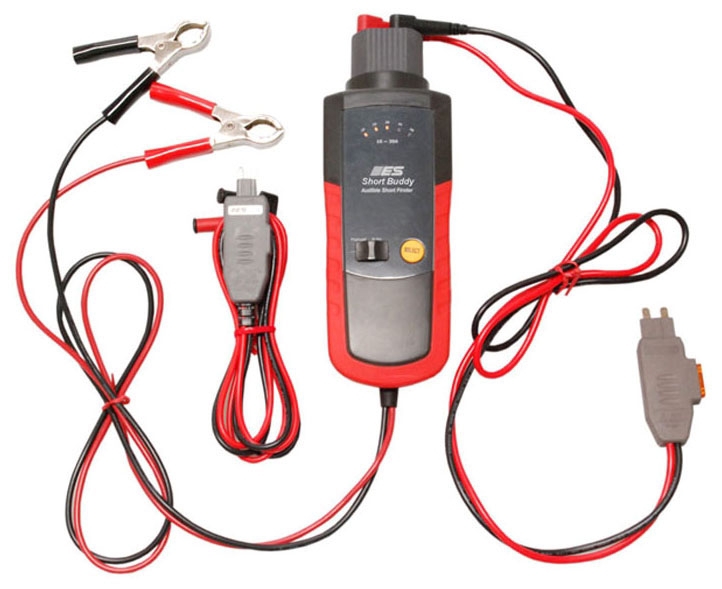

Electronic Specialties Inc 230 | Short Audible Trouble Shooter

  • Audible Trouble Shooter
  • Item Audible Trouble Shooter
  • Settable Amp Level of 10, 15, 20, 25 and 30 Amp
  • Two Modes (1) Auto Mode, Circuit Gets Re-Powered in 10 Second, (2) Manual Mode, User Re-Sets Power to Circuit



    • https://www.autotoolworld.com/assets/icons/features.jpg

    Electronic Specialties Inc - 230 - Features

    • Short Buddy helps you find the short! This unique tool connects at the fuse panel and becomes in series with the test circuit
    • A system of audible beeps helps you find the problem and permit hands free troubleshooting
    • Have a dead short? Short Buddy gives you continuous re-set/re-power capability, a real time saver
    • While you push, pull, tug and grab wires, Short Buddy is always watching the current level
    • If your tug causes the dead short again, Short Buddy opens the circuit for 10 seconds, then re-applies power to the circuit
    • Re-powering the circuit can also be done manually
    • Another big feature! If the circuit current changes by more than approximately
    • 3 Amps, you’ll hear an audible beep
    • If you pull on the problem wire or connector, you’ll hear the beep
    • When working under the dash or in a difficult area this is a huge help
    • Great tool for shorts, intermittent drop outs and flaky grounds and connections
    • A real time saver
    • Short Buddy helps you find the short. This unique tool connects at the fuse panel and becomes in series with the test circuit. A system of audible beeps helps you find the problem and permit hands free troubleshooting. Have a dead short? Short Buddy gives you continuous re-set/re-power capability, a real time saver. While you push, pull, tug and grab wires, Short Buddy is always watching the current level. If your tug causes the dead short again, Short Buddy opens the circuit for 10 seconds, then re-applies power to the circuit. Re-powering the circuit can also be done manually.
    • Short Buddy helps you find the short! This unique tool connects at the fuse panel and becomes in series with the test circuit
    • A system of audible beeps helps you find the problem and permit hands free troubleshooting
    • Have a dead short? Short Buddy gives you continuous re-set/re-power capability, a real time saver
    • While you push, pull, tug and grab wires, Short Buddy is always watching the current level
    • If your tug causes the dead short again, Short Buddy opens the circuit for 10 seconds, then re-applies power to the circuit
    • Re-powering the circuit can also be done manually



    https://www.autotoolworld.com/assets/icons/overview.jpg

    Electronic Specialties Inc - 230 - Overview

    • SHORT BUDDY
    • Helps you find these problems!
    • Locating Shorts To Ground
    • Intermittent shorts
    • Intermittents caused by loose connections
    • Blowing Fuses??
    • Short Buddy helps you find the short! This unique tool connects at the fuse panel and becomes in series with the test circuit. A system of audible beeps helps you find the problem and permit hands free troubleshooting. Have a dead short? Short Buddy gives you continuous re-set/re-power capability, a real time saver. While you push, pull, tug and grab wires, Short Buddy is always watching the current level. If your tug causes the dead short again, Short Buddy opens the circuit for 10 seconds, then re-applies power to the circuit. Re-powering the circuit can also be done manually.
    • Another big feature! If the circuit current changes by more than approximately .3 Amps, you’ll hear an audible beep. If you pull on the "problem" wire or connector, you’ll hear the beep. When working under the dash or in a difficult area this is a huge help. Great tool for shorts, intermittent drop outs and flaky grounds & connections. A real time saver.
    • Settable Amp Levels of 10, 15, 20, 25 and 30 Amps
    • Automatically opens the circuit in event of overload
    • In Auto mode, circuit gets re-powered in 10 seconds
    • In Manual mode, user re-sets power to circuit



    https://www.autotoolworld.com/assets/icons/information.jpg

    Electronic Specialties Inc - 230 - Additional Information

    • Settable Amp Level of 10, 15, 20, 25 and 30 Amp
    • Two Modes (1) Auto Mode, Circuit Gets Re-Powered in 10 Second, (2) Manual Mode, User Re-Sets Power to Circuit



    https://www.autotoolworld.com/assets/icons/specs.jpg

    Electronic Specialties Inc - 230 - Specifications

    Order Part NumberES230
    Item DescriptionShort Audible Trouble Shooter
    Manufacturer Long NameElectronic Specialties, Inc.
    Manufacturer Part Number230
    Product Group IdES00
    Country of OriginCN
    Harmonization Code90303300
    UNSPSC25191800



    https://www.autotoolworld.com/assets/icons/video.jpg

    Electronic Specialties Inc - 230 - Videos

    Electronic Specialties Inc 230 Video URLClick to View



    https://www.autotoolworld.com/assets/icons/pdf.jpg

    Electronic Specialties Inc - 230 - Documents and Downloads

    Electronic Specialties Inc 230 Catalog PagesClick to View
