Electronic Specialties Inc 595 | Pro Auto Digital Multimeter Tester With PC Interface

Multimeter with PC Interface

Electronic Specialties Inc - 595 - Features

• The 595 is a premier automotive diagnostic tool
• It is equipped with the latest testing capabilities, including Milliseconds Pulse Width, for measuring the on-time of fuel injectors
• The 595 features a huge LCD display w/bargraph for easy viewing
• This meter can even be interfaced to your PC or notebook computer for enhanced diagnostics and data presentation

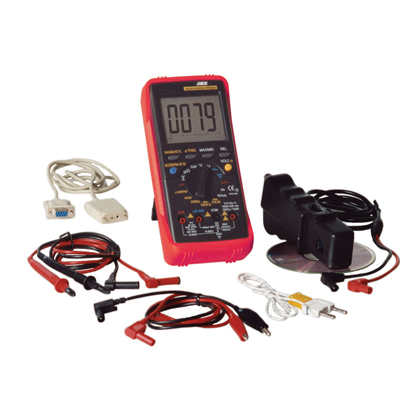

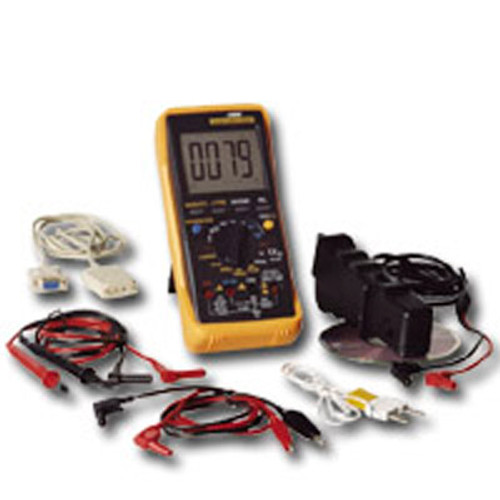

• The software and computer interface cable are included free! The 595 includes two sets of test leads, RPM pick-up, temperature probe, software CD, interface cable, protective holster, 9 volt battery, instructions manual and hard storage case
• Inductive RPM pick-up features a five position, adjustable sensitivity switch
• MS-Pulse Width function to test the on-time of fuel injectors
• RS-232 PC Interface - Connect to your PC, CD/software included free of charge for viewing data on your computer.
• Min/Max function captures the high or low readings for better diagnostic capability
• Huge 2 inch high LCD display w/Bargraph and backlighting. Largest of any automotive meter!
• Blow molded case included.
• Desirable fused 20 Amp test range
• Auto Power-Off - saves battery life
• 4 Step Adjustable Trigger Level on RPM, Dwell, MS-Pulse Width, Duty Cycle and Frequency test ranges.
• Special access panel for fuses and battery
• Includes: Probe style test leads; Alligator Clip style test leads; Temperature Probe;RS-232 PC interface cable; Free CD software- Windows compatible; inductive RPM pickup with adjustable sensitivity; Blow mold case for storage.
• 57 Test Ranges
• Test functions: AC/DC Volts ms-Period AC/DC Amps ms-Pulse Width Ohms Temperature Capacitance Diode Test Frequency Continuity Duty Cycle
• MS-Pulse Width function to test the on-time of fuel injectors.
• RS-232 PC Interface - connect to your PC, CD/software included free of charge.
• Min/Max function captures the high or low readings for better diagnostic capability.
• Huge 2 inch high LCD display with bar graph and backlighting. Largest of any auto meter.
• Blow molded case included and packaged in 4 color box.
• Desirable fused 20 Amp test range.

Electronic Specialties Inc - 595 - Overview

• The 595 is a premier automotive diagnostic tool. It is equipped with the latest testing capabilities, including Milliseconds Pulse Width, for measuring the on-time of fuel injectors. The 595 features a huge LCD display w/bargraph for easy viewing. This meter can even be interfaced to your PC or notebook computer for enhanced diagnostics and data presentation. The software and computer interface cable are included free! The 595 includes two sets of test leads, RPM pick-up, temperature probe, software CD, interface cable, protective holster, 9 volt battery, instructions manual and hard storage case. Inductive RPM pick-up features a five position, adjustable sensitivity switch.
• TEST RANGES
• DC Volts: 0-400mV, 4V, 40V, 400V, 1000V
• AC Volts: 0-400mV, 4V, 40V, 400V, 750V
• DC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A
• AC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A
• Ohms: 0-400, 4K, 40K, 400K, 4M, 40M
• Capacitance: 0-40nF, 400nF, 4uF, 40uF, 100uF
• RPM 4: 0-4,000 RPM, 12,000 RPM x 10
• RPM2/DIS: 0-4,000 RPM, 6,000 RPM x 10
• Dwell: 1, 2, 3, 4, 5, 6, 8, 10, & 12 cyl.
• Frequency: 0-5Hz, 50Hz, 500Hz, 5kHz, 30kHz
• Duty Cycle: 0.1% - 99.9%
• mS Pulse Width: 2.0ms - 10.0ms
• Period: 2.0ms - 20.0ms
• Temperature: -4F to 1400F, -20C to 760C
• Continuity: Audible Beep
• Diode Test: Diode Test

Electronic Specialties Inc - 595 - Additional Information

• Parameter Measured AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Speed Rating, Frequency, Duty Cycle, Dwell Angle, Pulse Width, Period, Continuity Test, Diode Test
• Test Range 0 to 400 Millivolt, 4 Volt, 40 Volt, 400 Volt, 1000 Volt AC/DC Volt, 0 to 400 Microamp, 4 Milliamp, 40 Milliamp, 400 Milliamp, 4 Amp, 20 Amp AC/DC Amp, 0 to 400 Ohm, 4 Kilo Ohm, 40 Kilo Ohm, 400 Kilo Ohm, 4 Mega Ohm, 40 Mega Ohm Resistance, 0 to 40 Nanofarad, 400 Nanofarad, 4 Microfarad, 40 Microfarad, 100 Microfarad Capacitance, 0 to 4000 RPM, 12000 RPM x 10, 0 to 4000 RPM, 6000 RPM x 10 Speed Rating, 1 Cylinder, 2 Cylinder, 3 Cylinder, 4 Cylinder, 5 Cylinder, 6 Cylinder, 8 Cylinder, 10 Cylinder, 12 Cylinder Dwell, 0 to 5 Hertz, 50 Hertz, 500 Hertz, 5 Kilo Hertz, 30 Kilo Hertz Frequency, 0.1 to 99.9 Percent Duty Cycle, 2 to 10 Millisecond Pulse Width, 2 to 20 Millisecond Period, -4 to 1400 Deg F, -20 to 760 Deg C Temperature, Audible Beep Audible Beep, Diode Test
• Display Type Huge LCD Display with Analog Barograph, Large Digit and Brilliant Backlighting

Electronic Specialties Inc - 595 - Specifications

Order Part Number	ES595
Item Description	Pro Auto Digital Multimeter Tester With PC Interface
Manufacturer Long Name	Electronic Specialties, Inc.
Manufacturer Part Number	595
Product Group Id	ES00
Country of Origin	CN
Harmonization Code	90303100
UNSPSC	41113630
