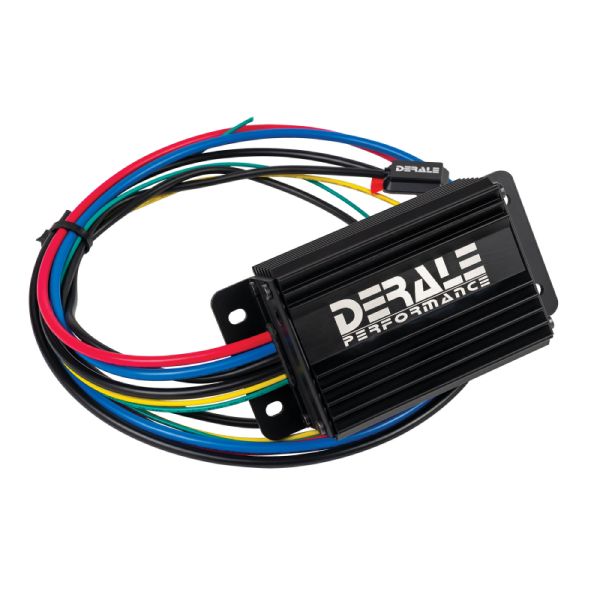

Derale Performance 66459 | Pwm Fan Controller-70 Amp Capacity 16797

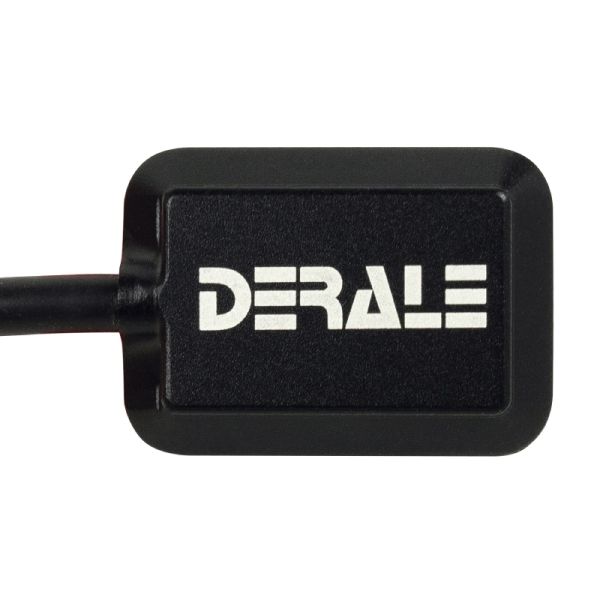

PWM Fan Controller, Flush surface mount sending unit

Derale Performance - 66459 - Product Categories

• Auto Parts
• Air & Fuel Delivery
• Additional Components

Derale Performance -66459 - Overview

• Derale Performance is changing the rules of engine temperature control with Smart Technology brought to your car's cooling system through Derale's New Digital PWM Fan Controller. Historically, cooling fans run at 100%, even when less airflow is needed, constantly turning on and off as the engine temperature changes. This REACTION-based temperature control system causes constant amperage spikes, excessive noise and premature wear. The Derale PWM fan controller continuously monitors your engine's temperature, therefore CONTROLLING the temperature and increasing the vehicles cooling efficiency, while reducing the amps used to do so. Here's how it works. The controller monitors your engine temperature via the side of the radiator, therefore providing a more accurate reading for your cooling system. Using Soft Start Technology, fans ramp up slowly which eliminates harmful AMP spikes. Our new control will keep your fan/s running for an additional 20 seconds after you turn your vehicle off. The unit will continuously monitor your engine's temperature and operate the fans at the optimum fan rate as needed between 1 to 100%. The net result the electric fans often only run between 40-60% to keep your engine cool. Additional benefits include reduced fan speeds which means reduced fan noise, which tends to compete with that sweet sound of your engine! This multi-fan controller has a built-in A/C Over-ride circuit and is designed to control as many 12 volt brushed electric fans as desired, up to 70 Amps combined. Even better, installation and calibration is a snap. It simply wires in-between your vehicle's battery and electric fans.

Derale Performance - 66459 - Specifications

• Specifications
• Amp Rating: 70 amp
• Width: 3"
• Length: 5-13/16"
• Depth: 1-5/8"
• Pulse Width Modulation controls fan(s) speed from 0-100%
• Soft start technology
• Constantly adjusts fans speed to maintain the desired temperature
• Reduced fan noise
• Controls multiple electric fans up to 70amp capacity
• 20-second cooldown timer when the vehicle is turned off
• Black Finned, 6061 aluminum housing
• Includes automatic resetting circuit breaker
• Air conditioning override circuit built-in
• Built-in protections: Short circuit, Over amperage, Low voltage, High voltage, Reverse polarity, Over temperature & Anti flyback

Derale Performance - 66459 - General Specifications

Brand Name	Derale Performance
Manufacturer Part Number	66459
Item Description	Pwm Fan Controller-70 Amp Capacity 16797
Net Weight	1.63
Height	4
Width	7
Depth	2
