Derale Performance 20245 | Transmission Cooler

A step up from Tube & Fin type coolers

Derale Performance - 20245 - Product Categories

• Auto Parts
• Transmissions - Shifters - Components
• Transmission Components

Derale Performance - 20245 - Overview

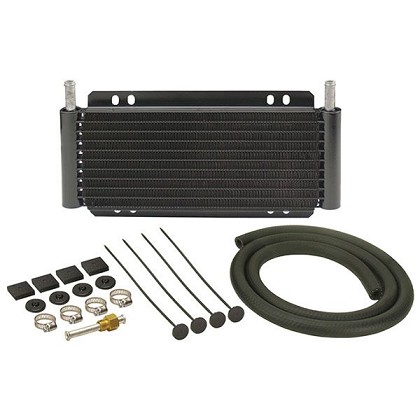

• A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
• Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
• Extruded plastic cooling fin guards
• Improves transmission performance
• Sturdy furnace-brazed aluminum construction
• 9 row cooler design
• 3/4" embossed turbulators maximize cooling & minimize pressure drop
• 11/32" hose barb inlets
• 15500 GVW rated
• Complete hardware kit included

Derale Performance - 20245 - Specifications

• Cooler style: Plate & Fin
• Construction: Aluminum
• Inlet size: 11/32" barb
• GVW: 15500

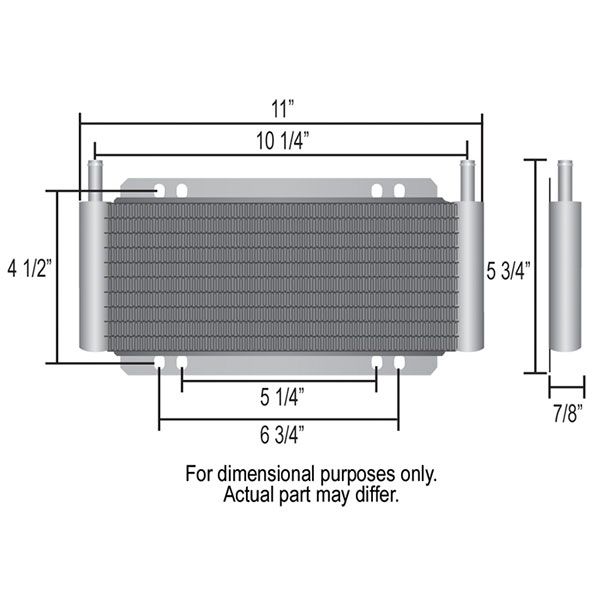

• Width: 11"
• Height: 5-3/4"
• Depth: 7/8"
• Inlet dim: 10-1/4"
• Mounting: 6-3/4" x 4-1/2"
• Hose size: 11/32"
• Hose length: 4'

Derale Performance - 20245 - Package Contents

• 11 inches L x 5.75 inches H x .875 inch thickness.

Derale Performance - 20245 - General Specifications

Brand Name	Derale Performance
Manufacturer Part Number	20245
Item Description	Transmission Cooler
Net Weight	1.0
Height	14
Width	8
Depth	4

Derale Performance - 20245 - Warranty

Warranty

365 days warranty. Made in USA
