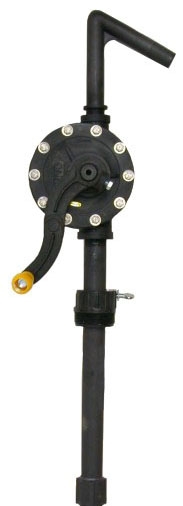

Zeeline By Milton 1014R | Rotary Pump Hand For Harsh Chemicals

Hand Pump

Item Hand Pump, 2-Vane Rotary

Material PPS (Body), FKM (Seal), PTFE (Gasket)

Color Black

Zeeline By Milton - 1014R - Features

• Lightweight and corrosion resistant
• Non-Stick seals
• Bung adapter included
• Dispenses 8 Ounce per revolution
• Dispenses 1-gallon per 16 revolutions
• Lightweight and corrosion resistant
• 2- vane Rotary style hand pump designed to thread into the 2" bung opening on 15-55 gallon drums.
• Adjustable bung adaptor allows for easy height adjustment.
• Constructed from Polyphenylene Sulfide with FKM seals and PTFE gaskets, this pump is ideal for aggressive chemicals, chlorinated solvents, and hydrocarbons and more (consult chemical compatibility chart for specific compatibility concerns).
• Spout Type 1 Inch Barb
• Inlet Size 1 Inch BSP
• Outlet Size 3/4 Inch BSP
• Pickup Tube Diameter 1-1/4 Inch
• Used On Chlorinated Solvent, Aromatic and Aliphatic, Hydrocarbon
• Application Automotive, Agricultural, Industrial
• This is a 2- vane rotary style hand pump designed to thread into the 2 inch bung opening on 15-55 gallon drums. The adjustable bung adaptor allows for easy height adjustment. Constructed from Polyphenylene Sulfide with FKM seals and PTFE gaskets, this pump is ideal for aggressive chemicals, chlorinated solvents, and hydrocarbons and more (consult chemical compatibility chart for specific compatibility concerns).

Zeeline By Milton - 1014R - Additional Information

• Material PPS (Body), FKM (Seal), PTFE (Gasket)
• Color Black
• Spout Type 1 Inch Barb
• Inlet Size 1 Inch BSP
• Outlet Size 3/4 Inch BSP
• Pickup Tube Diameter 1-1/4 Inch
• Used On Chlorinated Solvent, Aromatic and Aliphatic, Hydrocarbon
• Application Automotive, Agricultural, Industrial

Zeeline By Milton - 1014R - Specifications

Order Part Number	NS1014R
Item Description	Rotary Pump Hand For Harsh Chemicals
Manufacturer Long Name	National-Spencer, Inc. (Zee Line)
Manufacturer Part Number	1014R
UPC	015954010159
Product Group Id	NS00
Country of Origin	TW
Harmonization Code	-
MS Bin Code	DD014
Body	PPS
Seal	FKM
Gaskets	PFTE
Color	Black
Vanes	PPS
Spout- 1" hose barb	1 1/4" O.D. pickup tube
Outlet	3/4" BSP
Inlet	1" BSP

Zeeline By Milton - 1014R - Package Information

Shipping Height	6.000 Inch
Shipping Length	16.000 Inch
Shipping Quantity	1 per Pack
Shipping Weight	5.000 Pound
Shipping Width	12.000 Inch
