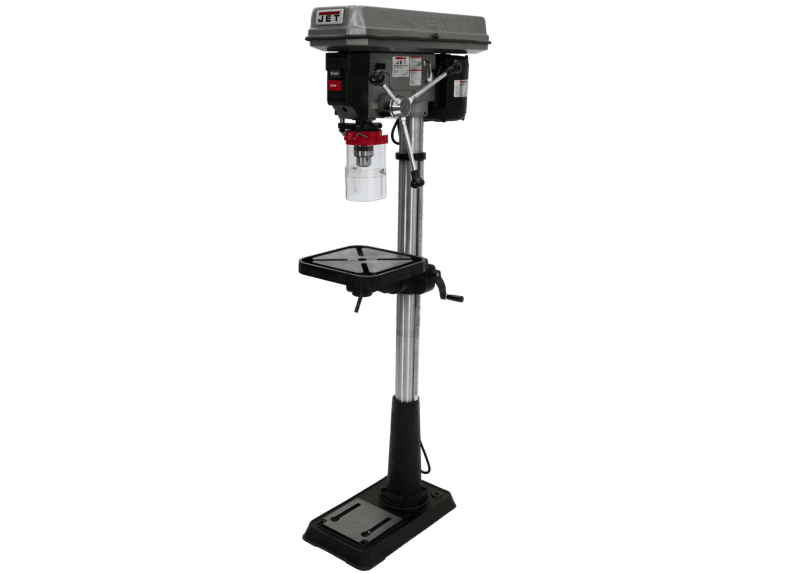

Wilton 354400 | J-2500, 15" Floor Model Drill Press

"Accuracy, stability and versatility are the benchmark features of the JET 15"" and 20"" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty."

  • Floor Model Drill Press
  • Speed Rating 200 to 3630 RPM
  • Drilling Capacity 1/2 Inch
  • Input Supply Rating 115 Volt AC 1-Phase
  • Weight 167 Pound
  • Type Step Pulley, Belt Drive
  • Overall Dimensions 31 Inch x 13 Inch x 63 Inch
  • Drills to Centre of Circle 15 Inch
  • Drilling Capacity Cast Iron 5/8 Inch
  • Drilling Capacity 1/2 Inch (Mild Steel)
  • Distance Column to Spindle 7-1/2 Inch
  • Number of Spindle Speeds 16
  • Column Diameter 2-7/8 Inch
  • Spindle Taper MT-2 TPI
  • Spindle Travel 3-3/8 Inch
  • Spindle Distance to Base 48 Inch
  • Spindle Distance to Table 24 Inch
  • Table Travel 24 Inch
  • Table Size 11-1/2 Inch Length x 11-1/2 Inch Width



    • https://www.autotoolworld.com/assets/icons/features.jpg

    Wilton Tools - 354400 - Features

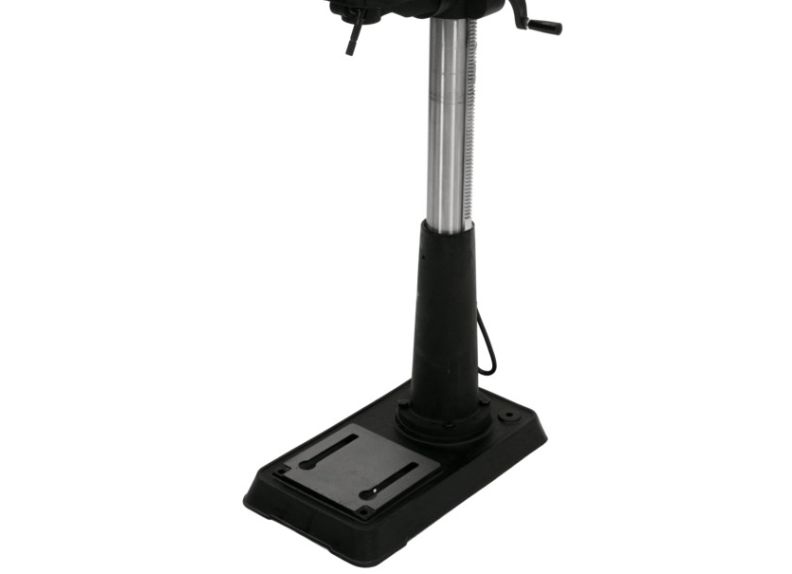

    • Constructed to provide a solid base for drilling
    • The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy

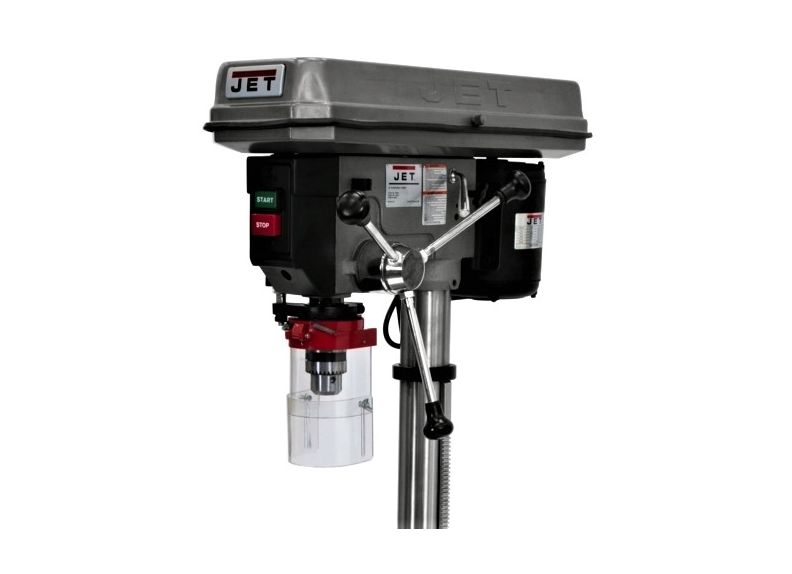

    • Cast Iron head
    • Large ground steel column for maximum head and table support
    • Large quill allows greater accuracy
    • 3-1/8 Inch stroke for deep hole applications
    • Accurate depth stop for precise hole depths
    • Table tilts 45 Degree
    • Telescoping safety spindle guard



    https://www.autotoolworld.com/assets/icons/specs.jpg

    Wilton Tools - 354400 - Specifications

    Order Part NumberWC354400
    Item Description"J-2500 15"" Flr Model Drill Press"
    Manufacturer Long NameJPW Industries (JET Tools)
    Manufacturer Part Number354400
    Product Group IdWC00
    Country of OriginTW
    Harmonization Code-
    Bin CodeGBLDG
    Default Selling UnitEA
    Part Number354400
    UNSPSC23241801



    https://www.autotoolworld.com/assets/icons/package_includes.jpg

    Wilton Tools - 354400 - Package Information

    Individual Item Weight167.000 Pound



    https://www.autotoolworld.com/assets/icons/pdf.jpg

    Wilton Tools - 354400 - Documents and Downloads

    Wilton Tools 354400 Catalog Pages(s)Click to View
    Wilton Tools 354400 Installation InstructionsClick to View
