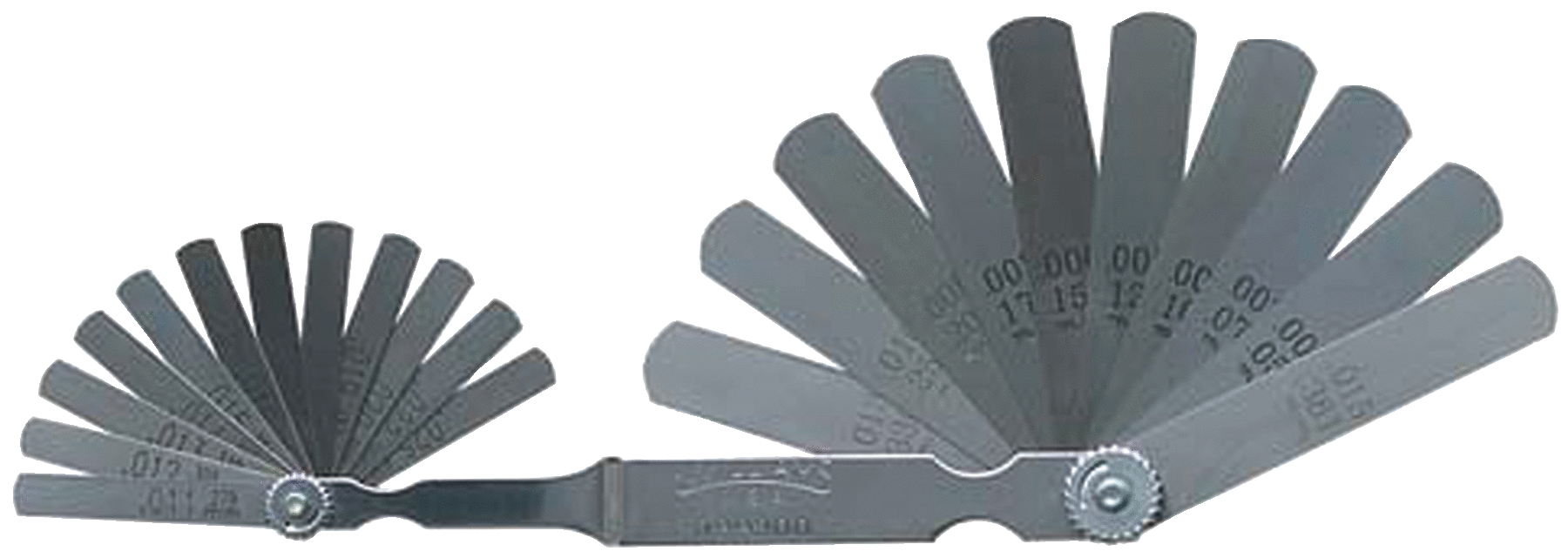

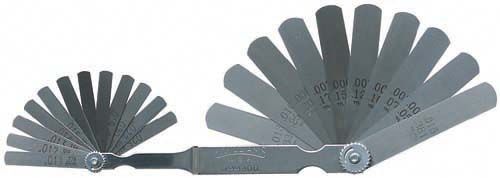

Williams GS-3 | Combination Feeler Gauge Set

Contains total of 22 blades

10 blades 3" x 1/2" in the following thicknesses: .002, .003, .004, .005, .006, .007, .008, .010, .013, .015

12 blades 1-3/4" x 1/4" in the following thicknesses: .011, .012, .013, .014, .015, .016, .017, .018, .019, .020, .022, .025

Overall length 5"

Both decimal and equivalent metric size etched in each blade

Gauges supplied in holder with knurled lock-nut which allows the user to select the required blade size and lock it into position

• Contains total of 22 blades.
• 10 blades 3" x 1/2" in the following thicknesses: .002, .003, .004, .005, .006, .007, .008, .010, .013, .015.
• 12 blades 1-3/4" x 1/4" in the following thicknesses: .011, .012, .013, .014, .015, .016, .017, .018, .019, .020, .022, .025.
• Overall length 5".
• Both decimal and equivalent metric size etched in each blade.
• Gauges supplied in holder with knurled lock-nut which allows the user to select the required blade size and lock it into position.
• Thickness: .002 - .025
• Number of Blades: 22

Williams - GS-3 - Features

• Contains total of 22 blades
• 10 blades 3" x 1/2" in the following thicknesses: .002, .003, .004, .005, .006, .007, .008, .010, .013, .015
• 12 blades 1-3/4" x 1/4" in the following thicknesses: .011, .012, .013, .014, .015, .016, .017, .018, .019, .020, .022, .025

Williams - GS-3 - Specifications

Brand Name	Williams
Order Part Number	JHWGS-3
Category	Rules And Measures
Material	Steel - Carbon
Product Type	Precision Measure - Feeler Gauge - Set

Williams - GS-3 - Technical Details

Length	2-3/8 in
Weight (lb)	0,11 lb
Thickness	.002–.025 in
Number of Blades	22,22

Williams - GS-3 - Documents and Downloads

Williams GS-3 Specification Sheet	Click to View
Williams GS-3 Data Sheet	Click to View
