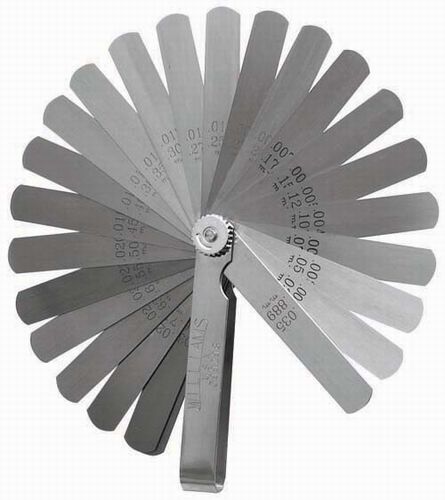

Williams GS-1 | Master Feeler Gauge Set

25 blades 3-5/16" x 1/2" in the following thicknesses: .0015, .002, .003, .004, .005, .006, .007, .008, .009, .010, .011, .012, .013, .014, .015, .016, .018, .020, .022, .024, .025, .028, .030, .032, and .035

Both decimal and equivalent metric size etched in each blade

Gauges supplied in holder with knurled lock-nut which allows the user to select the required blade size and lock it into position

• 25 blades 3-5/16" x 1/2" in the following thicknesses: .0015, .002, .003, .004, .005, .006, .007, .008, .009, .010, .011, .012, .013, .014, .015, .016, .018, .020, .022, .024, .025, .028, .030, .032, and .035.
• Both decimal and equivalent metric size etched in each blade.
• Gauges supplied in holder with knurled lock-nut which allows the user to select the required blade size and lock it into position.
• Thickness: .0015 - 1/32
• Number of Blades: 25

Williams - GS-1 - Features

• 25 blades 3-5/16" x 1/2" in the following thicknesses: .0015, .002, .003, .004, .005, .006, .007, .008, .009, .010, .011, .012, .013, .014, .015, .016, .018, .020, .022, .024, .025, .028, .030, .032, and .035
• Both decimal and equivalent metric size etc hed in each blade
• Gauges supplied in holder with knurled lock-nut which allows the user to select the required blade size and lock it into position

Williams - GS-1 - Specifications

Brand Name	Williams
Order Part Number	JHWGS-1
Category	Tools
Product Type	Tool Set

Williams - GS-1 - Technical Details

Length	2-3/8 in
Weight (lb)	0,19 lb
Thickness	.0015–1/32 in
Number of Blades	25,25

Williams - GS-1 - Documents and Downloads

Williams GS-1 Specification Sheet	Click to View
Williams GS-1 Data Sheet	Click to View
