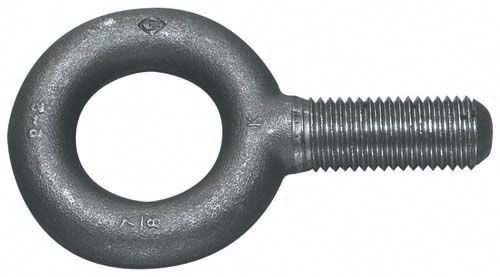

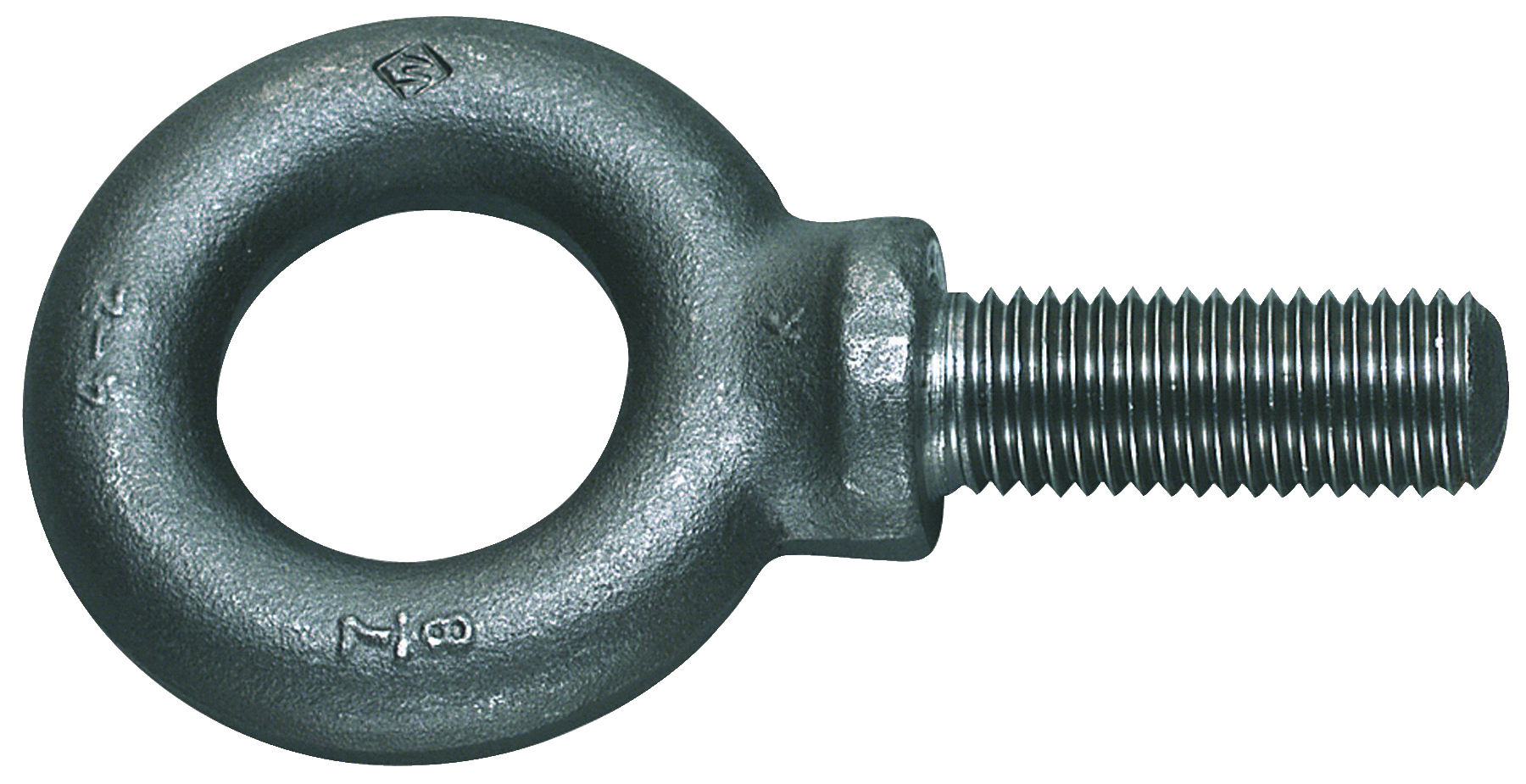

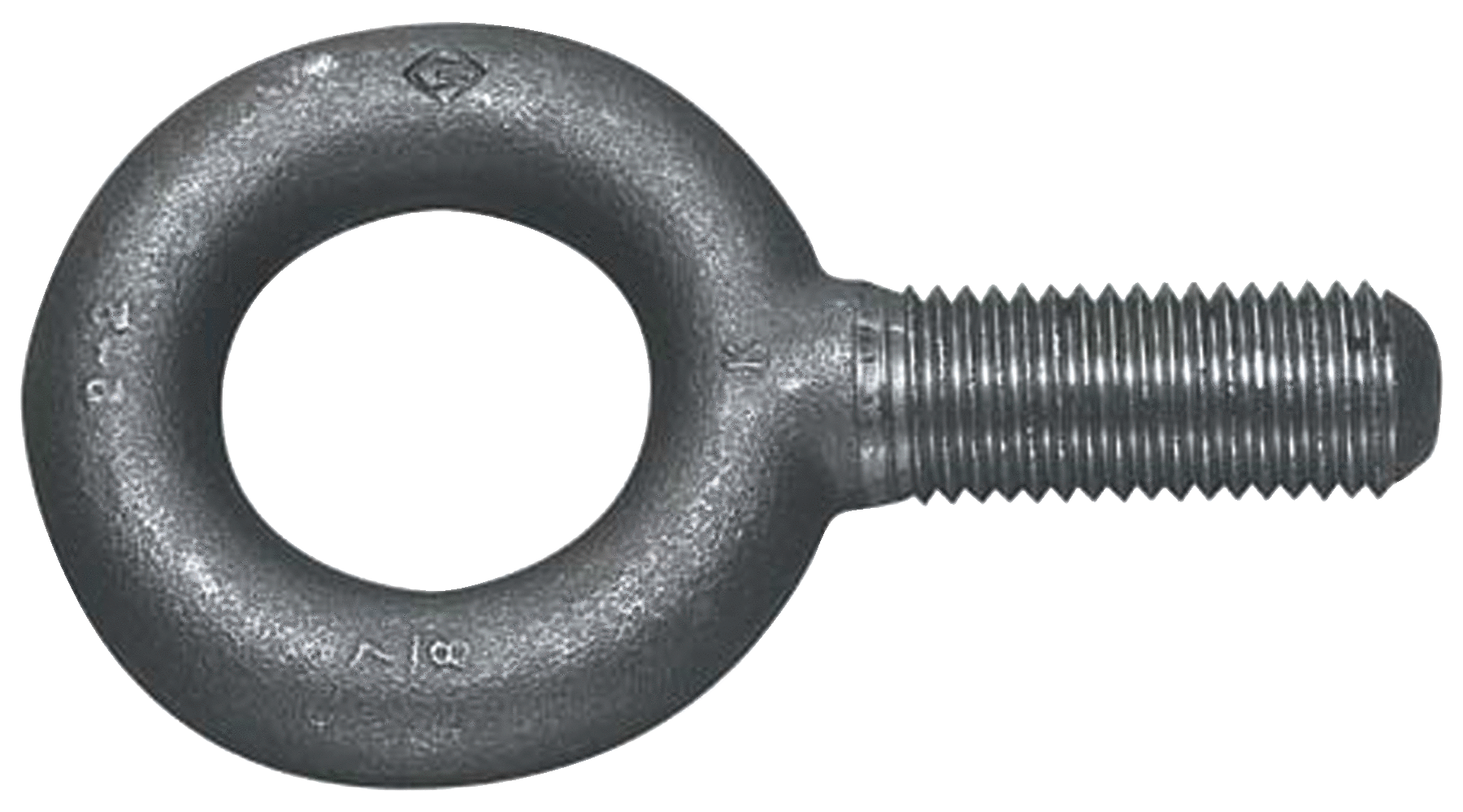

Williams EB-7T | Plain Eye Bolt - 5/8"

Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage

Each lot is tested and inspected to insure conformance to specifications

Available with UNC Class 2A thread only

Eyebolt shanks should never be undercut or eyebolt shank diameters reduced

Shoulder eye bolts must be properly seated (should bear firmly against the mating part) otherwise the working loads must be reduced substantially. A steel washer or spacer may be required for proper seating

To obtain greatest strength from an eye bolt, it must fit reasonably tight in the hole into which it is screwed to prevent unscrewing due to twist of cable. Tightness and seating must be checked after initial load

• Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage.
• Each lot is tested and inspected to insure conformance to specifications.
• Available with UNC Class 2A thread only.
• Eyebolt shanks should never be undercut or eyebolt shank diameters reduced.
• To obtain greatest strength from an eye bolt, it must fit reasonably tight in the hole into which it is screwed to prevent unscrewing due to twist of cable. Tightness and seating must be checked after initial load.
• Shank Diameter (Inches): 5/8
• Threads per Inch: 11
• Length of Shank (Inches): 1 3/4
• Inner Diameter (Inches): 1 5/16
• Head Cross-Section Thickness (Inches): 9/16
• Overall Length (Inches): 4 3/8
• Ultimate Strength (lbs): 20000

Williams - EB-7T - Features

• Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage
• Each lot is tested and inspected to insure conformance to specifications
• Available with UNC Class 2A thread only

Williams - EB-7T - Specifications

Brand Name	Williams
Order Part Number	JHWEB-7T
Category	Eye Bolts
Diameter-Thread	Imperial - Other
Drive Style	None
Finish-Plating	None
Hydrogen Embrittlement	Unknown
Length	5/8"
Material/Mech Props	Steel - Carbonitriding Hard
Metric/Inch	Inch
Point Style	Type Ca - Thread Former
Product Type-Head Style	Bolt - Eye
Rohs Compliant	Not Declared

Williams - EB-7T - Technical Details

Length	4-3/8 in
Weight (lb)	0,64 lb
Shank Diameter (in)	5/8 in
Threads per Inch	11 in
Maximum load capacity	4.000 lb
Shank width	1-3/4 in
Inner diameter	1-5/16 in
Head Cross-Section Thickness	9/16 in
Ultimate Strength	20000 lb
