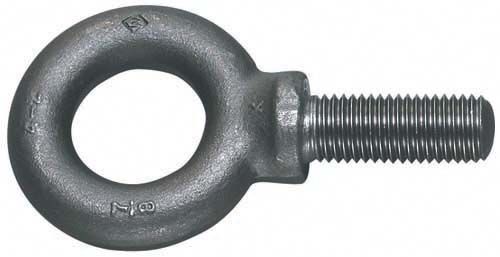

Williams EB-23T | Shoulder Eye Bolt - 3/8

Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage

Each lot is tested and inspected to insure conformance to specifications

Available with UNC Class 2A thread only

Eyebolt shanks should never be undercut or eyebolt shank diameters reduced

Shoulder eye bolts must be properly seated (should bear firmly against the mating part) otherwise the working loads must be reduced substantially. A steel washer or spacer may be required for proper seating

To obtain greatest strength from an eye bolt, it must fit reasonably tight in the hole into which it is screwed to prevent unscrewing due to twist of cable. Tightness and seating must be checked after initial load

• Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage
• Each lot is tested and inspected to insure conformance to specifications
• Available with UNC Class 2A thread only
• Eyebolt shanks should never be undercut or eyebolt shank diameters reduced
• Shoulder eye bolts must be properly seated (should bear firmly against the mating part) otherwise the working loads must be reduced substantially. A steel washer or spacer may be required for proper seating
• To obtain greatest strength from an eye bolt, it must fit reasonably tight in the hole into which it is screwed to prevent unscrewing due to twist of cable. Tightness and seating must be checked after initial load
• Shank Diameter (Inches): 3/8
• Threads per (Inches): 16
• Length of Shank (Inches): 1 1/4
• Inner Diameter (Inches): 1
• Head Cross- Section Thickness (Inches): 5/16
• Overall Length (Inches): 3 11/32
• Shoulder Width (Inches): 21/32
• Ultimate Strength (lbs): 6500

Williams - EB-23T - Features

• Forged from the best quality carbon steel, hardened and tempered to ensure increased strength and toughness and reduce liability or breakage
• Each lot is tested and inspected to insure conformance to specifications
• Available with UNC Class 2A thread only

Williams - EB-23T - Specifications

Brand Name	Williams
Order Part Number	JHWEB-23T
Diameter-Thread	3/8 - No Thread Pitch
Drive Style	None
Hydrogen Embrittlement	No
Ind Std/Cust Special	None
Length	1.1/4
Metric/Inch	Inch
Material/Mech Props	Steel
Product Type-Head Style	Bolt - Eye, Forged, Shoulder
Quality Standard	Commercial Release
Point Style	Rounded End
Rohs Compliant	Not Declared

Williams - EB-23T - Technical Details

Length	3-11/32 in
Weight (lb)	0,18 lb
Shank Diameter (in)	3/8 in
Threads per Inch	16 in
Shank width	1-1/4 in
Inner diameter	1 in
Head Cross-Section Thickness	5/16 in
Shoulder Width	21/32 in
Ultimate Strength	6500 lb

Williams - EB-23T - Documents and Downloads

Williams EB-23T Specification Sheet	Click to View
Williams EB-23T Data Sheet	Click to View
