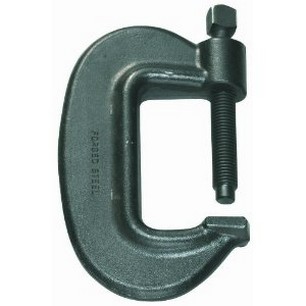

Williams CC-10AAW | Heavy Service C-Clamp, Deep Throat Design, Standard Screw, 5-3/8 To 10-3/8

Especially designed for heavy duty service, frames are drop-forged and heat-treated for maximum strength and reduced springing

Screws are made of special grade steel and are heat-treated for added strength not found in typical case-hardened screws

To tighten, the square headed screw must be turned with a wrench

Ideal for the most demanding applications such as construction and heavy industry

Square head screw allows tightening with wrench for extra heavy duty clamping requirements

Greater anvil surface for gripping larger work pieces and for greater stability

JH Williams 10 3/8-Inch heavy service C clamp is specially designed for heavy duty service and the frame is manufactured of drop forged and heat treated for maximum strength and reduced springing. The screws are made of special grade steel and are heat treated for added strength not found in typical case hardened screws. To tighten this C clamp the square headed screw must be turned with a wrench. It is ideal for the most demanding applications such as construction and heavy industry. It has a greater anvil surface for gripping larger work-Pieces and for greater stability.

• 10 3/8-Inch capacity
• Standard screw
• Specially designed for heavy duty service
• Screw are made of special grade steel and are heat treated for added strength not found in typical case hardened screws
• Ideal for the most demanding applications such as construction and heavy industry






Williams - CC-10AAW - Features

• Especially designed for heavy duty service, frames are drop-forged and heat-treated for maximum strength and reduced springing
• Screws are made of special grade steel and are heat-treated for added strength not found in typical case-hardened screws
• To tighten, the square headed screw must be turned with a wrench







Williams - CC-10AAW - Specifications

Brand Name	Williams
Order Part Number	JHWCC-10AAW
Category	Clamps And Vices
Grade	Duty - Heavy
Material	Metal
Product Type	Clamp - C








Williams - CC-10AAW - Technical Details

Maximum Clamping Capacity	10-3/8 in
Minimum Capacity	5-3/8 in
Throat Depth From Center	4-3/8 in
Exterior Body Width	8-1/2 in
Shank Diameter (in)	1-3/32 in
Minimum Test Load	35000 lb
Screw Length Under Head	7-3/4 in
Length	22.06 in
Width (in)	9.75 in
Weight (lb)	39 lb
