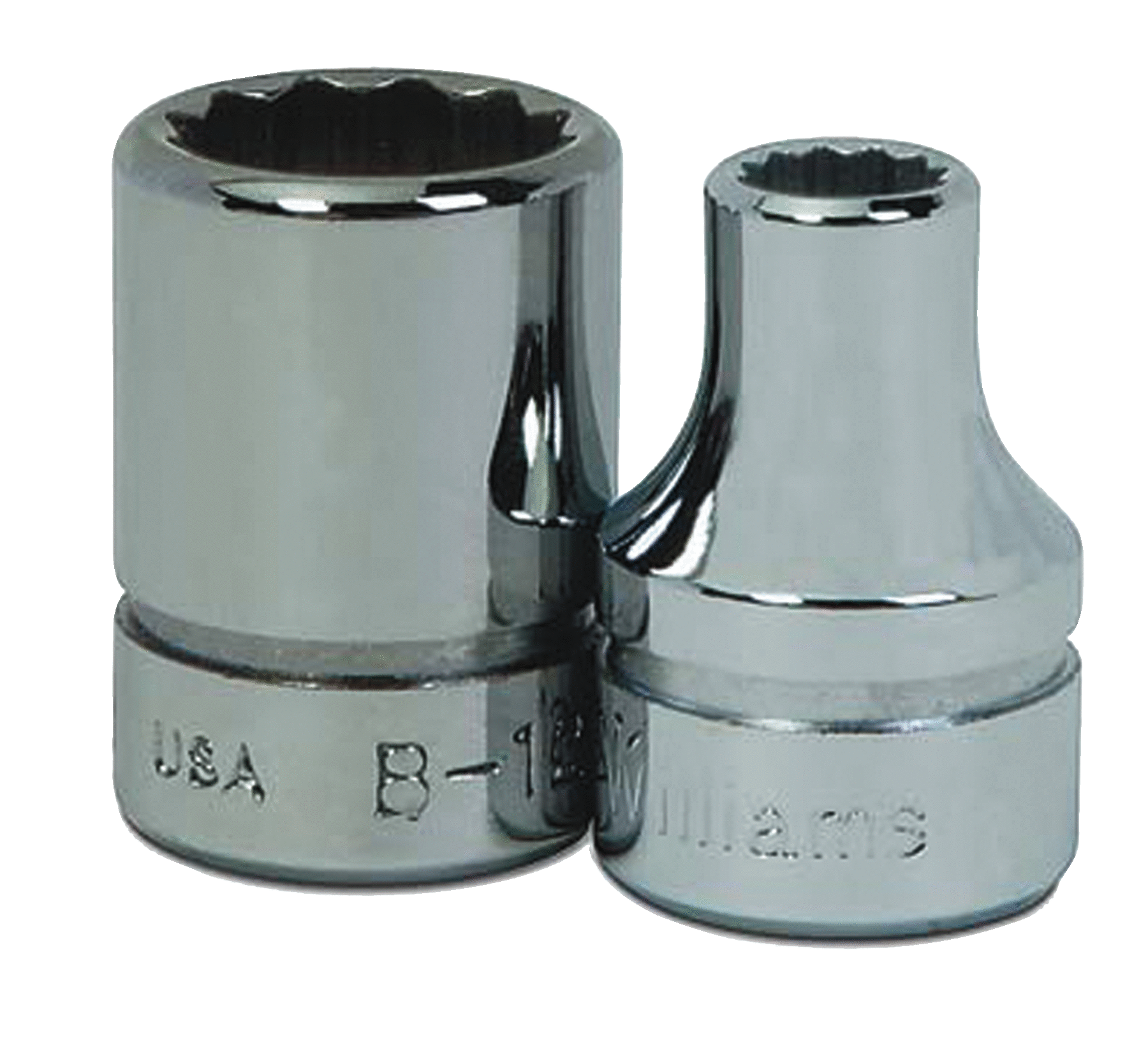

Williams BM-1211 | 3/8 Drive Shallow Socket, High Polished Chrome Finish, 12 Point, 11 mm

Supertorque lobular openings for greater turning power without deforming the fastener

Designed for quick engagement on both 6 and 12 point fasteners

Supertorque lobular openings for greater turning power without deforming the fastener Designed for quick engagement on both 6 and 12 point fasteners

• Supertorque lobular openings for greater turning power without deforming the fastener
• Designed for quick engagement on both 6 and 12 point fasteners
• Size (MM): 11
• OAL (Inches): 1 1/32
• Drive End Diameter (Inches): 11/16
• Working End Diameter (Inches): 5/8
• Broach Depth (Inches): 9/32
• Bolt Clearance Depth (Inches): 9/16
• Bolt Clearance Diameter (Inches): 11/32
• Nose Length (Inches): 17/32






Williams - BM-1211 - Features

• Supertorque lobular openings for greater turning power without deforming the fastener
• Designed for quick engagement on both 6 and 12 point fasteners







Williams - BM-1211 - Specifications

Brand Name	Williams
Order Part Number	JHWBM-1211
Category	Sockets And Accessories
Material	Metal
Length	3/8"
Product Type	Socket - Bit - Multi-Point
Size / Capacity	11.0 mm








Williams - BM-1211 - Technical Details

Male square drive	3/8 in
Dimensions	11-mm
OAL (inches)	11/32 in
Drive End Diameter	11/16 in
Working End Diameter	5/8 in
Broach Depth	9/32 in
Bolt Clearance Depth	9/16 in
Bolt Clearance Diameter (Inches)	11/32 in
Nose Length	17/32 in
Weight (lb)	0,05 lb








Williams - BM-1211 - Documents and Downloads

Williams BM-1211 Specification Sheet	Click to View
Williams BM-1211 Data Sheet	Click to View
