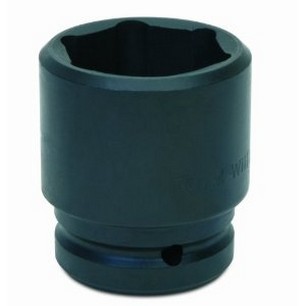

Williams 7M-665 | 1" Drive Shallow Impact Socket 6-Point 65 mm, Black Industrial Finish

Supertorque lobular openings for greater turning power without deforming the fastener

Designed for maximum engagement on 6 point fasteners

Suitable for use with pneumatic and electric impact wrenches

Specially heat treated for impact use to provide long life, safety, and durability

Drive end features pin retention hole and groove

Dual marked with corresponding SAE size

JH Williams 65 millimeter shallow impact socket features the super torque lobular openings for greater turning power without deforming the fastener. This socket is designed for maximum engagement on 6 point fasteners and are suitable for use with pneumatic and electric impact wrenches. It is specially heat treated for impact use to provide long life, safety, and durability. The drive end features pin retention hole and groove and it is dually marked with corresponding standard fractional measurement size. It has a black industrial finish.

• 65 millimeters
• Drive end features pin retention hole and groove
• Designed for quick engagement on 6 point fasteners
• Sockets feature super torque lobular openings for greater turning power without deforming the fastener
• Suitable for use on electric and air impact wrenches






Williams - 7M-665 - Features

• Supertorque lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches







Williams - 7M-665 - Specifications

Brand Name	Williams
Order Part Number	JHW7M-665
Category	Sockets And Accessories
Length	1
Material	Metal
Product Type	Socket - Impact - Torque
Size / Capacity	65mm








Williams - 7M-665 - Technical Details

Male square drive	1 in
Dimensions	65-mm
OAL (inches)	3-5/8 in
Drive End Diameter	2-3/8 in
Working End Diameter	3-5/8 in
Broach Depth	1-5/8 in
Bolt Clearance Depth	2-1/8 in
Bolt Clearance Diameter (Inches)	2-1/4 in
Nose Length	2-5/8 in
Weight (lb)	4,67 lb
