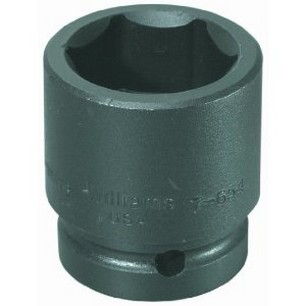

Williams 7-688 | 1" Drive Shallow Impact Socket 6-Point 2-3/4", Black Industrial Finish

Square drive tools and accessories - Square drive tools are designed and manufactured with spring loaded lock buttons. The lock button engages with side lock holes drilled in sockets, extensions, and adaptor sensuring positive retention.

Supertorque lobular openings for greater turning power without deforming the fastener

Designed for maximum engagement on 6 point fasteners

Suitable for use with pneumatic and electric impact wrenches

Specially heat treated for impact use to provide long life, safety, and durability

JH Williams 2 3/4-Inch shallow 6 point impact socket features the super torque lobular openings for greater turning power without deforming the fastener. It is designed for maximum engagement on 6 point fasteners and is suitable for use with pneumatic and electric impact wrenches. This socket is specially heat treated for impact use to provide long life, safety, and durability.

• 2 3/4-Inch
• 6 point and 1-Inch drive
• Specially heat treated for impact use to provide long life, safety, and durability
• Sockets feature super torque lobular openings for greater turning power without deforming the fastener
• Suitable for use on electric and air impact wrenches






Williams - 7-688 - Features

• Supertorque lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches







Williams - 7-688 - Specifications

Brand Name	Williams
Order Part Number	JHW7-688
Drive / Blade	Drive - 1" - Square
Grade	Duty - Heavy
Height / Depth	2.21/32
Length	3.7/8
Material	Steel - Chrome Vanadium
Product Type	Socket - Impact - Hexagon
Size / Capacity	2.3/4
Width / Diameter	6 Point Size








Williams - 7-688 - Technical Details

Male square drive	1 in
Dimensions	2-3/4 in
OAL (inches)	3-7/8 in
Drive End Diameter	2-3/8 in
Working End Diameter	3-3/4 in
Broach Depth	1-13/16 in
Bolt Clearance Depth	2-21/32 in
Bolt Clearance Diameter (Inches)	2-3/4 in
Nose Length	2-7/8 in
Weight (lb)	4,97 lb
