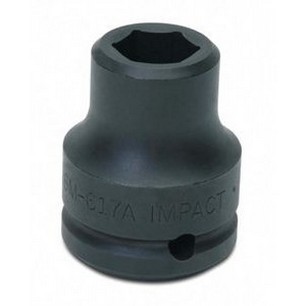

Williams 6M-630 | 3/4" Drive Shallow Impact Socket 6-Point 30M, Black Industrial Finish

Supertorque lobular openings for greater turning power without deforming the fastener

Designed for maximum engagement on 6 point fasteners

Suitable for use with pneumatic and electric impact wrenches

Specially heat treated for impact use to provide long life, safety, and durability

Drive end features pin retention hole and groove

Williams 6M-630 3/4" Dr Standard Impact Socket 6-Pt 30M

• SUPERTORQUE® lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches
• Specially heat treated for impact use to provide long life, safety, and durability
• Drive end features pin retention hole and groove
• Size (MM): 30
• OAL (Inches): 2 3/32
• Drive End Diameter (Inches): 1 5/8
• Working End Diameter (Inches): 1 27/32
• Broach Depth (Inches): 47/64
• Bolt Clearance Depth (Inches): 1 1/8
• Bolt Clearance Diameter (Inches): 47/64
• Nose Length (Inches): 1 13/32
• Uses RET RING® Number: 6-1X
• Use O-Ring / Pin: 6-1A / 6-2B






Williams - 6M-630 - Features

• Supertorque lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches







Williams - 6M-630 - Specifications

Brand Name	Williams
Order Part Number	JHW6M-630
Category	Sockets And Accessories
Material	Metal
Length	3/4"
Product Type	Socket - Bit - Multi-Point
Size / Capacity	30.0 mm








Williams - 6M-630 - Technical Details

Male square drive	3/4 in
Dimensions	30-mm
OAL (inches)	2-3/32 in
Drive End Diameter	1-5/8 in
Working End Diameter	1-27/32 in
Broach Depth	47/64 in
Bolt Clearance Depth	1-1/8 in
Bolt Clearance Diameter (Inches)	47/64 in
Nose Length	1-13/32 in
Weight (lb)	0,95 lb
