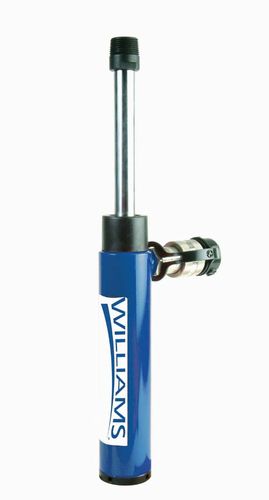

Williams 6CP05T05 | 5T Pull Cylinder 3/8''

High strength steel construction

One piece high grade alloy bearing for side load protection and longer life

Polyurethane cup seal helps provide optimum performance

External plunger threads

Internal base threads

Used for pulling and tensioning

5AS2 offers a turbo function that features high flow at high pressure condition

• High strength steel construction
• One piece high grade alloy bearing for side load protection and longer life
• Polyurethane cup seal helps provide optimum performance
• External plunger threads
• Internal base threads
• Used for pulling and tensioning
• Maximum working pressure: 10,000 psi / 700 bar
• Cylinder Capacity (tons): 5
• Stroke (in): 5.55
• Cylinder Effective Area (in2): 1.14
• Pressure at Capacity (psl): 8,770
• Oil Capacity (in3): 6.34
• Collapsed Height A (in): 11.85
• Extended Height B (in): 17.35
• Outside Diameter D (in): 2.25
• Cylinder Bore Diameter C (in): 1.69
• Top to Intlet Port G (in): 1.50
• Coller Thread H: 2 1/4"-14
• Coller Thread Length L (in): 1

Williams - 6CP05T05 - Features

• High strength steel construction
• One piece high grade alloy bearing for side load protection and longer life
• Polyurethane cup seal helps provide optimum performance
• 5AD15M offers a 4-way control valve for operation of double acting cylinders
• Maximum working pressure: 1, psi / 7 bar

Williams - 6CP05T05 - Specifications

Brand Name	Williams
Order Part Number	JHW6CP05T05
Category	Hydraulic Accessories
Finish-Plating	Paint - Blue
Material/Mech Props	Steel
Product Family	Cylinder - Hydraulic
Product Style / Standard	Cylinder - Special
Product Type	Cylinder
Rohs Compliant	Not Declared

Williams - 6CP05T05 - Technical Details

Cylinder Capacity	5 t,5 t
Length Stroke	5.55 in
Cylinder Effective Area	1.14 in
Pressure at Capacity	8770 psi
Oil Capacity	6.34 in³,6.34 in³
Lenght (in)	11.85 in
Length	17.35 in
Total length (in)	1.69 in
Length	2.25 in
Height	2-1/4"-14 in
Length	1 in

Williams - 6CP05T05 - Documents and Downloads

Williams 6CP05T05 Specification Sheet	Click to View
Williams 6CP05T05 Data Sheet	Click to View
