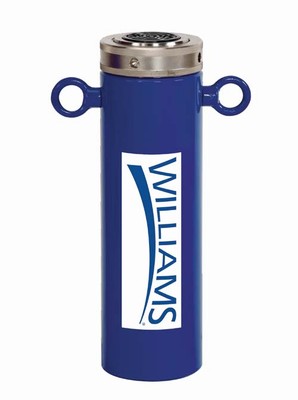

Williams 6CN55T04 | 55T Locking Nut Cylinder 4" Stoke

Single acting cylinder with mechanical safety lock nut

Designed to support load for extended periods without hydraulic pressure

Overflow port prevents cylinders from over travel

Load return

Solid steel cylinder body

Ideal for lifting and holding loads

• Single acting cylinder with mechanical safety lock nut
• Designed to support load for extended periods without hydraulic pressure
• Overflow port prevents cylinders from over travel
• Load return
• Solid steel cylinder body
• Ideal for lifting and holding loads
• Maximum working pressure: 10,000 psi / 700 bar
• Cylinder Capacity (tons): 55
• Stroke (in): 3.94
• Cylinder Effective Area (in2): 10.99
• Oil Capacity (in3): 43.27
• Collapsed Height A (in): 8.4
• Extended Height B (in): 12.4
• Cylinder Bore Diameter C (in): 3.7
• Outside Diameter D (in): 4.9
• Plunger Outside Thread E: Tw95-6N
• Weight lbs: 44.5

Williams - 6CN55T04 - Features

• Single acting cylinder with mechanical safety lock nut
• Designed to support load for extended periods without hydraulic pressure
• Overflow port prevents cylinders from over travel

Williams - 6CN55T04 - Specifications

Brand Name	Williams
Order Part Number	JHW6CN55T04
Category	Hydraulic Accessories
Finish-Plating	Paint - Blue
Material/Mech Props	Steel
Product Family	Cylinder - Hydraulic
Product Style / Standard	Cylinder - Special
Product Type	Cylinder
Rohs Compliant	Not Declared

Williams - 6CN55T04 - Technical Details

Cylinder Capacity	55 t,55 t
Length Stroke	3.94 in
Cylinder Effective Area	10.99 in
Oil Capacity	43.27 in³,43.27 in³
Lenght (in)	8.4 in
Length	12.4 in
Total length (in)	3.7 in
Length	4.9 in
Width	2.8 in
Weight (lb)	44.5 lb
Plunger Outside Thread	Tw95-6N,Tw95-6N

Williams - 6CN55T04 - Documents and Downloads

Williams 6CN55T04 Specification Sheet	Click to View
Williams 6CN55T04 Data Sheet	Click to View
