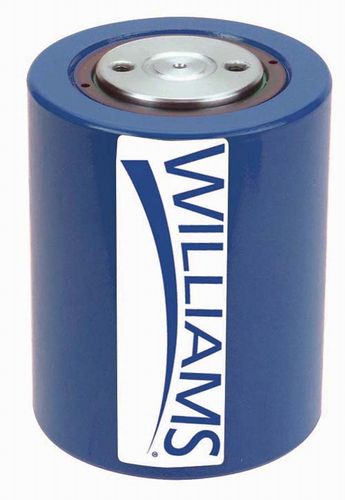

Williams 6CL20T02 | 20T Low Profile Cylinder 3/8

Compact design for use in confined spaces

Rod wiper helps seal out dirt and contamination

Specially designed return spring ensures a quick retraction and extends the life of the spring

Industrial hard chrome plated ram helps prevent scratching and corrosion

Plunger end is grooved to reduce load slippage

Includes high flow ball coupler and dust cap

• Compact design for use in confi ned spaces
• Rod wiper helps seal out dirt and contamination
• Specially designed return spring ensures a quick retraction and extends the life of the spring
• Industrial hard chrome plated ram helps prevent scratching and corrosion
• Plunger end is grooved to reduce load slippage
• Includes high fl ow ball coupler and dust cap
• Coupler is tilted upward for added clearance
• Maximum working pressure: 10,000 psi/700 bar
• Cylinder Capacity (tons): 20
• Stroke (in): 1.75
• Cylinder Effective Area (in2): 4.37
• Internal Pressure at Capacity (psi): 9,153
• Oil Capacity (in3): 7.65
• Collapsed Height A (in): 3.90
• Extended Height B (in): 5.65
• Outside Dia. D (in): 3.63
• Cylinder Bore Dia. C (in): 2.36
• Plunger Dia. E (in): 2.00
• Plunger Mounting Bolt Circle Y (in): 1.56
• Plunger Mounting Thread D (in): M4
• Plunger Mounting Thread Depth D (in): 0.32

Williams - 6CL20T02 - Features

• Compact design for use in confined spaces
• Rod wiper helps seal out dirt and contamination
• Specially designed return spring ensures a quick retraction and extends the life of the spring

Williams - 6CL20T02 - Specifications

Brand Name	Williams
Order Part Number	JHW6CL20T02
Category	Hydraulic Accessories
Finish-Plating	Paint - Blue
Product Family	Cylinder - Hydraulic
Product Style / Standard	Cylinder - Special
Product Type	Cylinder
Rohs Compliant	Not Declared

Williams - 6CL20T02 - Technical Details

Cylinder Capacity	20 t,20 t
Length Stroke	1.75 in
Cylinder Effective Area	4.37 in
Pressure at Capacity	9153 psi
Oil Capacity	7.65 in³,7.65 in³
Lenght (in)	3.9 in
Length	5.65 in
Total length (in)	2.36 in
Length	3.63 in
Length	2 in
Length	1.56 in
