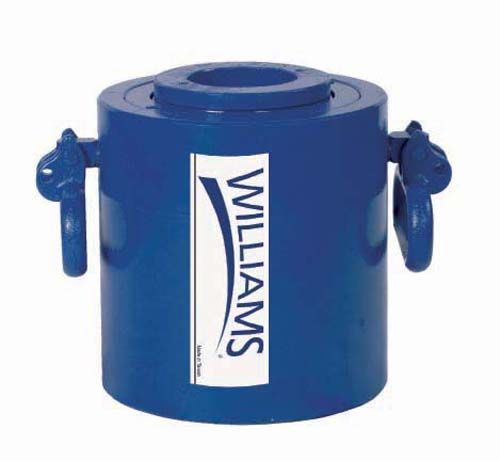

Williams 6CH60T03 | 60T Single Acting Cylinders 3" Stroke

6 standard models

Ideal for some pulling and pushing applications

Heavy duty compression spring

Dual wipers help prevent contamination

Collar thread protector

High flow coupler with dust cap

Easy-to-read window scale

• 6 standard models
• Ideal for some pulling and pushing applications
• Heavy duty compression spring
• Dual wipers help prevent contamination
• Collar thread protector
• High fl ow coupler with dust cap
• Cylinder Capacity (tons): 60
• Stroke (in): 3.00
• Cylinder Effective Area (in2): 14.58
• Pressure at Capacity (psi): 8,230
• Oil Capacity (in3): 43.74
• Min. Height A (in): 8.66
• Max. Height B (in): 11.66
• O.D. D (in): 6.75
• Plunger I.D. C (in): 2.13
• Plunger O.D. E (in): 4.00
• Plunger Internal Thread J (in): 2 3/4"-16
• Collar Thread Dia. H (in): 6 1/4"-12
• Collar Thread Lgth. L (in): 2
• Base to Inlet Port G (in): 1.00

Williams - 6CH60T03 - Features

• 6 standard models
• Ideal for some pulling and pushing applications
• Heavy duty compression spring
• Light weight
• Automatic lock in CCW direction for removing screws
• Accuracy: ± 6% of indicated value, CW, from 2% to 1% of full scale
• Individually serialized with matching certificate of calibration traceable to N.I.S.T
• •?Meets or exceeds ASME B17.3 - 21

Williams - 6CH60T03 - Specifications

Brand Name	Williams
Order Part Number	JHW6CH60T03
Category	Hydraulic Accessories
Finish-Plating	Paint - Blue
Product Family	Cylinder - Hydraulic
Product Style / Standard	Cylinder - Special
Product Type	Cylinder
Rohs Compliant	Not Declared

Williams - 6CH60T03 - Technical Details

Cylinder Capacity	60 t,60 t
Length Stroke	3 in
Cylinder Effective Area	13.05 in
Pressure at Capacity	9195 psi
Oil Capacity	39.1 in³,39.1 in³
Length	6.252 in
Length	1 in
Height	6-1/4-12 in
Length	2 in
Length	2-3/4"-16UN in
Length	0.75 in

Williams - 6CH60T03 - Documents and Downloads

Williams 6CH60T03 Specification Sheet	Click to View
Williams 6CH60T03 Data Sheet	Click to View
