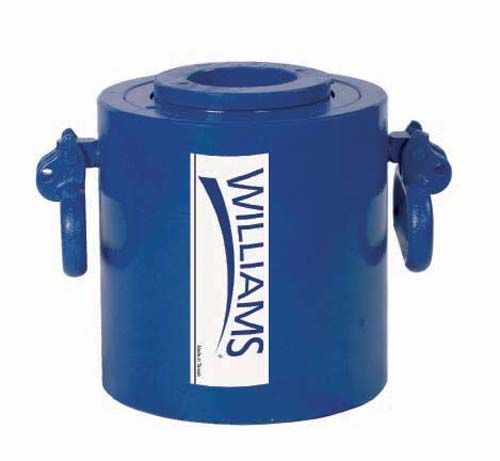

Williams 6CH30T06 | 30T Single Acting Cylinders 6.13" Stroke

6 standard models

Ideal for some pulling and pushing applications

Heavy duty compression spring

Dual wipers help prevent contamination

Collar thread protector

High flow coupler with dust cap

Easy-to-read window scale

• 6 standard models
• Ideal for some pulling and pushing applications
• Heavy duty compression spring
• Dual wipers help prevent contamination
• Collar thread protector
• High fl ow coupler with dust cap
• Cylinder Capacity (tons): 30
• Stroke (in): 6.13
• Cylinder Effective Area (in2): 8.64
• Pressure at Capacity (psi): 6,940
• Oil Capacity (in3): 52.96
• Min. Height A (in): 12.25
• Max. Height B (in): 18.38
• O.D. D (in): 5.00
• Plunger I.D. C (in): 1.31
• Plunger O.D. E (in): 2.50
• Plunger Internal Thread J (in): 1 13/16"-16
• Collar Thread Dia. H (in): 4 1/2"-12
• Collar Thread Lgth. L (in): 1.75
• Base to Inlet Port G (in): 0.81

Williams - 6CH30T06 - Features

• 6 standard models
• Ideal for some pulling and pushing applications
• Heavy duty compression spring
• Light weight
• Automatic lock in CCW direction for removing screws
• Accuracy: ± 6% of indicated value, CW, from 2% to 1% of full scale
• Individually serialized with matching certificate of calibration traceable to N.I.S.T
• •?Meets or exceeds ASME B17.3 - 21

Williams - 6CH30T06 - Specifications

Brand Name	Williams
Order Part Number	JHW6CH30T06
Category	Hydraulic Accessories
Finish-Plating	Paint - Blue
Product Family	Cylinder - Hydraulic
Product Style / Standard	Cylinder - Special
Product Type	Cylinder
Rohs Compliant	Not Declared

Williams - 6CH30T06 - Technical Details

Cylinder Capacity	30 t,30 t
Length Stroke	6.11 in
Cylinder Effective Area	6.32 in
Pressure at Capacity	9488 psi
Oil Capacity	38.67 in³,38.67 in³
Length	4.5 in
Length	0.81 in
Height	4-1/2-12 in
Length	1.75 in
Length	1-13/16"-16UN in
Length	0.87 in

Williams - 6CH30T06 - Documents and Downloads

Williams 6CH30T06 Specification Sheet	Click to View
Williams 6CH30T06 Data Sheet	Click to View
