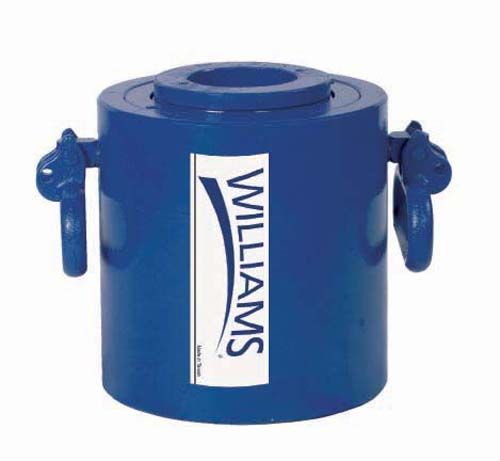

Williams 6CH20T02 | 20T Single Acting Cylinders 2" Stroke

6 standard models

Ideal for some pulling and pushing applications

Heavy duty compression spring

Dual wipers help prevent contamination

Collar thread protector

High flow coupler with dust cap

Easy-to-read window scale

• 6 standard models
• Ideal for some pulling and pushing applications
• Heavy duty compression spring
• Dual wipers help prevent contamination
• Collar thread protector
• High fl ow coupler with dust cap
• Cylinder Capacity (tons): 20
• Stroke (in): 2.00
• Cylinder Effective Area (in2): 5.3
• Pressure at Capacity (psi): 7,550
• Oil Capacity (in3): 10.60
• Min. Height A (in): 6.19
• Max. Height B (in): 8.19
• O.D. D (in): 4.00
• Plunger I.D. C (in): 1.06
• Plunger O.D. E (in): 2.13
• Plunger Internal Thread J (in): 1 9/16"-16
• Collar Thread Dia. H (in): 3 7/8"-16
• Collar Thread Lgth. L (in): 1.5
• Base to Inlet Port G (in): 0.80

Williams - 6CH20T02 - Features

• 6 standard models
• Ideal for some pulling and pushing applications
• Heavy duty compression spring
• Light weight
• Automatic lock in CCW direction for removing screws
• Accuracy: ± 6% of indicated value, CW, from 2% to 1% of full scale
• Individually serialized with matching certificate of calibration traceable to N.I.S.T
• •?Meets or exceeds ASME B17.3 - 21

Williams - 6CH20T02 - Specifications

Brand Name	Williams
Order Part Number	JHW6CH20T02
Category	Hydraulic Accessories
Finish-Plating	Paint - Blue
Product Family	Cylinder - Hydraulic
Product Style / Standard	Cylinder - Special
Product Type	Cylinder
Rohs Compliant	Not Declared

Williams - 6CH20T02 - Technical Details

Cylinder Capacity	20 t,20 t
Length Stroke	2.01 in
Cylinder Effective Area	4.9 in
Pressure at Capacity	8167 psi
Oil Capacity	9.83 in³,9.83 in³
Length	3.92 in
Length	0.75 in
Height	3-7/8-12 in
Length	1.5 in
Length	1-9/16"-16UN in
Length	0.75 in

Williams - 6CH20T02 - Documents and Downloads

Williams 6CH20T02 Specification Sheet	Click to View
Williams 6CH20T02 Data Sheet	Click to View
