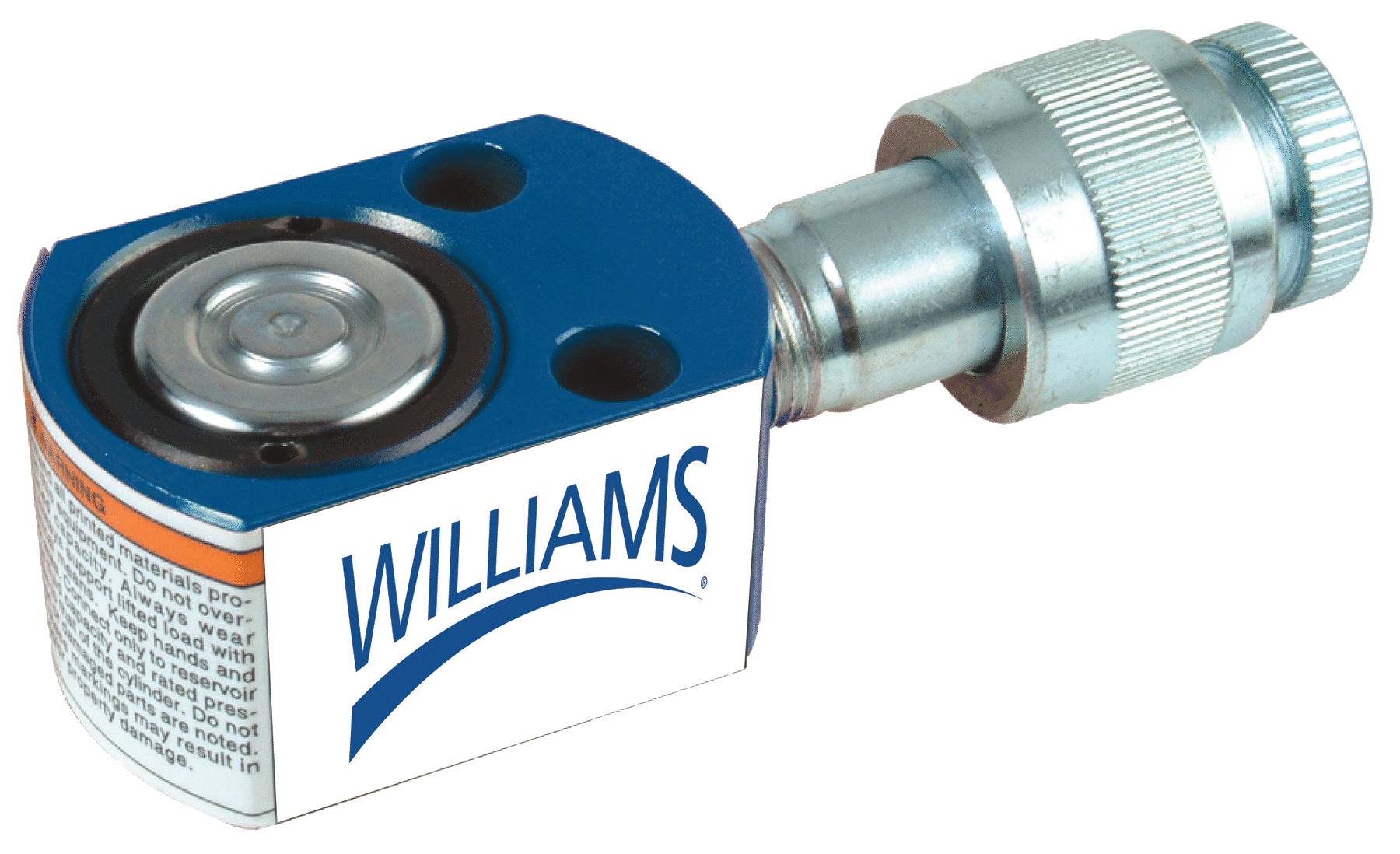

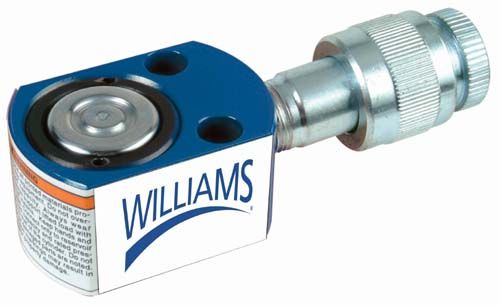

Williams 6CF05T03 | 5T Flat Body Cylinders 3/8''

Made of high quality steel

Extremely low collapsed height for applications with minimal clearance at the lift point

Great for areas of low clearance

Maximum working pressure 1, psi / 7 bar

Flextensions are designed for use on hand and power tools (Impulse or Direct drive); NOT FOR IMPACT TOOL USE

Maximum working torque values: 16 Ft. Lbs. /192 In. Lbs. /217 Nm

Other lengths and socket sizes available by special order. Contact your Williams representative

• Made of high quality steel
• Extremely low collapsed height for applications with minimal clearance at the lift point
• Great for areas of low clearance
• Maximum working pressure: 10,000 psi / 700 bar
• Cylinder Capacity (tons): 5
• Stroke (in): 0.24
• Cylinder Effective Area (in2): 1.10
• Internal Pressure at Capacity (psi): 9.090
• Oil Capacity (in3): 0.26
• Collapsed Height A (in): 1.26
• Extended Height B (in): 1.5
• Outside Dim. D1 x D2(in): 2.4 x 1.6
• Cylinder Bore Dia. C (in): 1.18
• Plunger Dia. E (in): 0.98
• Base to Port G (in): 0.69
• Plunger to Base L (in): 0.80
• Plunger to Mtg. Hole M (in): 0.87

Williams - 6CF05T03 - Features

• Made of high quality steel
• Extremely low collapsed height for applications with minimal clearance at the lift point
• Great for areas of low clearance

Williams - 6CF05T03 - Specifications

Brand Name	Williams
Order Part Number	JHW6CF05T03
Category	Hydraulic Accessories
Finish-Plating	Paint - Blue
Material/Mech Props	Steel
Product Family	Cylinder - Hydraulic
Product Style / Standard	Cylinder - Special
Product Type	Cylinder
Rohs Compliant	Not Declared

Williams - 6CF05T03 - Technical Details

Cylinder Capacity	5 t,5 t
Length Stroke	0.24 in
Cylinder Effective Area	1.10 in
Pressure at Capacity	9090 psi
Oil Capacity	0.26 in³,0.26 in³
Lenght (in)	1.26 in
Length	1.5 in
Total length (in)	1.18 in
Length	2.4x1.6 in
Length	0.98 in
Length	0.69 in

Williams - 6CF05T03 - Documents and Downloads

Williams 6CF05T03 Specification Sheet	Click to View
Williams 6CF05T03 Data Sheet	Click to View
