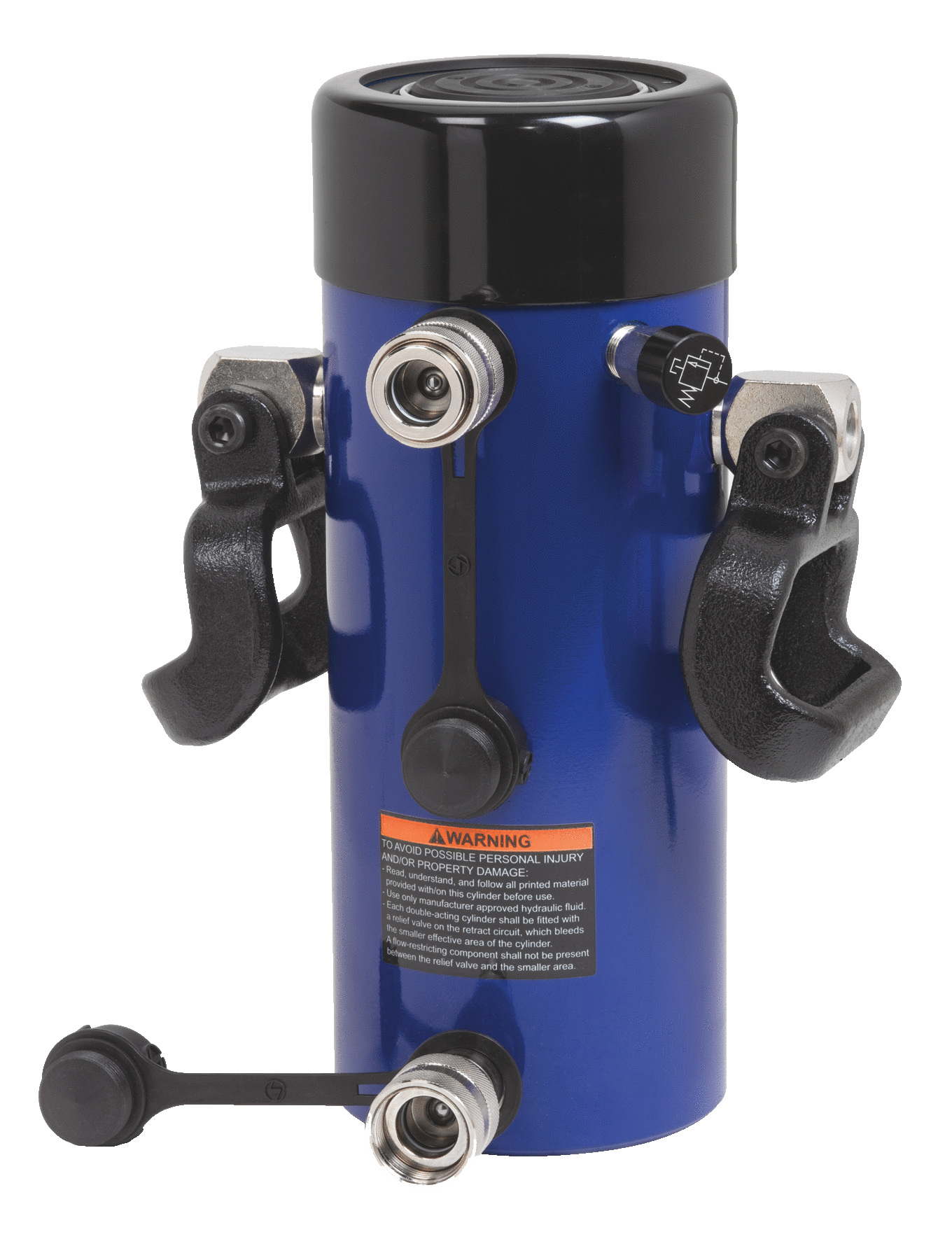

Williams 6CD30T15 | 30T Double-Act Cylinder 14" Stoke

Rod wiper seals out dirt and contamination

High strength steel construction from gun drilled solid bar

High flow 3/8" NPTF couplers

One piece high grade alloy bearing for side load protection and long life

Ideal for pushing and pulling

Maximum working pressure: 1, psi / 7 bar

• Rod wiper seals out dirt and contamination
• High strength steel construction from gun drilled solid bar
• High flow 3/8 NPTF couplers
• One piece high grade alloy bearing for side load protection and long life
• Ideal for pushing and pulling
• Maximum working pressure: 10,000 psi / 700 bar
• Cylinder Capacity (tons): 30
• Stroke (in): 14.49
• Maximum Cylinder Capacity: Push (ton)- 32.9, Pull (ton)- 16.2
• Cylinder Effective Area: Push (in2)- 6.49, Pull (in2)- 3.19
• Oil Capacity: Push (in3)- 94.09, Pull (in3)- 46.26
• Collapsed Height A (in): 21.65
• Extended Height B (in): 36.14
• Cylinder Bore Dia. C (in): 2.87
• Outside Dia. D (in): 3.98
• Weight: 60.6

Williams - 6CD30T15 - Features

• Rod wiper seals out dirt and contamination
• High strength steel construction from gun drilled solid bar
• High flow 3/8" NPTF couplers

Williams - 6CD30T15 - Specifications

Brand Name	Williams
Order Part Number	JHW6CD30T15
Category	Hydraulic Accessories
Finish-Plating	Paint - Blue
Material/Mech Props	Steel
Product Family	Cylinder - Hydraulic
Product Style / Standard	Cylinder - Special
Product Type	Cylinder
Rohs Compliant	Not Declared

Williams - 6CD30T15 - Technical Details

Cylinder Capacity	30 t,30 t
Length Stroke	14.49 in
Lenght (in)	21.65 in
Length	36.14 in
Total length (in)	2.87 in
Length	3.98 in
Length	2.13 in
Width	1.97 in
Length	1.65 in
Height	2.91 in
Length	3-5/16-12 in

Williams - 6CD30T15 - Documents and Downloads

Williams 6CD30T15 Specification Sheet	Click to View
Williams 6CD30T15 Data Sheet	Click to View
