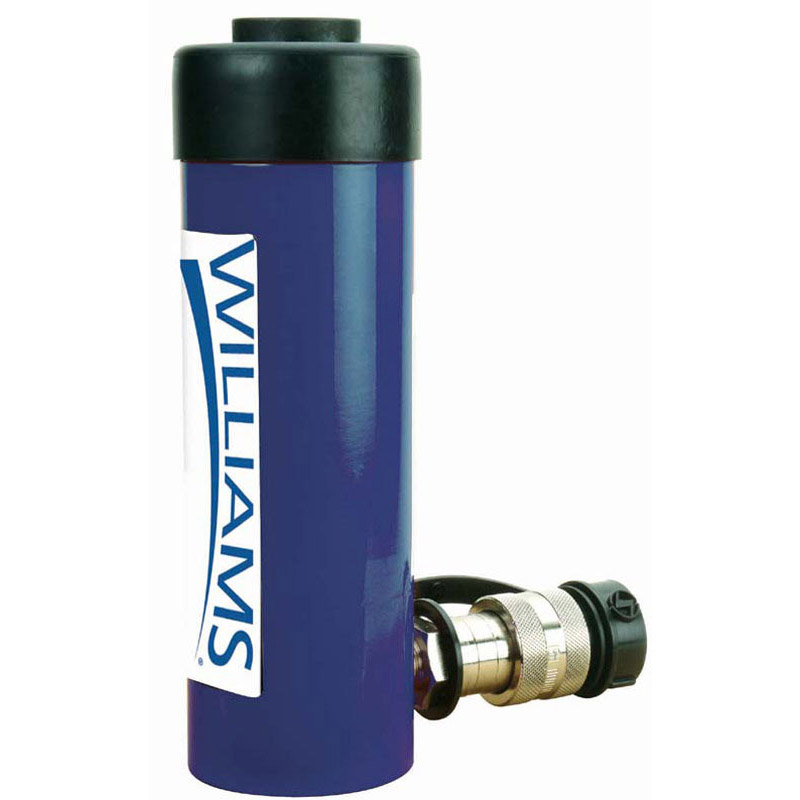

Williams 6C15T02 | 15T Single Acting Cylinders 2'' Stroke 3/8''

39 models

Internal plunger threads

Snap in grooved saddles

Rod wiper seals out dirt and contamination

Collar fixture threads

Two base mounting holes on most models

Our most rugged, high torque capacity ratchet

Williams 6C15T02 15T Single Acting Cylinder 2''F

• Cylinder Capacity (tons): 15
• Stroke (in): 2.01
• Cylinder Effective Area (in2): 3.14
• Pressure at Capacity (psi): 9,550
• Oil Capacity (in3): 6.31
• Collapsed Height A (in): 5.87
• Extended Height B (in): 7.88
• Cylinder Bore Dia. C (in): 2.00
• Outside Dia. D (in): 2.75
• Plunger Dia. E (in): 1.63
• Saddle Dia. F (in): 1.50
• Base to Inlet Port G (in): 0.98







Williams - 6C15T02 - Specifications

Brand Name	Williams
Order Part Number	JHW6C15T02
Category	Pneumatic Accessories
Finish-Plating	Chrome
Material/Mech Props	Steel
Product Family	Air Prep - Accessory
Product Style / Standard	Cylinder - Standard
Product Type	Cylinder
Rohs Compliant	Not Declared








Williams - 6C15T02 - Technical Details

Cylinder Capacity	15 t,15 t
Length Stroke	2.01 in
Cylinder Effective Area	3.14 in
Pressure at Capacity	9550 psi
Oil Capacity	6.31 in³,6.31 in³
Lenght (in)	5.87 in
Length	7.88 in
Total length (in)	2 in
Length	2.75 in
Length	1.63 in
Width	1.5 in








Williams - 6C15T02 - Documents and Downloads

Williams 6C15T02 Specification Sheet	Click to View
Williams 6C15T02 Data Sheet	Click to View
