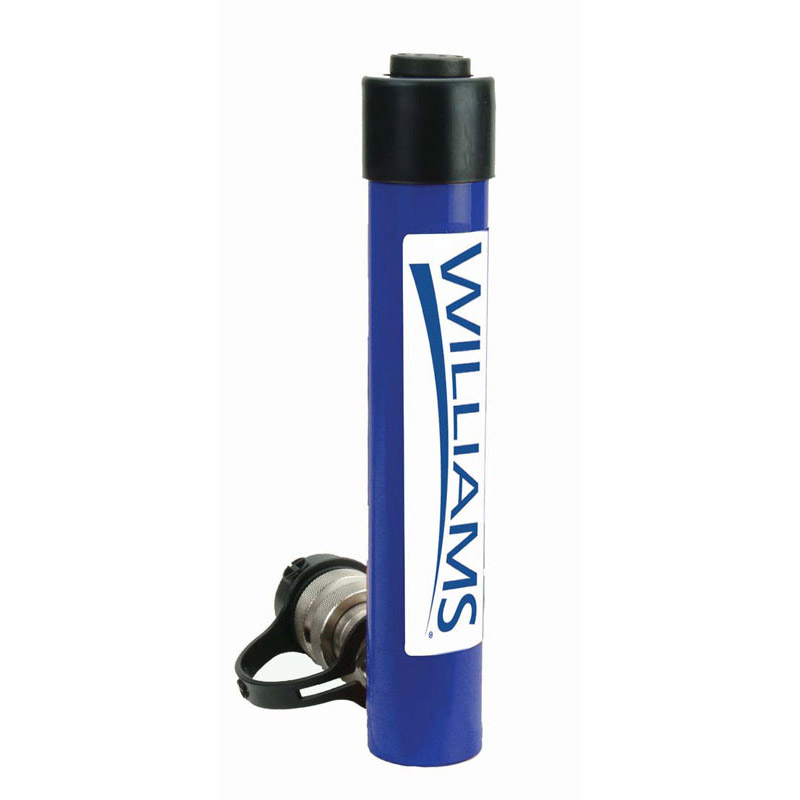

Williams 6C05T05 | 5T Single Acting Cylinders 5'' Stroke 3/8''

39 models

Internal plunger threads

Snap in grooved saddles

Rod wiper seals out dirt and contamination

Collar fixture threads

Two base mounting holes on most models

Our most rugged, high torque capacity ratchet

Williams 6C05T05 5T Single Acting Cylinder 5''

• 39 Models
• Internal plunger threads
• Snap in grooved saddles
• Rod wiper seals out dirt and contamination
• Collar fixture threads
• Two base mounting holes on most models
• High strength steel construction from gun drilled solid bar
• High follow 3/8" NPTF couplers
• Collar thread protector
• One piece high grade alloy bearing for side load protection and long life
• Polyurethane cup seal provides for optimum performance
• Industrial hard chrome plated ram helps prevent rust and corrosion
• Solid steel cylinder body
• Heavy duty return spring provides quicker retraction
• Ideal for lifting and pressing
• Maximum working pressure: 10,000 psi / 700 bar
• Cylinder Capacity (tons): 5
• Stroke (in): 5.08
• Cylinder Effective Area (in2): 1.00
• Pressure at Capacity (psi): 10.000
• Oil Capacity (in3): 5.08
• Collapsed Height A (in): 8.70
• Extended Height B (in): 59.50
• Cylinder Bore Dia. C (in): 1.13
• Outside Dia. D (in): 1.50
• Plunger Dia. E (in): 1.00
• Saddle Dia. F (in): 0.98






Williams - 6C05T05 - Features

• 39 models
• Internal plunger threads
• Snap in grooved saddles







Williams - 6C05T05 - Specifications

Brand Name	Williams
Order Part Number	JHW6C05T05
Category	Pneumatic Accessories
Finish-Plating	Chrome
Material/Mech Props	Steel
Product Family	Air Prep - Accessory
Product Style / Standard	Cylinder - Standard
Product Type	Cylinder
Rohs Compliant	Not Declared








Williams - 6C05T05 - Technical Details

Cylinder Capacity	5 t,5 t
Length Stroke	5.08 in
Cylinder Effective Area	1.00 in
Pressure at Capacity	10000 psi
Oil Capacity	5.08 in³,5.08 in³
Lenght (in)	8.7 in
Length	59.5 in
Total length (in)	1.13 in
Length	1.5 in
Length	1 in
Width	0.98 in








Williams - 6C05T05 - Documents and Downloads

Williams 6C05T05 Specification Sheet	Click to View
Williams 6C05T05 Data Sheet	Click to View
