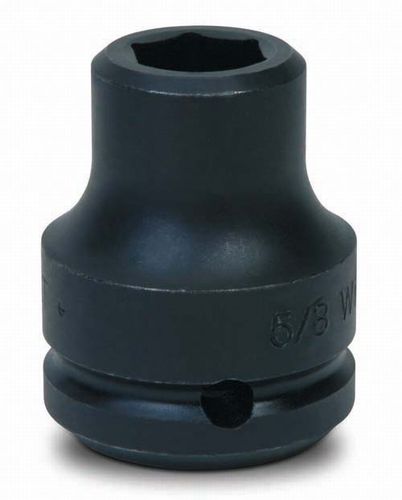

Williams 6-624A | 3/4" Drive Shallow Impact Socket 6-Point 3/4", Black Industrial Finish

Supertorque lobular openings for greater turning power without deforming the fastener

Designed for maximum engagement on 6 point fasteners

Suitable for use with pneumatic and electric impact wrenches

Specially heat treated for impact use to provide long life, safety, and durability

• SUPERTORQUE® lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches
• Specially heat treated for impact use to provide long life, safety, and durability
• Size (Inches): 3/4
• OAL (Inches): 2
• Drive End Diameter (Inches): 1 5/8
• Working End Diameter (Inches): 1 1/4
• Broach Depth (Inches): 17/32
• Bolt Clearance Depth (Inches): 1 1/32
• Bolt Clearance Diameter (Inches): 11/16
• Nose Length (Inches): 1
• Uses RET RING® Number: 6-1X
• Use O-Ring / Pin: 6-1A / 6-2B

Williams - 6-624A - Features

• Supertorque lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches

Williams - 6-624A - Specifications

Brand Name	Williams
Order Part Number	JHW6-624A
Category	Sockets And Accessories
Material	Metal
Length	3/4"
Product Type	Socket - Bit - Multi-Point
Size / Capacity	3/4"

Williams - 6-624A - Technical Details

Male square drive	3/4 in
Dimensions	3/4 in
OAL (inches)	2 in
Drive End Diameter	1-5/8 in
Working End Diameter	1-1/4 in
Broach Depth	17/32 in
Bolt Clearance Depth	1-1/32 in
Bolt Clearance Diameter (Inches)	11/16 in
Nose Length	1 in
Weight (lb)	0,2 lb

Williams - 6-624A - Documents and Downloads

Williams 6-624A Specification Sheet	Click to View
Williams 6-624A Data Sheet	Click to View
