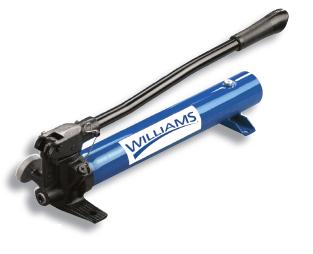

Williams 5HS1S60 | Single Cut Speed Heavy Duty H& Pump

5HS2S35, 5HS2S100 and 5HS2S200 feature 2 speed operation

Pressure relief valve for overload protection

Load release valve for single acting cylinder usage

Large oil capacities to power a wide range of cylinders and tools

5HS2S35 and 5HS2S1 are constructed of high strength lightweight aluminum alloy for easy handling and corrosion resistance

All hand pumps function in horizontal positions and will also function in some vertical positions

• Pressure relief valve for overload protection
• Load release valve for single acting cylinder usage
• Large oil capacities to power a wide range of cylinders and tools
• All hand pumps function in horizontal positions and will also function in some vertical positions
• Maximum working pressure: 10,000 psi / 700 bar
• Pump Type: Single-speed
• Usable Oil Capacity (in3): 36.5
• Oil Displacement per Stroke (in3): 2nd Stage - 0.15
• Max. Operating Force (lbs): 109
• Piston (psi) (in3) Stroke (in): 0.79
• Oil Outlet Port: 3/8"-18NPTF

Williams - 5HS1S60 - Features

• 5HS2S35, 5HS2S100 and 5HS2S200 feature 2 speed operation
• Pressure relief valve for overload protection
• Load release valve for single acting cylinder usage

Williams - 5HS1S60 - Specifications

Brand Name	Williams
Order Part Number	JHW5HS1S60
Category	Hydraulic Accessories
Finish-Plating	Paint - Blue
Material/Mech Props	Aluminum - Alloy
Product Family	Air Prep - Accessory
Product Style / Standard	Cylinder - Accessory
Product Type	A/Prep - Regulator - Pressure
Rohs Compliant	Not Declared

Williams - 5HS1S60 - Technical Details

Oil Capacity	36.5 in³,36.5 in³
Pressure Rating	10.000 psi
Oil Displacement per Stroke	0.15 in³,0.15 in³
Max. Operating Force	109 lb
Piston Stroke	0.79 in
Oil Outlet Port	3/8"-18NPTF mm
Lenght (in)	18.94 in
Length	6.46 in
Total length (in)	19.53 in

Williams - 5HS1S60 - Documents and Downloads

Williams 5HS1S60 Specification Sheet	Click to View
Williams 5HS1S60 Data Sheet	Click to View
