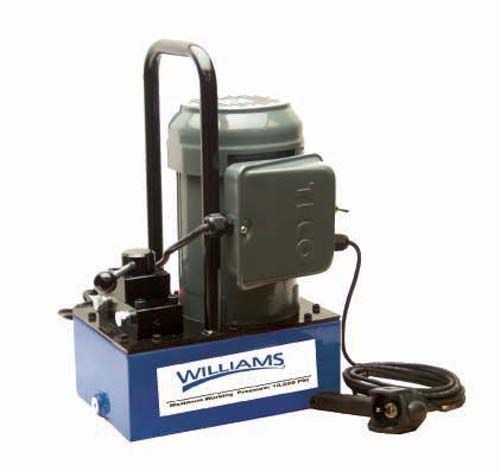

Williams 5E15H3GR | 1.5 H.P. 3 Gallon / Electric Pump with Pendant Switch

Quiet operation meets OSHA regulations (80dBA)

2 speed operation allows for faster cylinder advance

Full load starting capacities

Internal filter keeps contamination from damaging pump

1 foot hand held remote control allows user to control cylinder in up or down positionMay be used with air or electric impact wrench for extra speed and turning power

• Quiet operation meets OSHA regulations (80dBA)
• 2 speed operation allows for faster cylinder advance
• Full load starting capacities
• Internal filter keeps contamination from damaging pump
• Rugged durable design meets the demands of industrial applications
• Precision components to minimize wear and improve overall dependability
• Designed to minimize the number of moving parts and maximize overall pump efficiency
• Ideal for on site construction as well as maintenance
• Motor Size: 1.5
• Usable Oil Capacity: 3.0
• Max. Output Pressure: 10,000
• Oil Output Flow Rate: 1st Level Stage - 470, 2nd Stage - 61
• Valve Type: 4-way, 3-pos.
• Valve Function: Advance Hold Return
• Current Draw (amps): 17
• Motor Voltage (volts): 115
• Sound 1st Level (dBA): 80

Williams - 5E15H3GR - Features

• Quiet operation meets OSHA regulations (80dBA)
• 2 speed operation allows for faster cylinder advance
• Full load starting capacities

Williams - 5E15H3GR - Specifications

Brand Name	Williams
Order Part Number	JHW5E15H3GR
Category	Hydraulic Accessories
Finish-Plating	Paint - Blue
Product Family	Air Prep - Accessory
Product Style / Standard	Cylinder - Accessory
Product Type	A/Prep - Regulator - Pressure
Rohs Compliant	Not Declared

Williams - 5E15H3GR - Technical Details

Weight (lb)	88.5 lb
Pressure Rating	700 psi
Pressure Rating	10.000 psi
Lenght (in)	16.65 in
Length	12.01 in
Total length (in)	19.72 in
Length	7.24 in
Length	8.19 in
Width	10.51 in
Length	4.53 in
Height	12.36 in
