Williams 5AS380 | 10,000 Psi Air Pump 231 Cu

High strength reinforced aluminum alloy reservoir is lightweight and corrosion resistant

Pressure relief valve for overload protection

Suggested air pressure range: 90-175 psi / 6-12 bar

Designed to be used with single acting cylinders

Dust cover protection for the release control valve

Dual stage release control valve

• High strength reinforced aluminum alloy reservoir is lightweight and corrosion resistant
• Pressure relief valve for overload protection
• Suggested air pressure range: 90 – 175 psi / 6 – 12 bar
• Designed to be used with single acting cylinders
• Dust cover protection for the release control valve
• Dual stage release control valve
• 5AS200 offers a turbo function that features high fl ow at high pressure condition
• 5AD150M offers a 4-way control valve for operation of double acting cylinders
• Maximum working pressure: 10,000 psi / 700 bar

Williams - 5AS380 - Features

• High strength reinforced aluminum alloy reservoir is lightweight and corrosion resistant
• Pressure relief valve for overload protection
• Suggested air pressure range: 90-175 psi / 6-12 bar

Williams - 5AS380 - Specifications

Brand Name	Williams
Order Part Number	JHW5AS380
Category	Pneumatic Accessories
Finish-Plating	Paint - Blue
Material/Mech Props	Aluminum - Alloy
Product Family	Air Prep - Accessory
Product Style / Standard	Cylinder - Accessory
Product Type	A/Prep - Regulator - Pressure
Rohs Compliant	Not Declared

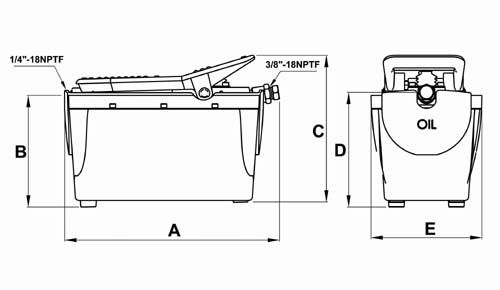

Williams - 5AS380 - Technical Details

Pressure at Capacity	10000 psi
Oil Capacity	231.9 in³,231.9 in³
Lenght (in)	12.64 in
Length	5.08 in
Total length (in)	7.36 in
Length	5.24 in
Length	7.36 in
Oil Output Flow Rate	65 in³/min
Oil Output Flow Rate	11 in³/min
Input Air Pressure Range	100-200 psi

Williams - 5AS380 - Documents and Downloads

Williams 5AS380 Specification Sheet	Click to View
Williams 5AS380 Data Sheet	Click to View
